Fab Fours Elite Ranch Winch Tray (Black) – RWinch-1

Fab Fours

$182.48In stock
Buy on Amazon

See similar parts on Amazon

Price and availability as of Nov 18, 2026 12:40 AM MST, from Amazon.com, and subject to change. The Amazon listing has the current details.

Check out with your Amazon account. Amazon handles delivery and returns.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • Fab Fours Elite Ranch winch tray, part number RWINCH-1, black steel
  • Universal to ELITE 1/2 ton bumpers
  • Accepts up to 12,000 lb winch, pre-drilled for WARN remote relocation kit

Description

Overview

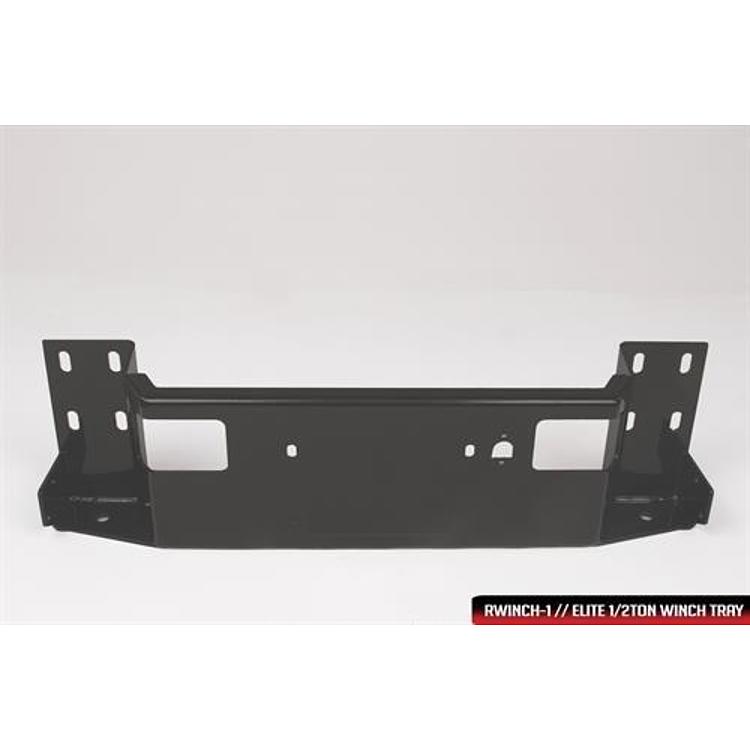

The Fab Fours Elite Ranch Winch Tray (part number RWINCH-1) is a black steel ELITE optional bolt-on winch tray, universal to all ELITE 1/2 ton bumpers.

It accepts a winch up to 12,000 lb or smaller and is built from 1/2-inch and 1/4-inch plate steel. It is pre-drilled for the WARN winch remote relocation kit (WARN part 14867).

Key features

  • Accepts up to a 12,000 lb winch or smaller
  • Built from 1/2-inch and 1/4-inch plate steel
  • Pre-drilled for WARN winch remote relocation kit
  • Universal to ELITE 1/2 ton bumpers
  • Black finish, not an OE bumper item

Remote winch control setup

A remote relocation kit moves the winch control switch away from the winch so you can operate it from a safer spot during a pull. Mounting the switch inside the cab or near the front of the rig keeps you out of the cable’s path, which matters when a line is under load.

Before running the cable, check the wiring route, the connectors and the solenoid location. Wiring should be routed away from hot exhaust parts, moving suspension parts and sharp edges, and secured with clips so it cannot chafe. Keep the battery terminals clean, because weak power is a common cause of slow winch response.

Winch remote kits are easy to overlook after a recovery. Check the switch housing for water intrusion, look for frayed cable insulation and confirm the control still works before the next trail day. Replacing a damaged switch is usually cheaper than repairing wiring that fails at the wrong time.

  • Route wiring away from heat and moving parts
  • Secure cable with clips to prevent chafing
  • Clean battery terminals and connectors
  • Test the remote before every trip

Specifications

Brand Fab Fours
Part number RWINCH-1
Type Optional bolt-on winch tray, ELITE
Material 1/2-inch and 1/4-inch plate steel, black steel
Finish Black
Winch capacity Up to 12,000 lb or smaller
Bumper compatibility ELITE 1/2 ton bumpers
OE bumper Not OE bumper
Remote kit Pre-drilled for WARN winch remote relocation kit, part 14867

Vehicle fitment

No vehicle year, make or model is named. The tray is matched to ELITE 1/2 ton bumpers, so check your bumper’s line and rating before fitting.

Installation notes

The tray bolts on and is pre-drilled for the WARN remote relocation kit. Check that the kit, part 14867, matches your setup before mounting.

What’s included

The winch tray only.

Not included: winch, bumper and WARN winch remote relocation kit (part 14867).

SKU: FFIRWINCH-1 Category:

Specification

Shipping weight 21.00 lbs
Package dimensions 41.00 × 12.00 × 12.00 in
brands

Questions & Answers

Which bumpers does the RWINCH-1 tray fit?

It is universal to ELITE 1/2 ton bumpers. Confirm your bumper is an ELITE 1/2 ton model and check its line and rating before installing the tray, since fit depends on that bumper.

What size winch does the RWINCH-1 accept?

Up to a 12,000 lb winch or smaller. The tray is made from 1/2-inch and 1/4-inch plate steel and is pre-drilled for the WARN winch remote relocation kit.

Is the WARN remote kit included?

No. The tray is pre-drilled for the WARN winch remote relocation kit part 14867, but that kit is not part of this item. Plan to buy the kit separately if you want remote winch control.

Can I install the relocation kit myself?

Usually, yes, if you are comfortable with basic automotive wiring and have the correct tools. Disconnect the battery before working on the wiring, and follow the kit's steps for fusing and routing. If unsure, have a qualified installer check the work before first use.
