Dynatrac Dana 30 Pro Series Iron Cover – DA30-1X4033-B

Dynatrac

Shop Dynatrac Differential Covers on Amazon

Compare current versions and compatible options on Amazon, then check out with your Amazon account.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • Dynatrac DA30-1X4033-B Pro Series front differential cover for Dana 30 axles
  • Nodular iron construction with a powder-coated finish
  • Lists Dana 30 Reverse, Dana 30 TJ, Dana 30 Standard and Dana 30 JK axle types
  • Universal fit label; no vehicle years named
  • UPC 70000366336

Description

Overview

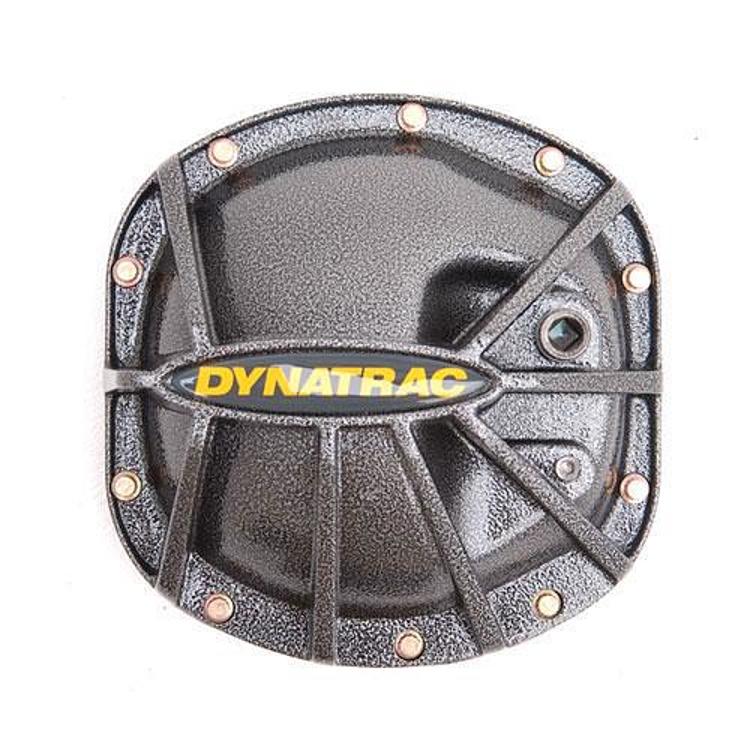

The Dynatrac DA30-1X4033-B is a Pro Series iron differential cover for Dana 30 front axles. Dynatrac casts it from its own nodular iron to protect the differential housing and give the undercarriage a more finished look.

It fits Dana 30 Reverse, Dana 30 TJ, Dana 30 Standard and Dana 30 JK front axles. The cover has a powder-coated finish and a standard oil capacity setting.

Key features

  • Cast from Dynatrac’s proprietary nodular iron
  • Powder-coated finish
  • Mounts at the front axle location.
  • Lists Dana 30 Reverse, TJ, Standard and JK axle types
  • Standard oil capacity

Front axle protection in use

The front differential sits low and close to the steering linkage, so a cover that resists impacts helps protect the gears from stones and debris. Nodular iron adds rigidity to the housing, and a powder-coated finish resists chipping on the trail. Front covers also need clearance from tie rods and the track bar when the suspension cycles.

Before installing, clean the mating surface and check for nicks that could leak. Use a new gasket, tighten bolts evenly, and recheck them after the first few drives. If the old cover shows cracks, dents that sit against the gears, or a warped flange, replace it instead of patching it.

  • Check clearance to steering components when the suspension flexes
  • Replace the gasket each time the cover comes off
  • Recheck bolts after the first few drives
  • Refill gear oil to the level your axle requires

Specifications

Brand Dynatrac
Part number DA30-1X4033-B
UPC 70000366336
Material Iron (nodular)
Finish Powder coated
Axle location Front
Axle manufacturer Dana
Axle types Dana 30 Reverse, Dana 30 TJ, Dana 30 Standard, Dana 30 JK
Oil capacity Standard capacity
Fitment Universal fit

Vehicle fitment

It fits the Dana 30 axle types named above and is not tied to a single model year. Confirm the axle type on your housing matches one of those types, and confirm fit for your vehicle’s year, model and trim.

Confirm your vehicle’s year, model and trim before ordering.

What’s included

The cover is the item this part number covers. Check the package contents against your installation before starting, including any gasket, bolts or fill plugs.

SKU: DPCDA30-1X4033-B Category:

Specification

Shipping weight 9.00 lbs
Package dimensions 14.00 × 14.00 × 5.00 in
brands

Questions & Answers

Which axles does the Dynatrac DA30-1X4033-B cover?

It fits Dana 30 Reverse, Dana 30 TJ, Dana 30 Standard and Dana 30 JK front axles. Match the axle type on your housing, and confirm fit for your vehicle's year, model and trim before buying.

What is the DA30-1X4033-B made from?

It is made from Dynatrac's proprietary nodular iron with a powder-coated finish, which helps protect the differential housing from trail hits.

Does this cover come with gaskets or bolts?

Confirm the contents on arrival. Check the package for a gasket, bolts or plugs before starting, since those items cannot be assumed to be in the box.

Can I add a skid plate or other protection to the front axle?

Yes, many owners pair a cover with other protection, but check clearance first. Mount any additional guard so it does not press on the cover or the steering parts. Recheck bolts and clearance after the first trail trips.
