Overview

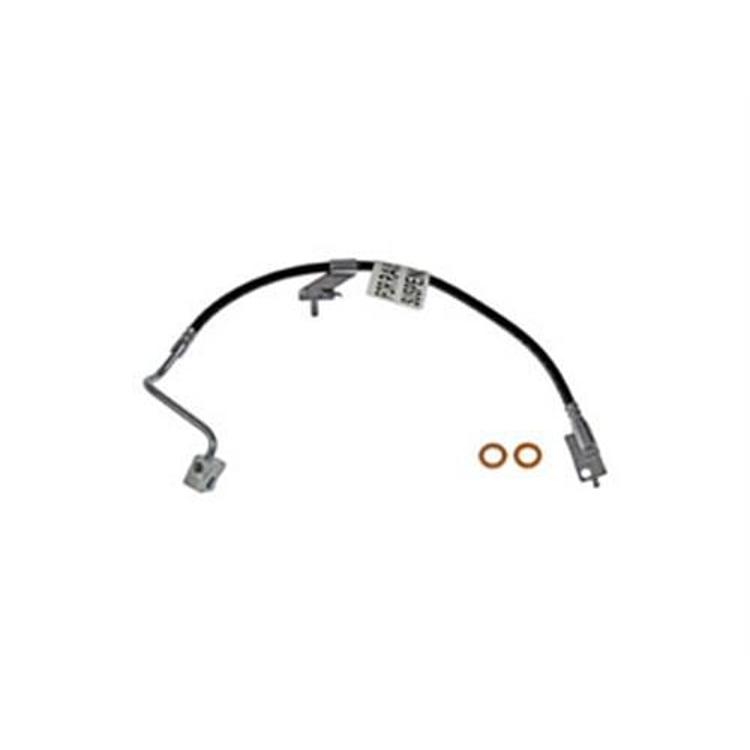

The Dorman H622071 is a hydraulic rear center brake hose for the 2004–2006 Jeep Wrangler (LJ) and the 1999–2006 Wrangler (TJ). It has a junction at one end and adds 4 inch of length for raised suspensions.
Key features
- Rear center position
- Junction end with two 3/8 inch-24 connections
- 4 inch added length for raised suspensions
- Stamped steel bracket
- Primary segment 20.39 inch, total length 23.39 inch
- Tested for up to 4,000 PSI
- Brake hose and gaskets included
Rear brake junction care
A junction hose splits one line into two, so both rear brake circuits share a single supply path. Because the fluid flows through the junction, any leak or air pocket at that point affects both sides. A junction end should be inspected with the same care as the wheel-end fittings, since a small weep here can drop the fluid level quickly.
When replacing the center hose, open the bleed screws in the correct order and keep the reservoir topped up so air is not drawn into the system. Check the pedal feel before driving and confirm that both rear brakes release fully. Replace any rear brake part that shows wetness or damage at the same time.
- Inspect the junction body for seepage or cracks
- Keep the reservoir filled during bleeding
- Confirm both rear brakes release after the change
- Replace worn rear fittings at the same time
Specifications
| Brand | Dorman |
|---|---|
| Part number | H622071 |
| UPC | 885484233287 |
| Position | Rear center |
| Added length | 4 inch for raised suspensions |
| Bracket | Stamped steel |
| Primary segment length | 20.39 inch |
| Total length | 23.39 inch |
| End 1 | Junction, (2) 3/8 inch-24 |
| End 2 | 3/8 inch-24 female |
| Pressure test | Up to 4,000 PSI |
| Fit | Direct fit |
Vehicle fitment
It is a direct fit for the 2004–2006 Jeep Wrangler (LJ) and the 1999–2006 Jeep Wrangler (TJ).
The 1997–1998 TJ and the YJ and JK Wranglers are not covered. Confirm your vehicle’s year, model and trim before ordering.
Installation notes
The junction end splits to two 3/8 inch-24 lines, so the rear brake system needs bleeding after the center hose is changed.
What’s included
Brake hose and gaskets.
