Overview

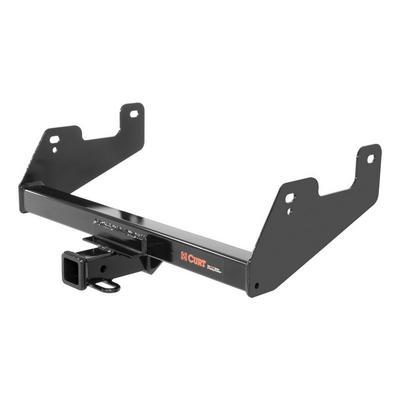

The Curt Manufacturing CRT13118 is a Class 3 rear trailer hitch with a 2-inch receiver, made for the 2015–2018 Ford F-150. It is designed for each specific vehicle so it integrates with the truck’s existing features and gives a streamlined, OE-style look.
This hitch is rated to 6,000 lbs. gross trailer weight and 900 lbs. tongue weight. It suits boat trailers, popup campers, ATV trailers and utility trailers, and it can also carry a hitch-mounted cargo carrier or bike rack. Typical uses include hauling tools from the home improvement store and towing a boat to a nearby swimming hole. Never exceed the lowest-rated towing component in your setup.
Key features
- Rated to 6,000 lbs. gross trailer weight and 900 lbs. tongue weight, tested in accordance with SAE J684
- Compatible with a weight distribution hitch rated 10,000 lbs. WD and 1,000 lbs. WDTW

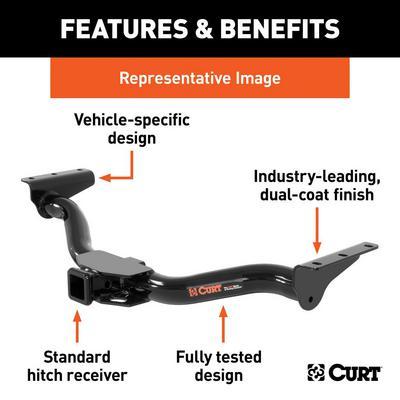

- Concealed main body for an OE look and seamless integration with the truck
- Precisely welded using a mix of manual and robotic operations
- Liquid A-coat applied inside and out, co-cured under a high-gloss black powder coat

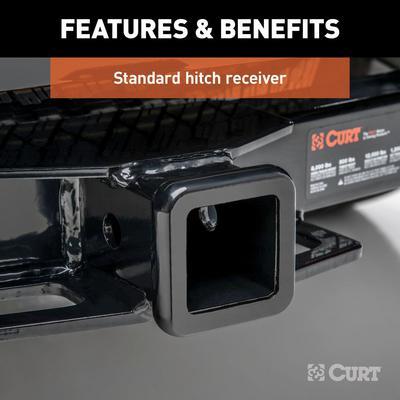

- Open-back receiver makes cleaning easier
- Made in USA (may include imported hardware)
Choosing a weight distribution setup
A weight distribution hitch spreads tongue weight across the truck’s axles and the trailer’s axles, which helps keep steering and braking under control. Pair the hitch with a matched ball mount and sway control, and check that the tongue weight stays within the hitch limits. The setup works best when the trailer is loaded with weight toward the front of the trailer, not behind the axle.
Receivers like this one fit closely to the frame, so keep the receiver tube clean and free of rust. Use a tube cover when the hitch is empty, and inspect the welds and pin holes periodically. Worn ball mounts and loose pins are common reasons for trailer sway, so replace those parts before towing again.
Specifications
| Brand | Curt Manufacturing |
|---|---|
| Part number | CRT13118 |
| Hitch class | Class III/IV |
| Receiver size | 2 inches x 2 inches |
| Front or rear | Rear |
| Gross trailer weight rating | 6,000 lbs. |
| Tongue weight rating | 900 lbs. |
| Weight distribution rating | 10,000 lbs. WD / 1,000 lbs. WDTW |
| Finish | High-gloss black powder coat over rust-resistant liquid A-coat |
| Roll pan compatibility | Does not fit with roll pan |
| Warranty | Limited lifetime (one-year finish, one-year parts) |
| Made in | USA (may include imported hardware) |
Vehicle fitment
It fits 2015–2018 Ford F-150 trucks in King Ranch, Lariat, Limited, Platinum, Police Responder, Raptor, SSV, XL and XLT trims.
Other F-150 model years and other Ford models are outside this fit range. Confirm your vehicle’s year, model and trim before ordering.
Installation notes
Hitch ratings cannot exceed what the truck is rated to tow, so check the truck’s own towing limits before hooking up a trailer.
What’s included
Installation hardware is included with the hitch.
Not included: a ball mount or other accessory with a 2-inch x 2-inch shank is needed to attach a trailer.
