Currie Johnny Joint Front End Housing Kit – CE-9102K

Currie

Shop Jeep Cherokee XJ Flex Joints on Amazon

Compare current versions and compatible options on Amazon, then check out with your Amazon account.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • Currie CE-9102K front end housing kit for 1991 to 2001 Jeep Cherokee (XJ)
  • Mounts 2-inch Johnny Joints in place of the upper control arm bushings
  • Includes a Johnny Joint insert, installation tool and greasable hardware
  • Requires cutting and welding equipment; minor welding required

Description

Overview

The Currie CE-9102K is a front end housing kit that lets 2-inch Johnny Joints replace the stock upper control arm bushings on a 1991 to 2001 Jeep Cherokee (XJ). It works on stock Dana 30 or 44 housings and most aftermarket front end housings.

The kit moves the upper joint onto a flame-cut steel upright, 1 inch thick, which fits on the tube side with a Johnny Joint already installed. A separate insert fits the gear case ear, and an installation tool is included. The upright welds to the existing bracket base rather than to the tube, which helps avoid warping the tube.

Key features

  • Allows a 2-inch Johnny Joint with 7/16 inch stock-size thru bolts on a front end housing
  • Works on stock Dana 30 or 44 housings and most aftermarket housings
  • Tube-side upright is 1 inch thick flame-cut steel with a Johnny Joint already installed
  • No welding on the tube, so the tube is not warped
  • Includes greasable hardware and an installation tool
  • Mounts in the front upper position

Upper joint geometry and wear

The upper joint on a front end controls how the upper arm moves relative to the axle, so its position affects caster, travel and the way the suspension articulates. When a stock bushing is replaced with a joint, the arm moves in a different arc, and that change can alter the feel of steering and the angle of the joint under load. Plan the joint position with that in mind rather than treating it as a simple swap.

Because a housing kit moves the pivot, the rest of the front end may need to be checked, including the track bar, tie rod and steering geometry. Keep the greasable hardware clean and fresh, and inspect the joint after rough trails for play, cracked welds at the upright and bent brackets. Replace worn parts together so the new joint is not sitting on a tired mount.

Specifications

Brand Currie
Part number CE-9102K
UPC 70000305705
Kit type Front end housing kit for Johnny Joints
Joint size 2 inch Johnny Joint
Thru bolt 7/16 inch, stock size
Upright thickness 1 inch
Upright material Flame-cut steel
Position Front upper
Hardware Greasable

Vehicle fitment

The kit fits the Jeep Cherokee (XJ) from 1991 through 2001. Confirm fit against your vehicle’s year, model and trim before ordering.

Model years before 1991 and after 2001 fall outside the stated range. Confirm your vehicle’s year, model and trim before ordering.

Installation notes

The kit requires cutting and welding equipment. Cut off the top of the stock bracket on the tube, set the Currie upright into the existing bracket base and weld it there. Only attempt the welding if you are trained for it, since the welds sit on a suspension bracket.

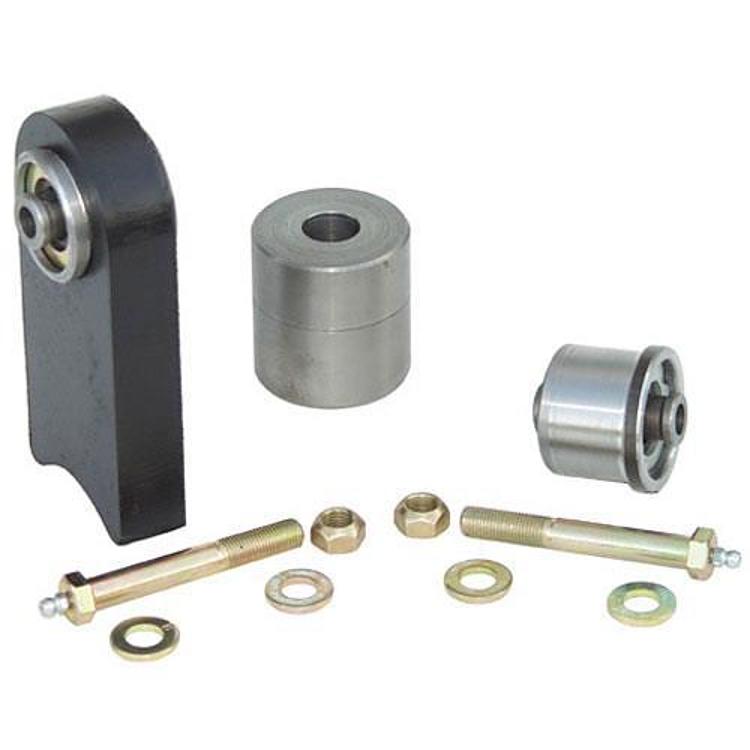

What’s included

A Johnny Joint insert for the gear case ear, the steel upright with a Johnny Joint already installed, greasable hardware and an installation tool.

Not included: cutting and welding equipment, which installation requires.

SKU: CURCE-9102K Category:

Specification

Shipping weight 7.45 lbs
Package dimensions 6.30 × 4.50 × 4.40 in
brands

Fitment

VehicleYearsTrims
Jeep Cherokee (XJ) likely fits1991–2001All

Vehicles marked "likely fits" are inferred from the product description rather than a manufacturer fitment list. Please confirm fitment with the manufacturer before ordering.

Use “Select your vehicle” at the top of the page to check this part against your vehicle.

Questions & Answers

Will the CE-9102K fit my 1991 to 2001 Jeep Cherokee?

Yes, it is made for the 1991 to 2001 Jeep Cherokee, which covers that model range. Confirm fit against your vehicle's year, model and trim before ordering.

Does installation require welding?

Yes. Installation requires cutting and welding equipment. You remove the top of the stock bracket on the tube, fit the Currie upright into the bracket base, and weld it there. The tube itself is not welded.

Which housings does the CE-9102K work with?

It works on stock Dana 30 or 44 housings and on most aftermarket front end housings. Dana 30 and Dana 44 are axle names, so confirm your housing matches before you cut anything.

How do I tell when the upper joints need replacing?

Watch for play at the joint, stiff movement, clicking under load, or grease that will not stay in. Any of these means the joint, its hardware or the upright should be inspected before the next trail run.

Should the front end be aligned after a housing kit install?

Often yes. Moving the upper pivot can change camber and caster, so an alignment check helps keep tire wear and steering even. Recheck the track bar and tie rod ends at the same time.
