Crown Automotive Wheel Cylinder – 8124564

Crown Automotive

$75.42In stock
Buy on Amazon

See similar parts on Amazon

Price and availability as of Nov 17, 2026 7:10 PM MST, from Amazon.com, and subject to change. The Amazon listing has the current details.

Check out with your Amazon account. Amazon handles delivery and returns.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • Wheel cylinder with 1-1/8 inch bore
  • Passenger side front position listed
  • Fits 1974–1975 Jeep Cherokee (SJ) and J10, 1974 J20 and Wagoneer (SJ)
  • Part number CRO8124564

Description

Overview

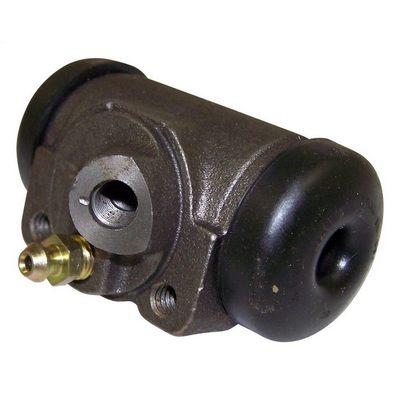

The Crown Automotive 8124564 is a wheel cylinder, part number CRO8124564, with a 1-1/8 inch bore. It fits the passenger side front position on the 1974–1975 Jeep Cherokee (SJ) and J10, the 1974 J20 and the 1974–1975 Wagoneer (SJ).

The cylinder is made for the passenger side front position. Check whether your old cylinder sits at that position before installing.

Key features

  • 1-1/8 inch bore
  • Passenger side front position
  • Fits 1974–1975 Cherokee (SJ), J10, J20 and Wagoneer (SJ) models
  • Part number CRO8124564

Wheel cylinder service

A wheel cylinder sits at the top of a drum brake and pushes the shoes outward when fluid pressure rises. Because it is a sealed hydraulic part, a leak at the boot or piston usually shows up as fluid on the inside of the backing plate, or as a brake pedal that sinks over time. Check the boots and the area around the cylinder whenever the drums are removed for other work.

When replacing one, install the new cylinder in the same orientation as the old one, with the bleeder screw in the matching position. Brake fluid absorbs moisture and can damage seals and bores when it is contaminated, so keep the reservoir sealed and use clean fluid. Bleed the system after installation so no air remains in the line, and inspect the brake hose and shoes at the same time.

Specifications

Brand Crown Automotive
Part number CRO8124564
Bore 1-1/8 inch
Position Front right (passenger side)

Vehicle fitment

These vehicles are on the manufacturer fitment list:

  • 1974–1975 Jeep Cherokee (SJ): Base, S
  • 1974–1975 Jeep J10: Base
  • 1974 Jeep J20: Base
  • 1974 Jeep Wagoneer (SJ): Base, Custom

Vehicles from other years and other Jeep models are not on this list. Confirm your vehicle’s year, model and trim before ordering.

SKU: CRO8124564 Categories: , ,

Fitment

VehicleYearsTrims
Jeep Cherokee (SJ)1974–1975Base, S
Jeep J101974–1975Base
Jeep J201974Base
Jeep Wagoneer (SJ)1974Base, Custom

Use “Select your vehicle” at the top of the page to check this part against your vehicle.

Questions & Answers

What is the bore size of the Crown CRO8124564 wheel cylinder?

The bore is 1-1/8 inch. Before installing it, compare the cylinder's overall size and fittings with your existing part to confirm they match.

Can this wheel cylinder go on the driver side?

No. It is made for the passenger side front position. Confirm the position for your vehicle, including whether your old cylinder is at the front or rear, before ordering.

Which Jeep models does the 8124564 fit?

It fits the 1974–1975 Jeep Cherokee (SJ) in Base and S trims, the 1974–1975 J10 Base, the 1974 J20 Base and the 1974 Wagoneer (SJ) in Base and Custom trims.

How can I tell a wheel cylinder needs replacing?

Replace it when fluid is leaking from the boot or around the piston, when the brake pedal sinks slowly under steady pressure, or when one wheel drags or pulls the vehicle to one side. Check the drums and shoes for fluid contamination as well, since a leaking cylinder can soak the linings.
