Crown Automotive Tie Rod Assembly – J5352421

Crown Automotive

Shop Jeep Wagoneer SJ Tie Rod Assembly on Amazon

Compare current versions and compatible options on Amazon, then check out with your Amazon account.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • Fits 1986–1988 Jeep Cherokee (XJ) Chief, 1974–1988 J10 and J20, and 1974–1990 Wagoneer (SJ)
  • Complete Pitman arm to tie rod unit
  • Length 28-3/8 inch
  • Part number J5352421, UPC 848399079425

Description

Overview

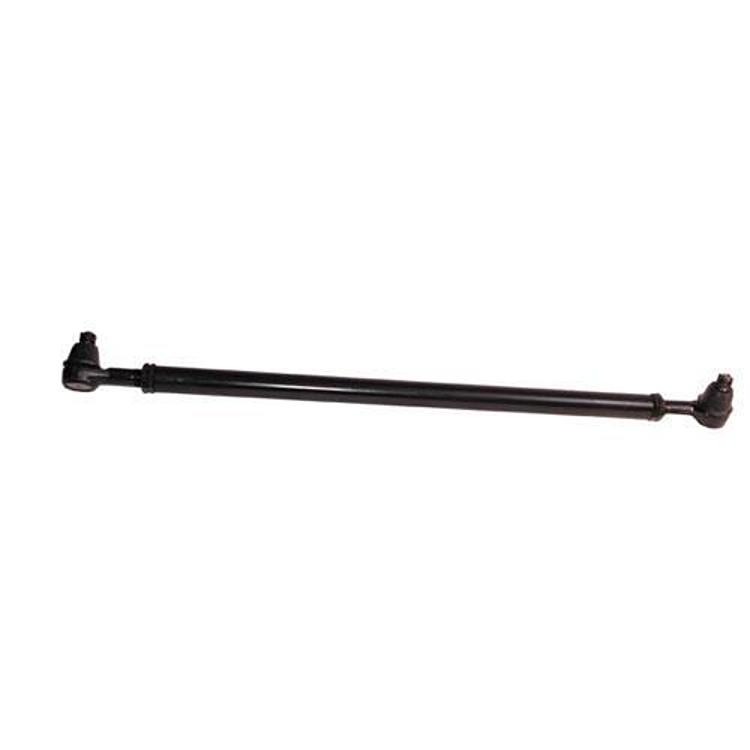

The Crown Automotive J5352421 is a 28-3/8 inch tie rod assembly that mounts at the Pitman arm. It is a complete Pitman arm to tie rod unit, and it fits the 1986–1988 Jeep Cherokee (XJ) Chief, 1974–1988 Jeep J10 and J20 trucks, and 1974–1990 Jeep Wagoneer (SJ) models.

This factory-style replacement suits owners of these Cherokee, J-series and Wagoneer Jeeps who need the steering linkage at the Pitman arm end replaced.

Key features

  • Factory-style replacement design
  • Complete Pitman arm to tie rod unit
  • Position noted as at the Pitman arm
  • Overall length of 28-3/8 inch
  • Crown part number J5352421 with UPC 848399079425

Pitman arm end replacement

A complete Pitman arm to tie rod unit replaces both the arm end and the tie rod in one piece, so the job often takes less fitting than separate parts. On older Cherokee, J-series and Wagoneer Jeeps, the Pitman arm end is one of the joints that works hardest in the steering. Before starting, check the steering box, the Pitman arm nut and the drag link for play, since a worn part nearby can mimic a bad end.

After the unit is installed, have the front end aligned and check the cotter pin and nut on the Pitman arm end. Re-tighten fasteners after a short drive and check the boots at each service. Keep grease in the joints where fittings are present.

  • Check steering box play before replacing
  • Inspect the Pitman arm nut and cotter pin
  • Plan a front-end alignment check

Specifications

Brand Crown Automotive
Part number J5352421
UPC 848399079425
Length 28-3/8 inch
Position At Pitman Arm
Configuration Pitman arm to tie rod complete
Style Factory-style replacement

Vehicle fitment

Applications Crown names for this unit:

  • 1986–1988 Jeep Cherokee (XJ) (Chief)
  • 1974–1988 Jeep J10 (Base)
  • 1974–1988 Jeep J20 (Base)
  • 1974–1990 Jeep Wagoneer (SJ) (Base, Brougham, Custom, Limited)

Trims and models not named above, including Cherokee trims other than Chief, are not covered. Confirm your vehicle’s year, model and trim before ordering.

Installation notes

Since this unit replaces the link at the Pitman arm, plan a front-end alignment check once it is installed.

What’s included

The product is one complete Pitman arm to tie rod assembly.

SKU: CROJ5352421 Category:

Specification

Shipping weight 11.00 lbs
Package dimensions 44.00 × 5.00 × 5.00 in
brands

Fitment

VehicleYearsTrims
Jeep Cherokee (XJ)1986–1988Chief
Jeep J101974–1988Base
Jeep J201974–1988Base
Jeep Wagoneer (SJ)1974–1990Base, Brougham, Custom, Limited

Use “Select your vehicle” at the top of the page to check this part against your vehicle.

Questions & Answers

Will the Crown J5352421 fit a 1986 Jeep Cherokee Chief?

Yes. It fits the 1986–1988 Jeep Cherokee (XJ) Chief. Other Cherokee trims are not covered, so confirm your trim before ordering.

Where does this assembly mount?

It mounts at the Pitman arm as a complete Pitman arm to tie rod unit. The overall length is 28-3/8 inch, so compare the length against the original part before fitting.

What is the part number and UPC?

The Crown Automotive part number is J5352421 and the UPC is 848399079425. Compare these identifiers with your old part before ordering to confirm the match.

Does the Pitman arm unit need alignment after install?

Yes. The Pitman arm end sets part of the steering geometry, so have a front-end alignment check once the unit is installed. Check boots and joints on the rest of the linkage at the same time.
