Overview

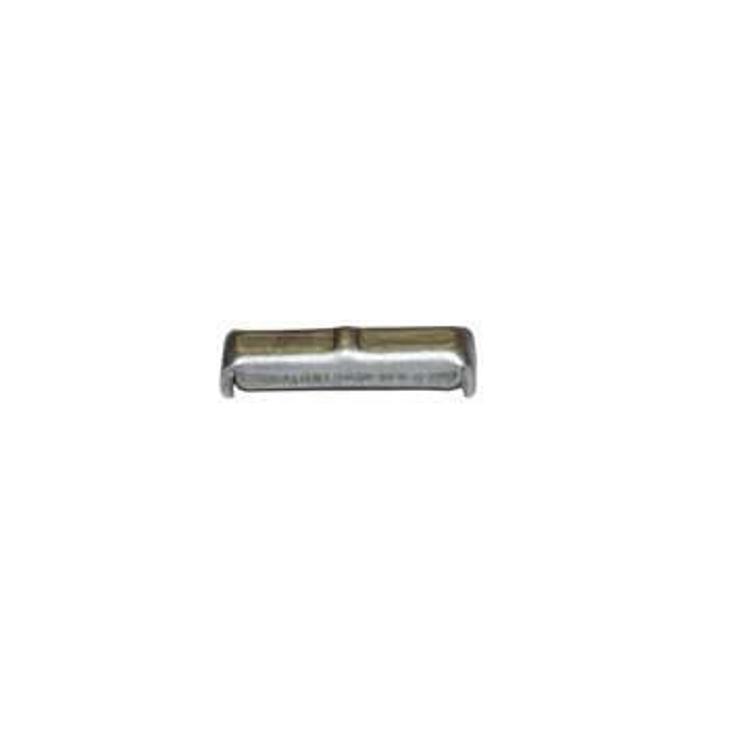

The Crown Automotive J0640395 is a T90 synchronizer plate for the 2nd and 3rd gear synchronizers in the T90 manual transmission. Part number J0640395 and UPC 848399052107 identify it.
Three plates are needed for one service, so the quantity is set by the job. The plate is a direct fit for T90 manual transmissions. Confirm fit for your vehicle’s year, model and trim before ordering.
Key features
- Synchronizer plate for T90 manual transmissions
- Covers the 2nd and 3rd gear positions
- Three plates are needed for one T90 service.
- Part number J0640395 with UPC 848399052107
Working on the synchronizer
Synchronizer plates sit in the gear stack and help match shaft speeds so the dog teeth engage without grinding. Where the plates are worn, drivers often notice a gear that is hard to select, a crunch when shifting into second or third, or a gear that pops out under throttle. Because the 2nd and 3rd gear synchronizers work together, the plates are usually inspected together rather than one at a time.
During teardown, measure the plates for scoring, glazing and flat spots, and check the friction faces for uneven wear. Replacing the full set keeps the synchronizer load balanced. Clean every component of old friction material and use the correct fluid for the T90 gearbox during reassembly. Fit the new plates in the orientation shown in the service manual and check end play before closing the case, since a stack that is too tight can bind the synchronizers.
Specifications
| Brand | Crown Automotive |
|---|---|
| Part number | J0640395 |
| UPC | 848399052107 |
| Transmission | T90 manual |
| Gear positions | 2nd and 3rd |
| Quantity required | 3 |
| Category | Manual Trans Synchro Key Plate |
Vehicle fitment
The plate is designed for the T90 manual transmission and is a direct fit for that application. Confirm fit for your vehicle’s year, model and trim before ordering.
Only the T90 manual transmission is named, so confirm your transmission before ordering. Confirm your vehicle’s year, model and trim before ordering.
Installation notes
Three plates are required, so the full set should be on hand before the 2nd and 3rd gear work begins.
What’s included
Three plates are required for one service. Check the package contents against your installation before starting.
