Overview

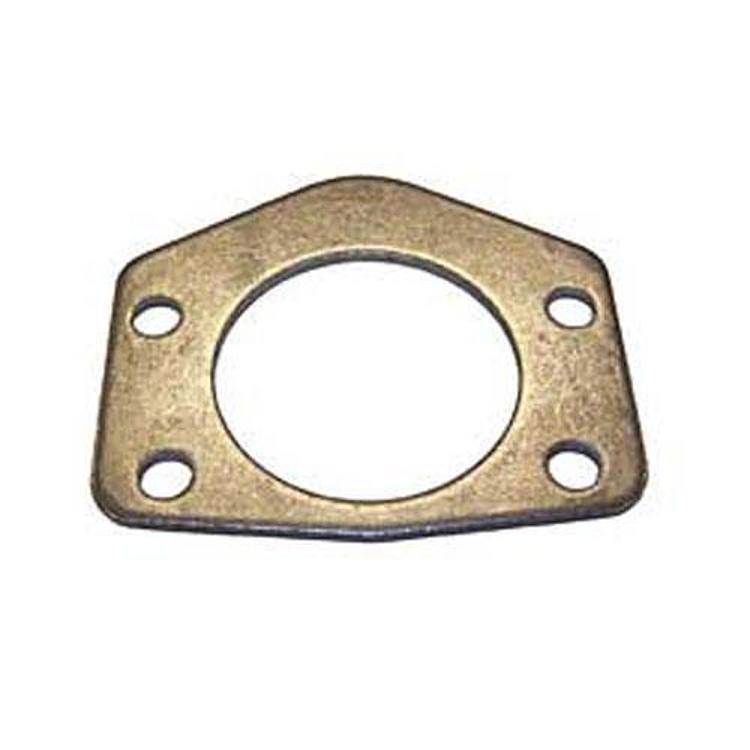

The Crown Automotive 5010811AA is an axle seal retainer for the Dana 44 rear axle, made for axles with drum brakes. It fits the 1997–2006 Jeep Wrangler (TJ).
A seal retainer holds the axle shaft seal in place at the end of the axle tube. This one is designed for the rear axle.
Key features
- Seal retainer for the Dana 44 rear axle
- Drum brake applications
- Direct-fit listing for Wrangler TJ
- Crown Automotive part number 5010811AA
Axle seal and drum brake checks
The seal retainer holds the axle shaft seal at the end of the axle tube, so a sound retainer keeps gear oil in the axle and water and dirt out. Check the seal and the retainer for leaks around the flange, and look for cracked or bent metal when the axle is opened. Leaks often show first as dark oil on the inside of the rear wheel or on the brake shoes.
Replace the seal whenever the retainer is removed, and inspect the bearing and bearing race for wear or pitting. Clean the mating surface on the axle tube so the new gasket seals evenly. Drum brake axles also have brake shoes and drums that need inspection at the same time, because oil on the shoes reduces braking.
- Replace the axle shaft seal when the retainer comes off
- Inspect the bearing and bearing race
- Check brake shoes for oil contamination
Specifications
| Brand | Crown Automotive |
|---|---|
| Part number | 5010811AA |
| UPC | 848399027044 |
| Axle | Dana 44 rear |
| Brakes | Drum |
Vehicle fitment
It fits the 1997–2006 Jeep Wrangler (TJ), including the 65th Anniversary Edition, Rubicon, SE, Sahara, Sport and X trims.
Wrangler TJ years outside 1997–2006 and the Wrangler JK are not on this list. Confirm your vehicle’s year, model and trim before ordering.
What’s included
One seal retainer, Crown part 5010811AA.
