Overview

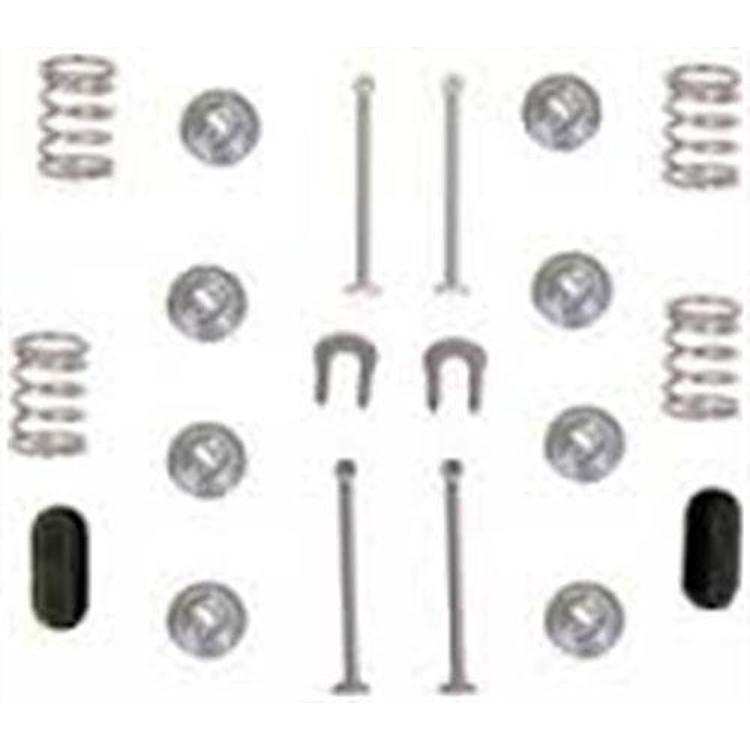

The Crown Automotive J0937952 is a brake shoe hold down kit for 11 inch drum brakes, usable at the front or rear. It fits a range of vehicles from the 1963 J-200 trucks through the 1978 CJ5 and CJ7, including the Commando and Wagoneer (SJ).
The hold down kit keeps the brake shoes seated against the backing plate.
Key features
- Brake shoe hold down kit for drum brakes
- For 11 inch brakes
- Front or rear use
- Direct-fit replacement design
Keeping shoes seated
A hold down kit keeps the brake shoes pressed against the backing plate so they do not rattle or shift as the drum turns. Springs and pins that have lost their tension let the shoe move, which can change where the lining contacts the drum and cause uneven wear over time.
When the brakes are rebuilt, clean the backing plate and the pin bores, then fit the hardware in a matched set. Check that the shoes slide freely once the hardware is in place, and confirm the adjuster moves without binding. Inspect the hardware again after the first few drives, since new parts can settle.
- Clean the backing plate before reassembly
- Check that shoes slide freely on the pins
- Replace springs and pins as a matched set
Specifications
| Brand | Crown Automotive |
|---|---|
| Part number | J0937952 |
| UPC | 848399055436 |
| Part type | Drum brake shoe hold down kit |
| Brake size | 11 inch |
| Position | Front or rear |
| Fit type | Direct fit |
Vehicle fitment
It fits the 1969-1978 Jeep CJ5, the 1969-1975 CJ6, the 1976-1978 CJ7, the 1972-1973 Commando, the 1963-1973 Wagoneer (SJ) and the J-200 to J-4800 series trucks of 1963-1973.
Cherokee, Wrangler and later CJ years are not covered. Confirm fit for your vehicle’s year, model and trim before ordering.
What’s included
- Brake shoe hold down kit
