Overview

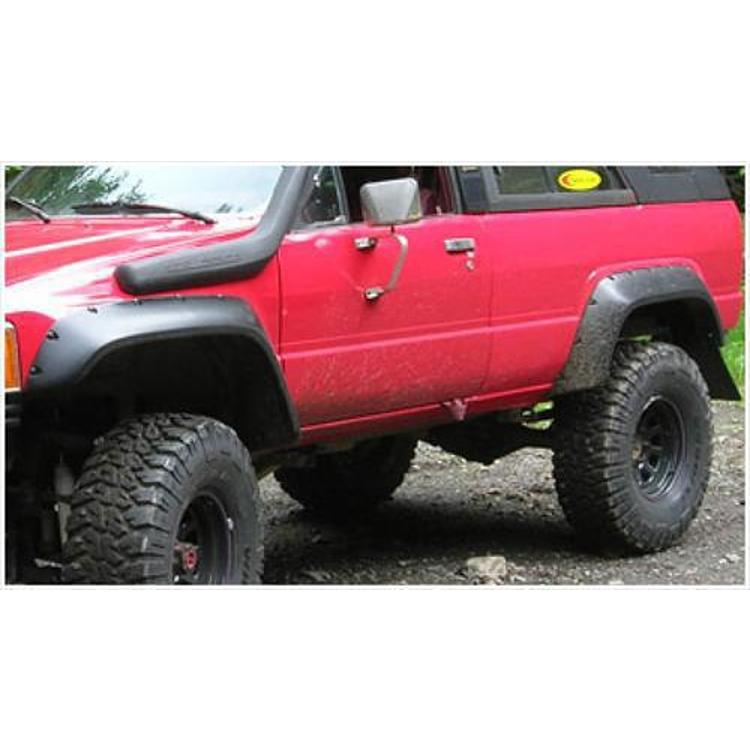

The Bushwacker 31022-11 is a pair of Cut-Out rear fender flares for the Toyota 4Runner. Each set is designed to maximize off-road wheel travel and keep tire coverage for oversized tires. The flares add 3 inches of width and tire coverage at the rear. Confirm the 4Runner model years against your vehicle before ordering.
Cut-Out flares require cutting the body sheet metal, which gives the tire room to move. The flares are made from Dura-Flex 2000, which is UV protected, and the matte black surface can be left as-is or painted. They are individually designed for the vehicle and mount with rivets.
Key features
- Cut-Out rear design for maximum wheel articulation
- 3 inches of width and tire coverage
- Individually designed for the vehicle
- Rivet installation
- Thick Dura-Flex 2000 that resists chalking
- OEM matte black finish that can be painted
Tire clearance and body work
Cut-Out fenders are a permanent modification. Once the sheet metal is removed, the opening stays open and exposed edges need finishing to resist rust. Sanding, sealing and a coat of paint on the bare edges helps keep the area clean. Before cutting, fit the tires you plan to run, check steering lock and suspension travel, and make sure the tire does not catch the flare at full articulation.
Because the flares extend tire coverage, debris and spray reach the sides of the truck more often. Mud flaps or splash guards can help, and the bottom of the fender is a good place to check for stone damage after trail runs. The flares work best alongside a suspension and wheel package sized for the tire, so review those parts as a set.
- Seal bare metal edges after cutting
- Test full steering lock with the tires fitted
- Check the flare after trail use for stone damage
Specifications
| Brand | Bushwacker |
|---|---|
| Part number | 31022-11 |
| UPC | 90689103338 |
| Position | Rear |
| Width and tire coverage | 3 inches |
| Quantity | Sold as a pair |
| Fit type | Direct fit |
| Material | Dura-Flex 2000 |
| Finish | OEM matte black, paintable |
Vehicle fitment
Confirm the year, model and trim of your 4Runner before ordering, since the year range must match your truck.
Confirm your vehicle’s year, model and trim before ordering.
Installation notes
Body sheet metal must be cut for this Cut-Out design, and the cut is permanent. Bushwacker refers to an installation guide for each model, so follow that guide and check clearance before cutting.
What’s included
One pair of rear Cut-Out fender flares.
Not included: the front pair (part 31009-11) is sold separately.
