Overview

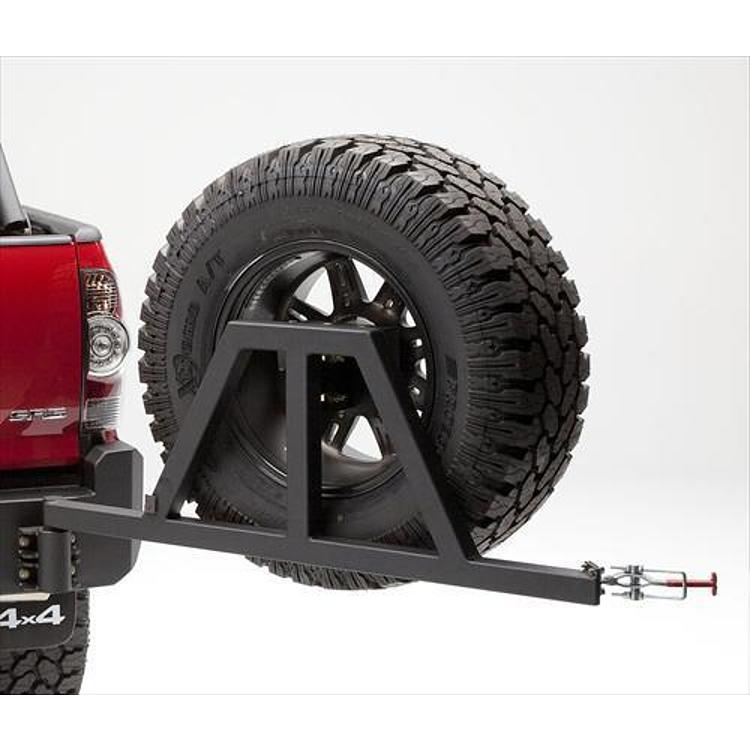

The Body Armor 4×4 TC-5293 is a swing arm tire and can carrier in textured black, part number TC-5293. Confirm fit for your vehicle’s year, model and trim before installing.
The swing arm carries a spare tire up to 37 inches tall and swings open wide enough for the tailgate to drop for full bed access.
Key features
- Swing arm for a spare tire up to 37 inches tall
- Uses a dual wheel bearing pivot design.
- Designed not to rattle while driving
- Swings open for full bed access with the tailgate down
- Bolts on with no drilling, cutting or welding
- Textured black finish
Swing arm loads and use
A swing arm tire carrier moves a spare tire on a pivot, so the arm, the bumper mount and the tailgate all share the load. A heavier tire puts more strain on the pivot each time the arm swings, and that strain is the main reason to check the arm’s bearings and fasteners often. Choose a tire that suits the arm’s rated height and keep it secured while driving.
Swing arm designs that bolt on without drilling simplify installation, but they still depend on solid mounting points. Before each trip, look for play at the pivot, loose bumper bolts, and any rubbing against the tailgate or bed. Clean the finish with mild soap, and touch up chips in textured black before corrosion can start.
- Check pivot play before trips
- Tighten bumper bolts after rough roads
- Keep the spare secured while driving
Specifications
| Brand | Body Armor 4×4 |
|---|---|
| Part number | TC-5293 |
| UPC | 859909002376 |
| Finish | Textured black |
| Maximum tire height | 37 inches tall |
| Pivot | Dual wheel bearing |
| Mounting | Bumper mount; bolts on |
| Used with | B/ATC-2961 (short description); TN-2961 (description) |
Vehicle fitment
Confirm fit for your Toyota Tacoma or Tundra’s year and trim before ordering.
Confirm your vehicle’s year, model and trim before ordering.
Installation notes
The arm bolts on with no drilling, cutting or welding. Confirm which carrier part your setup uses, TN-2961 or B/ATC-2961, before fitting the arm.
What’s included
Check the package contents against your installation before starting. The carrier the arm bolts to, TN-2961, is not included.
