Overview
The Body Armor 4×4 swing arm, part number 5295, is a tire carrier arm for Body Armor rear bumpers on the 2007–2018 Jeep Wrangler JK. It carries a maximum 40-inch tire on a 42MM axle stub and uses a dual wheel bearing design.
The arm has a car-door style latch and is pre-drilled for the 5217 can holder system and the 5128 Hi-Lift jack brackets. It works with the #B/AJK-2395 rear bumper.
Key features
- Dual wheel bearing design for added strength

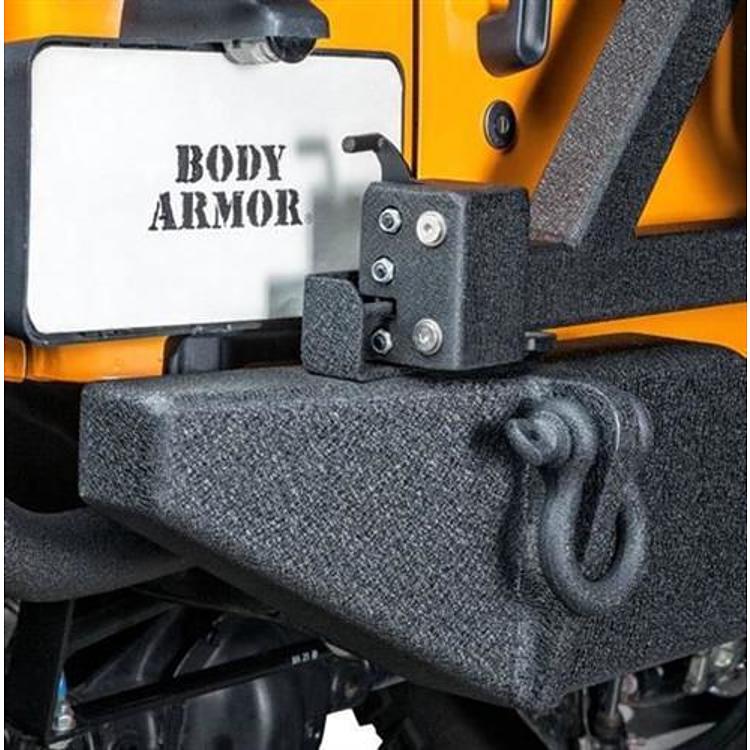

- Car-door style latch that operates like a car door
- 42MM axle stub
- Pre-drilled for the 5217 can holder system and 5128 Hi-Lift jack brackets
- Holds up to a 40-inch tire
- Black powder coat finish
Keeping the swing arm in service
A swing arm carries the spare’s weight at the back of the vehicle, so the bushings, bearings and mounting bolts see constant load. Off road, rocks, ruts and sudden landings put additional stress on the arm and the bumper attachment, which makes periodic inspection worthwhile. A cleaner, better-maintained arm also swings more smoothly when the tailgate opens.
Look at the wheel bearings for play and roughness, and confirm the latch engages fully before every trip. Lubricate moving points as your setup calls for, and wipe off road grit that can work into the bearing area. If the arm shows bent sections, cracked welds or a latch that no longer holds, replace the affected parts before carrying a spare again.
- Check bearing play after rough trails
- Test latch engagement with the spare mounted
- Inspect the bumper attachment bolts regularly
Specifications
| Brand | Body Armor 4×4 |
|---|---|
| Part number | 5295 |
| UPC | 859909002765 |
| Finish | Black powder coat |
| Axle stub | 42MM |
| Maximum tire | 40 inches |
| Latch | Car-door style |
| Compatible rear bumper | #B/AJK-2395 |
| Mounting location | Bumper mount |
| Fitment type | Direct fit |
Vehicle fitment
It fits the 2007–2018 Jeep Wrangler (JK) across base-length and Unlimited trims, including Rubicon, Sahara, Sport, Sport S, X and the 70th and 75th Anniversary editions.
The list does not cover the 2018 and later Wrangler JL or the earlier TJ and LJ models. Confirm your vehicle’s year, model and trim before ordering.
Installation notes
The arm is pre-drilled for the 5217 can holder system and 5128 Hi-Lift jack brackets, which bolt on directly. Check the latch operation and that the wheel bearings turn freely before loading a spare.
What’s included
Check the included hardware against your bumper before starting.
Not included: The spare tire, and the #B/AJK-2395 Body Armor rear bumper the arm works with.
