Select your vehicle

Black Rock 900 Viper, 17x8 Wheel with 5 on 5 Bolt Pattern – Tungsten- 900S785045

Black Rock Wheels

Shop Black Rock Wheels 17x8 5x5 on Amazon

Compare current versions and compatible options on Amazon, then check out with your Amazon account.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • Black Rock 900 Viper 17×8 aluminum wheel, part BRW900S785045
  • 5 on 5 bolt pattern, offset 0, center bore 84, backspacing 4.5
  • Tungsten finish; JWL-T certified
  • Exposed lug design with machined accents and flange

Description

Overview

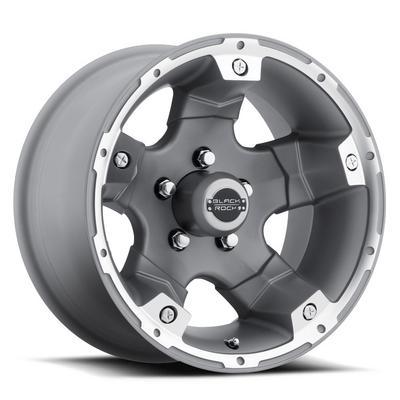

The Black Rock 900 Viper 17×8 is a 17-inch by 8-inch aluminum spoke wheel with a 5 on 5 bolt pattern, part number BRW900S785045, from Black Rock Wheels. Offset is 0, center bore 84 and backspacing 4.5.

The Viper has machined accents, a flange and an exposed lug design. It is JWL-T certified and has a Tungsten finish.

Key features

  • Exposed lug design with machined accents.
  • Flange detailing on the wheel face.
  • Aluminum alloy construction.
  • JWL-T certified.

Choosing the right setup

Fit depends on four measurements: diameter and width, bolt pattern, center bore and offset. The bolt pattern is checked first, because a mismatch cannot be corrected by tightening lug nuts. When the center bore is larger than the hub, hub-centric rings fill the gap and keep the wheel centered. Offset sets where the mounting face sits, which changes how the wheel clears brake calipers and fenders even when the pattern matches. Changing tire size or adding a lift can shift that clearance, so recheck it after those changes.

Exposed lug designs leave the lug nuts visible on the wheel face. Make sure the lug seats match the nut type and that the nuts sit flush before the wheel is loaded. Re-torque after the first few drives and after any tire service. After trail use, look for bent lips, cracked spokes, and loose or corroded hardware.

  • Verify the bolt pattern before ordering
  • Match the center bore or use hub-centric rings
  • Check offset against brake and suspension clearance
  • Re-torque lug nuts after the first drives

Specifications

Brand Black Rock Wheels
Part number BRW900S785045
Wheel diameter 17 inches
Wheel width 8 inches
Bolt pattern 5 on 5
Offset 0
Center bore 84
Backspacing 4.5
Style Spoke
Series 900 Viper
Finish Tungsten
Construction Aluminum
Certification JWL-T

Vehicle fitment

A 5 on 5 pattern is less common than 5 on 4.5, so check the bolt pattern and the 84 center bore against your hub before choosing this wheel. Confirm fit for your vehicle’s year, model and trim before ordering.

Each size in the Viper series is a separate wheel with its own offset and width. Confirm fit for your vehicle’s year, model and trim before ordering.

Installation notes

No modification is described, so the wheel mounts with lug nuts. Verify the bolt pattern before mounting, because a mismatch cannot be fixed by tightening.

What’s included

One 17×8 wheel is included.

Not included: Tires and lug hardware are not included with the wheel.

SKU: BRW900S785045 Categories: ,

Questions & Answers

What is the Black Rock 900 Viper BRW900S785045?

It is a 17-inch by 8-inch aluminum spoke wheel from Black Rock Wheels in the 900 Viper series, with a 5 on 5 bolt pattern, offset 0, center bore 84 and backspacing 4.5.

Is this a 5 on 5 or a 5 on 4.5 wheel?

This wheel has a 5 on 5 bolt pattern. The Viper series also includes 5 on 4.5 versions, so check the bolt pattern on the exact part before ordering.

Will this Viper fit my truck?

No vehicle years, makes or models are listed. Confirm the 5 on 5 bolt pattern and center bore 84 against your truck's manufacturer specifications.

How can I tell if a Viper wheel is damaged and needs replacing?

Look for cracks or bends around the spokes and lip, slow air loss at the bead seat, or a wobble that remains after balancing. Any of these means the wheel should be inspected by a shop before it is driven again.

Do I need special lug nuts for this wheel?

Lug nuts must match the seat style of the wheel's lug holes, such as conical or ball seats. A mismatched nut can seat unevenly and loosen over time. Confirm the seat type before installing the wheel.
