Overview

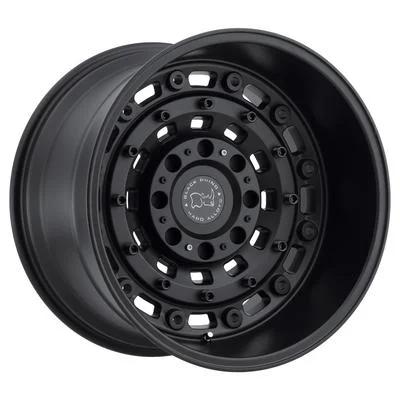

The Black Rhino Arsenal 16×8 wheel, part number TSW1680ARS385160M65, is a 16-inch aluminum wheel in textured matte black with a 5 on 160 bolt pattern and a 0 offset. Black Rhino Wheels places it in the Arsenal style, in the Spade series, listed under the Industrial style.
The Arsenal is a military-inspired wheel with a modified tactical look. It features a bolted face, chiseled windows and a unique center cap, and it is aimed at adventure-minded overland drivers. The line comes in 17×9.5, 18×9.5, 20×9.5 and 20×12 sizes, with offsets from -44 to 12mm and five, six and 8-lug patterns. This 16×8 Spade model is not one of those sizes.
Compare finish, bolt pattern and sizing first, since those decide whether a wheel mounts to a given hub. This model has a textured matte black finish and a 65 center bore.
Key features
- 16-inch diameter and 8-inch width
- Aluminum construction with a textured matte black finish
- 5 on 160 bolt pattern, also written 5×160
- 0 offset with 6 backspacing
- 65 center bore
- Bolted-face design with chiseled windows
- Spade series in the Arsenal style
Center bore and hub fit
A center bore that matches the hub keeps the wheel centered and takes load off the lug studs. A hub centric fit is preferred for vibration-free running, while a larger bore needs hub centric rings. Confirm the bore and hub diameter before mounting, rather than relying on lug pattern alone.
Backspacing controls how far the wheel sits inside the fender and how much room there is for brake components. Textured matte black finishes show marks quickly, so clean them with a mild wash rather than harsh solvents. When sizing a tire, match its width and diameter to the wheel and check clearance at full steering lock.
- Match center bore to the hub or use hub centric rings
- Check backspacing against brake caliper clearance
- Clean matte finishes with mild soap and water
Specifications
| Brand | Black Rhino Wheels |
|---|---|
| Part number | TSW1680ARS385160M65 |
| Style | Industrial (Arsenal) |
| Series | Spade |
| Wheel diameter | 16 inches |
| Wheel width | 8 inches |
| Offset | 0 |
| Backspacing | 6 |
| Center bore | 65 |
| Bolt pattern | 5 on 160 |
| Finish | Textured Matte Black |
| Construction | Aluminum |
Vehicle fitment
No vehicle or year is named for this wheel, and it is marked Universal Fit. Compare the 5 on 160 bolt pattern, 0 offset, 6 backspacing and 65 center bore with your vehicle’s hub and wheel specifications before choosing it.
Confirm your vehicle’s year, model and trim before ordering.
Installation notes
Check the center bore, offset and backspacing against your hub and brake clearance before mounting the wheel.
What’s included
Source tires, lug nuts and any center cap separately, and confirm what is in the package before mounting.
