Overview

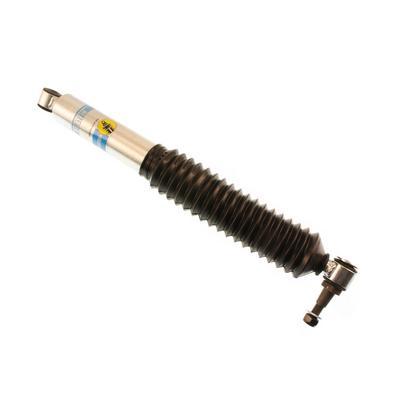

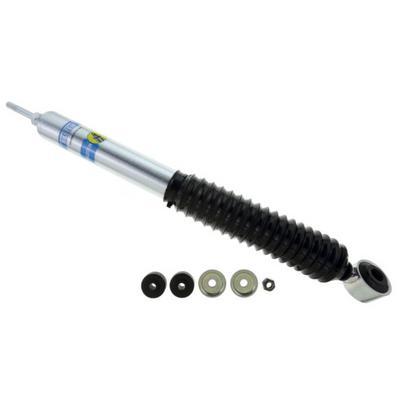

The Bilstein 5100 Series 33-174525 is a front steering damper for Chevrolet and GMC trucks, with fitment listed across the Avalanche 2500 and several Silverado 1500 HD, 2500, 2500 HD and 3500 model years. It is a stabilizer only, sold as a single damper.
The unit is a gas pressure monotube design. It is designed to avoid cavitation and foaming in the damping oil, and it uses digressive valving for precise steering damping. It reduces steering component vibration and wear.
The damper has a cantilever lower mount and a 12.7mm eye at the top, with an 11mm shaft. Its collapsed length is 12.83 inches, its extended length is 20.08 inches and its travel is 7.25 inches.
Key features
- Gas pressure monotube body that eliminates cavitation and foaming
- Digressive valving with precise steering damping
- Zinc corrosion-resistant finish from Bilstein’s Triple C process
- Collapsed length 12.83 in and travel 7.25 in
- Single damper with a 46mm smooth ID body
Gas pressure damping explained
Gas pressure dampers use a charge of gas to keep the damping oil from foaming under rapid movement, so the damper responds consistently over repeated use. On a solid-axle truck, a steering stabilizer helps control the quick movement that comes through the steering linkage from the road and the tires. Its valving determines how firmly it resists that movement, and a worn unit can let vibration reach the steering wheel.
Choosing a replacement starts with the mounting style. A cantilever lower mount and an eye at the top must match the points on your truck, and the shaft diameter needs to suit the mounting hardware. Brackets are often a separate purchase, so plan for them early. Before installing, compare the collapsed and extended lengths with the damper you remove so the unit does not bind at full steering lock.
- Check the mount bushings and hardware
- Inspect the body for leaks after the first drive
- Watch for steering wheel shake that returns after install
- Retorque fasteners after the first few trail runs
Specifications
| Brand | Bilstein |
|---|---|
| Part number | 33-174525 |
| Shock series | 5100 Series |
| Type | Stabilizer only, gas pressure monotube |
| Position | Front |
| Single or dual | Single |
| Lower mount | Cantilever |
| Upper mount | Eye, 12.7mm |
| Shaft diameter | 11mm |
| Body | 46mm ID smooth, non-coilover |
| Collapsed length | 12.83 in |
| Extended length | 20.08 in |
| Travel | 7.25 in |
| Finish | Zinc plated |
| Brackets | Not included |
Vehicle fitment
It fits the 2002 through 2006 Chevrolet Avalanche 2500, the 2001 to 2003 and 2005 to 2006 Silverado 1500 HD, the 1999 through 2004 Silverado 2500, the 2001 through 2010 Silverado 2500 HD, the 2007 Silverado 2500 HD Classic and the 2001 through 2006 Silverado 3500.
Chevrolet trucks outside those model years, and Silverado 1500 models that are not HD, are not on this list. Confirm your vehicle’s year, model and trim before ordering.
What’s included
One steering damper. Brackets are not included.
Installation notes
Confirm the brackets you need before the install, since they are not part of this unit. Check the lower cantilever and upper eye against the mounting points on your truck.
