Overview

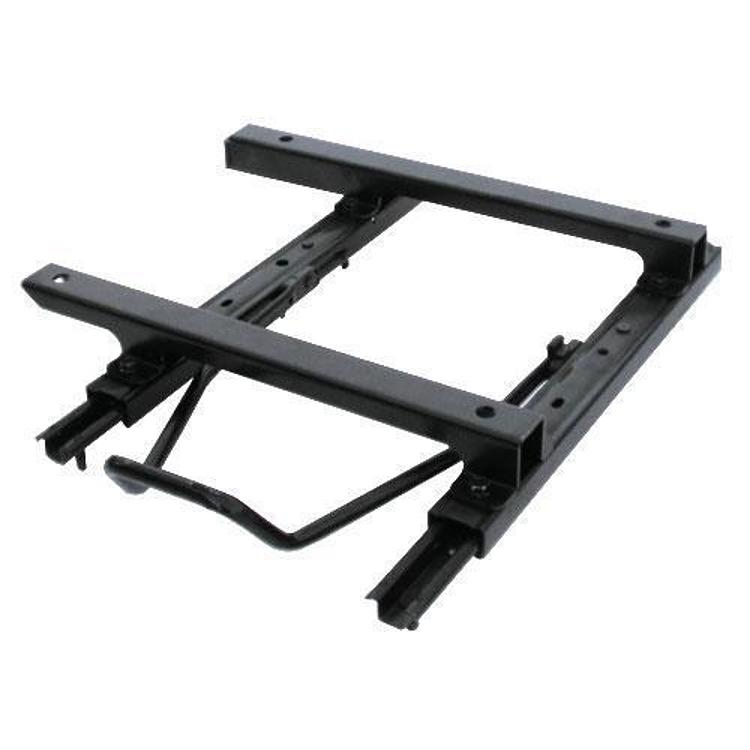

The Bestop 51245-01 is a black driver side, front left seat slider with adapter for Trailmax and Trailmax II seats. It attaches the seat to the vehicle riser and relocates the seat belt attachment, combining the slider and adapter in one bracket.
It fits 2004-2006 Jeep Wrangler (LJ) Unlimited and Unlimited Rubicon, and 2003-2006 Jeep Wrangler (TJ) in the 65th Anniversary Edition, Rubicon, SE, Sahara, Sport and X trims.
Key features
- Driver side, front left position
- Seat slider and adapter combined in one bracket
- Relocates the seat belt attachment
- No cutting or drilling needed for installation
- Installs with a T50 torx head
Seat and bracket matching
The slider and adapter work as one part of the seat mounting system, so matching the bracket to the seat matters as much as matching the vehicle. Trailmax and Trailmax II seats mount through this bracket, and the adapter also moves the seat belt attachment. Other seats have different mounting points and may not line up correctly, which can leave the belt anchored in the wrong spot.
Before installing, look over the seat frame and the riser for cracks or deformation. A driver side seat should sit square and lock fully in every position. If the seat rocks, the bracket or its fasteners should be checked before the vehicle is driven.
- Use the T50 torx head for all fasteners
- Check seat belt operation after installation
Specifications
| Brand | Bestop |
|---|---|
| Part number | 51245-01 |
| UPC | 7784802333 |
| Color | Black |
| Position | Front left (driver side) |
| Type | Seat slider and adapter bracket |
| Fastener | T50 torx head |
| Compatible seats | Trailmax and Trailmax II |
Vehicle fitment
It fits 2004-2006 Jeep Wrangler (LJ) Unlimited and Unlimited Rubicon models, and 2003-2006 Jeep Wrangler (TJ) models in several trims. Before ordering, match your year, model and trim to the vehicle you own.
Other Wrangler generations and the CJ and JK models are not covered by this list. Confirm your vehicle’s year, model and trim before ordering.
Installation notes
Installs with a T50 torx head and does not require cutting or drilling. Pair it with the passenger side bracket, 51248-01, for a two seat setup on 2003-2006 Wrangler applications.
What’s included
One driver side seat slider with adapter bracket.
Not included: The seat itself, which must be a Trailmax or Trailmax II to use this adapter.
