Overview

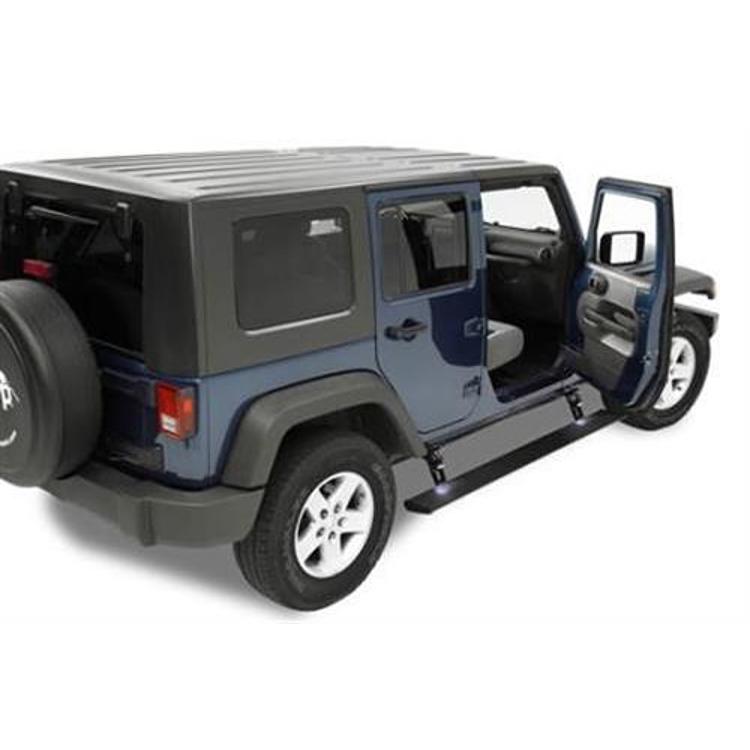

The Bestop PowerBoard, part number 75152-15, is an electric retractable running board for 4-door Jeep Wrangler Unlimited (JK) models from 2007 to 2018. It hides under the vehicle while the doors are closed and extends to meet your foot when a door opens.
Full-length boards work on every door, front and rear, driver and passenger. The newer torsion bar design starts retraction of the non-motorized linkage first, and the linkage drops the step about 4 inch down and 2 inch out to form a stair-step. The step descends up to 6 inches to a comfortable stepping height. Each board is rated at a 600 pound load capacity per side and carries a 3 year/36,000 mile warranty.
Key features
- Full-length boards with a 6.25 inch wide aluminum step and an ultra-durable, non-slip powdercoat surface.
- Torsion bar design begins retracting the non-motorized linkage before the motor finishes its travel.
- Patented high strength, die-cast aluminum linkage for the mounting arms.
- OEM validated motor and linkages, with the motor rated as OEM quality.
- Built-in anti-pinch safety feature that protects against trapped fingers and objects.
- Integrated LED light kit that lights the board automatically when it is needed.
- 600 pound load capacity per side.
Stair-step drop and clearance
A stair-step running board drops in two directions, which makes the step easier to reach but also changes the space it occupies at full travel. On a four-door Jeep, the rear boards need particular attention because the rear wheel arch and any rear bumper accessories can limit the swing. Check that the step clears these parts before relying on it for entry.
Trail use adds demands. Rocks, brush and mud can strike the lower edge of the step, and a board that is struck may bend or bind. Inspect the arms, the bar mounts and the fasteners after rough trail use, and keep the travel path clear of debris.
Once mounted, cycle the boards through several full trips with the doors open and closed. Pay attention to any change in sound or motion, and recheck the bolts after the first few drives, since fasteners can settle slightly as the mounts bed in.
- Check rear boards against wheel arch clearance
- Inspect arms and bar mounts after trail use
- Recheck bolts after the first few drives
Specifications
| Brand | Bestop |
|---|---|
| Part number | 75152-15 |
| UPC | 77848130367 |
| Door configuration | 4-door models |
| Finish | Black |
| Length | Cab |
| Fitment type | Direct Fit |
| Step width | 6.25 inch wide aluminum |
| Drop | About 4 inch down and 2 inch out; descends up to 6 inches |
| Load capacity | 600 pound per side |
| Warranty | 3 year/36,000 mile |
Vehicle fitment
It fits the 2007–2018 Jeep Wrangler (JK) Unlimited, including 70th Anniversary, 75th Anniversary, Rubicon, Sahara, Sport, Sport S and X trims.
Confirm fit for your vehicle’s year, model and trim before ordering. Two-door models need a different part.
Installation notes

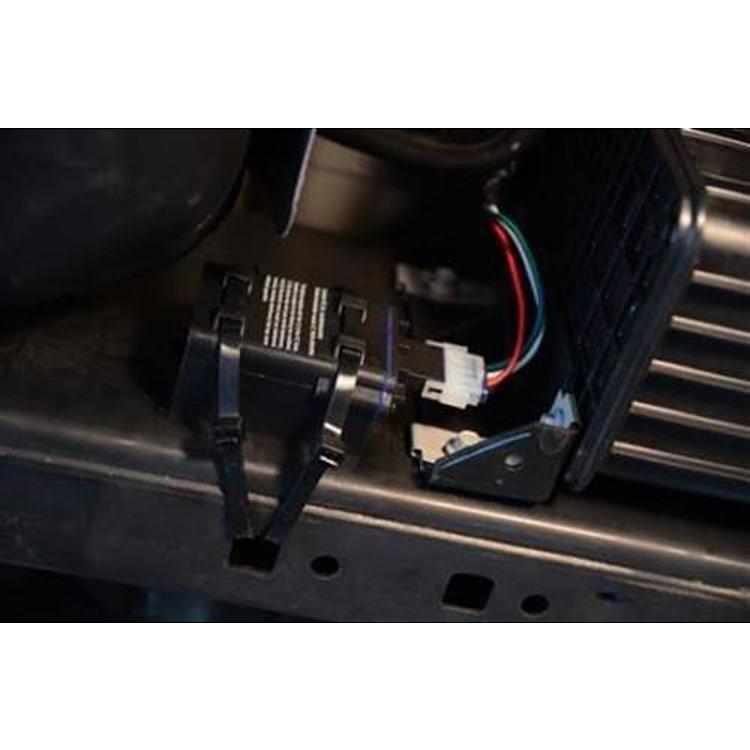

The kit includes a wiring harness with weatherproof connectors and a controller, along with the hardware needed for mounting. Keep hands and feet clear while the boards are moving, since they extend and retract automatically with the doors.
What’s included

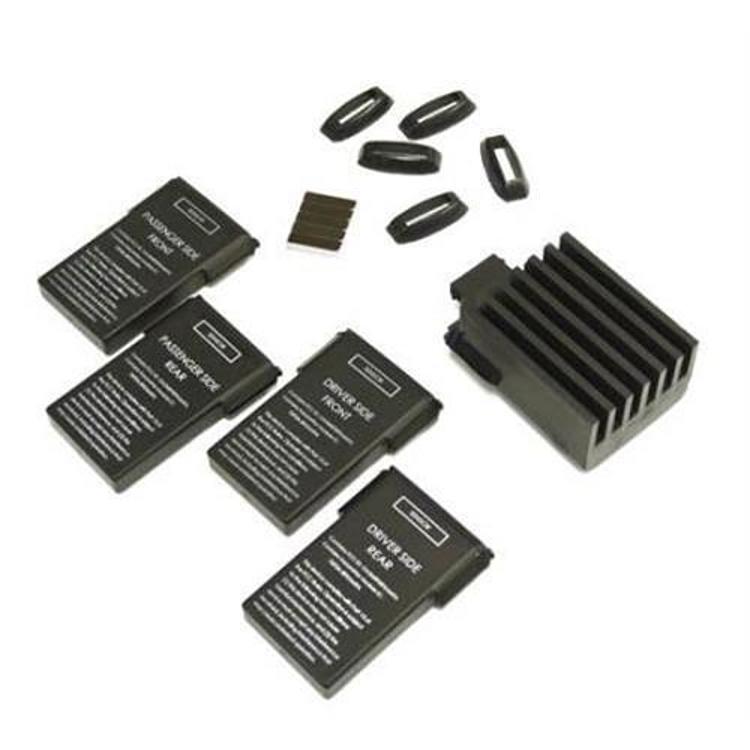

The complete kit includes two full length boards, an OEM quality motor, controller, hardware, a wiring harness with weatherproof connectors and an LED Light Kit.
