Baja Designs XL Racer Edition High Speed Spot LED Light – 680002

Baja Designs

Shop Baja Designs Light Pods on Amazon

Compare current versions and compatible options on Amazon, then check out with your Amazon account.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • High speed spot LED light for long-distance trail and race use
  • 4,300 lumens at 40 watts
  • Hard-anodized and powder-coated cast aluminum housing
  • 20 percent dimming feature built into the light

Description

Overview

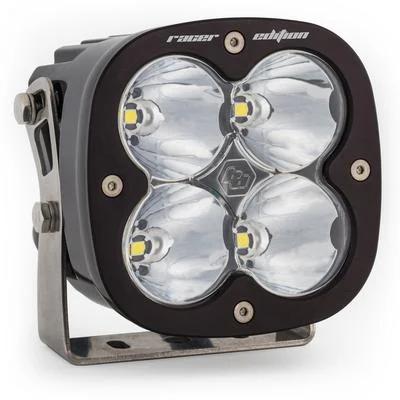

The Baja Designs XL Racer Edition High Speed Spot LED Light, part number 680002, is a single LED light pod built for long-distance spot lighting on trails and race courses. It produces 4,300 lumens at 40 watts. Baja Designs says its trademarked High Speed Spot reflector gives a longer, narrower beam than the company’s standard spot.

The XL Racer uses a high-intensity LED inside a hard-anodized and powder-coated cast aluminum housing. It throws light about 40 percent farther than the XL Pro and is rated for nearly 50,000 hours of use. It includes a 20 percent dimming feature and comes with a limited lifetime warranty.

The spot pattern is a four-beam focus designed to reach farther down the trail than a wider beam. The High Speed Spot works best alongside wide driving or driving/combo lights that cover the near field.

Key features

  • 4,300 lumens at 40 watts
  • Trademarked High Speed Spot reflector for a longer beam
  • Hard-anodized and powder-coated cast aluminum housing
  • 20 percent dimming feature
  • Rated for nearly 50,000 hours of life.

Choosing a beam mix

A long-reach spot is one part of a balanced setup. The narrow, focused pattern shows the trail far ahead, but it leaves the near field dim, which is why spot lights are usually paired with a wider driving or combo light. Think about the terrain you run most, since open desert trails and tight timber roads call for different reach and spread.

Because the light draws a meaningful load, relay and fuse planning matter. Keep the cable routed away from exhaust and hot components, and check the connections after the first runs for warmth or discoloration. Dimming can lower output when full brightness is not needed, which helps the driver adjust the light to the speed and surface. Re-aim the light whenever the mounting changes, since even a small shift moves the beam a long way down the trail.

  • Pair with wide driving or combo lights
  • Use a fused relay for the load
  • Re-aim after any bracket change

Specifications

Brand Baja Designs
Part number 680002
Series XL-R Racer Edition
Light type LED light pod, sold as a single light
Beam pattern High speed spot
Lumens 4,300
Watts 40
Amp draw 2.90 A
Dimming 20 percent dimming feature
Housing Hard-anodized and powder-coated cast aluminum

Vehicle fitment

The XL Racer is a universal fit and is not built for one vehicle. The High Speed Spot is meant to be used with wide driving or driving/combo lights, so plan the beam mix around the other lights on the vehicle.

Installation notes

At 2.90 amps the light is a higher-draw spot, so wire it through a fused circuit with a relay. Set the mounting and aim together with the other lights, and check local rules on driving lights before using it on a road vehicle.

What’s included

Check the package contents against your installation before starting, including a wiring harness and mounting bracket.

Questions & Answers

Is the Baja Designs 680002 a spot or flood light?

It is a high speed spot. It has a longer, narrower four-beam focus meant to reach farther down the trail, and it is designed to pair with wide driving lights.

How bright is the XL Racer Edition?

Baja Designs rates it at 4,300 lumens at 40 watts. It also includes a 20 percent dimming feature and is rated for nearly 50,000 hours.

What should I pair the XL Racer with?

It is designed to be used with wide driving or driving/combo lights, so the beam mix is balanced across the vehicle.

Does the dimming feature help the light last longer?

Dimming lowers output, which also lowers the heat the light produces. Using a lower setting when full brightness is not needed can reduce the strain on the wiring and housing over time. Use full output when the trail or race conditions call for it.

How do I keep a high-draw spot from overheating the wiring?

Use a fused relay and wire gauge suited to the current draw, and keep every connection tight and dry. Route the cable away from exhaust and hot components. Check connectors for discoloration after the first few runs and replace any that show heat damage.
