Overview

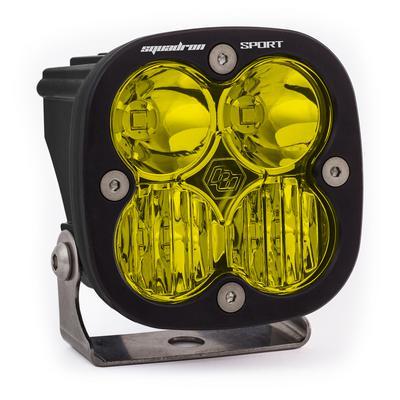

The Baja Designs Squadron Sport Driving/Combo LED Light in amber, part number 550013, is a single auxiliary light that uses four LEDs to produce 3,150 lumens at 26 watts. It is built for near-field, side, backup and scene lighting rather than long-range driving, and it shares its look with the Squadron Pro.
The housing uses a billet machined aluminum bezel and a hard-coated polycarbonate lens. The light carries an IK10 impact rating and an IP69K waterproof rating, and built-in overvoltage protection is included. A limited lifetime warranty applies.
Baja Designs gives an LED life expectancy of 49,930 hours and an amp draw of 2 amps. Those figures matter when several auxiliary lights share a switch, because the draw adds up across the circuit.
Key features
- Four LEDs in a single amber driving/combo light
- 3,150 lumens at 26 watts
- Designed for near-field, side, backup and scene use
- Billet machined aluminum bezel and hard-coated polycarbonate lens
- IK10 impact and IP69K waterproof ratings
Planning the wiring circuit
Auxiliary lights are easiest to live with when the circuit is planned as a whole. Each light draws current, and a switch that runs several of them needs a fuse and wire sized for the combined load. Run the positive lead from the battery through a relay where possible, so the switch carries only a small control signal. Ground the light to clean bare metal, because a poor ground causes dim output and flicker that look like a faulty light.
Mounting for near-field and side work is different from a long driving beam. A light placed low on a bumper or pillar throws useful light around the vehicle, and angling it slightly down keeps glare out of the eyes of anyone nearby. Consider how the lens will be hit by brush and gravel, and keep the housing clear of the tire and any recovery gear. Re-check the bracket after rough trail runs.
- Use a fuse close to the battery
- Check ground connections for corrosion
- Keep spare wire clear of the steering column
Specifications
| Brand | Baja Designs |
|---|---|
| Part number | 550013 |
| Series | Squadron Sport |
| Light color | Amber |
| Beam pattern | Driving combo |
| Lumens | 3,150 |
| Watts | 26 |
| Amp draw | 2 A |
| Bezel | Billet machined aluminum |
| Lens material | Hard-coated polycarbonate |
| LED life expectancy | 49,930 hours |
| Waterproof rating | IP69K |
| Impact rating | IK10 |
Vehicle fitment
The light is a universal fit and is not made for one vehicle. Because its job is near-field and side lighting, the mounting position is the main installation choice, and the bracket and cable route should be planned for each vehicle.
Installation notes
Because the light comes without a harness, the wiring must be planned before mounting. Use the Baja Designs harness 640117 or an equivalent fused circuit, and route the cable away from heat and moving parts. Check local rules on auxiliary lights before using it on a road vehicle.
What’s included
No wiring harness comes with this light. It is not supplied with a harness.
Not included: wiring harness. Baja Designs part 640117 is the harness the company names for this light.
