Overview

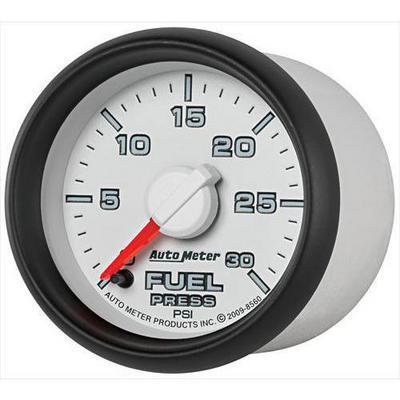

The Auto Meter AMG8560 is a 2 1/16 inch fuel pressure gauge from the Factory Match Dodge series. It fits the 2003–2009 Dodge Ram 2500 and Ram 3500.
The gauge has green illumination, a white face and an orange pointer, which makes readings easy to see at a glance. Units are standard.
Key features
- Fuel pressure reading in a 2 1/16 inch gauge
- Orange pointer for quick glance readings.
- Green illumination with a white face
- Factory Match Dodge series styling
Wiring a truck pressure gauge cleanly
A fuel pressure gauge depends on a sensor that sits in the fuel line, so the install is part plumbing and part wiring. Plan the route before drilling or clamping anything. Keep the sensor line away from exhaust heat, sharp edges and moving parts. Use the correct fittings for the sensor, and wrap or sleeve the wiring so it stays dry and secure.
Fuel pressure readings can wander if a connection is loose or a line is kinked, so check every fitting for leaks before starting the engine. Recheck the clamps after the first few drives, since vibration can loosen them. Keep the gauge’s power source fused, and label the wires so later service stays simple. When a reading looks off, check the sensor and its connections before the gauge itself.
Specifications
| Brand | Auto Meter |
|---|---|
| Part number | AMG8560 |
| Gauge type | Fuel pressure |
| Gauge series | Factory Match Dodge |
| Gauge mounting size | 2 1/16 inches |
| Illumination | Green |
| Face color | White |
| Pointer color | Orange |
| Units | Standard |
Vehicle fitment
It fits the 2003–2009 Dodge Ram 2500 (Laramie, Power Wagon, SLT, ST, SXT, Sport and TRX4) and the 2003–2009 Dodge Ram 3500 (Laramie, SLT, ST, SXT, Sport and TRX4).
Models outside the Ram 2500 and Ram 3500 entries are not on this list. Confirm your vehicle’s year, model and trim before ordering.
Installation notes
A fuel pressure gauge reads a sensor in the fuel system. Confirm which sensor your truck uses and plan the wiring before installing the gauge.
What’s included
The gauge is the only item covered here, so check that a sensor, bracket and wiring are on hand before starting the install.
