Overview

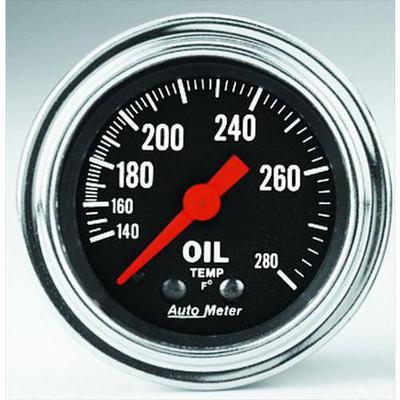

The Auto Meter AMG2441 is a Traditional Chrome mechanical oil temperature gauge with a 2 1/16 inch mounting size and an analog display. It has white illumination on a black face and is universal fit, so it is not matched to one make, model or year.
The gauge uses a rugged air core meter with a precision movement and carries a 1 year limited warranty. Confirm the movement type and sender connection before installing.
Key features
- Analog oil temperature display
- White illumination on a black face
- 2 1/16 inch gauge mounting size
- Traditional chrome styling
- 1 year limited warranty
Reading oil temperature on the trail
An oil temperature gauge gives early warning when the engine oil runs hotter than usual, which often happens during slow climbs, long grades and hot weather driving. Oil carries heat away from bearings and the valvetrain, so a rising reading is worth noticing before it reaches levels that break down the lubricant. Watching the needle trend over a drive is more useful than checking a single reading at idle.
Mechanical gauges like this one draw no power from the electrical system, but the sender and tubing still need to be routed and secured away from exhaust heat and moving parts. Inspect the sender connection for leaks or chafing during routine maintenance, and recheck the mounting nut after the first few drives. When the reading climbs faster than before under the same load, check the oil level and cooling system first.
Specifications
| Brand | Auto Meter |
|---|---|
| Part number | AMG2441 |
| Gauge type | Oil Temperature |
| Gauge series | Traditional Chrome |
| Electric or mechanical | Mechanical |
| Analog or digital | Analog |
| Gauge mounting size | 2 1/16 inches |
| Illumination | White |
| Face color | Black |
| Units | Standard |
| Warranty | 1 year limited |
| Fitment | Universal Fit |
Vehicle fitment
Universal fit is the stated fitment, so the gauge is not matched to one make, model or year. Check the 2 1/16 inch opening and the connection before installing.
No vehicle, year or trim is named for this gauge. Confirm your vehicle’s year, model and trim before ordering.
Installation notes
The oil temperature connection needs to be checked against your sender and wiring before mounting the gauge.
What’s included
Review the package contents against your mounting setup before starting work.
