Overview

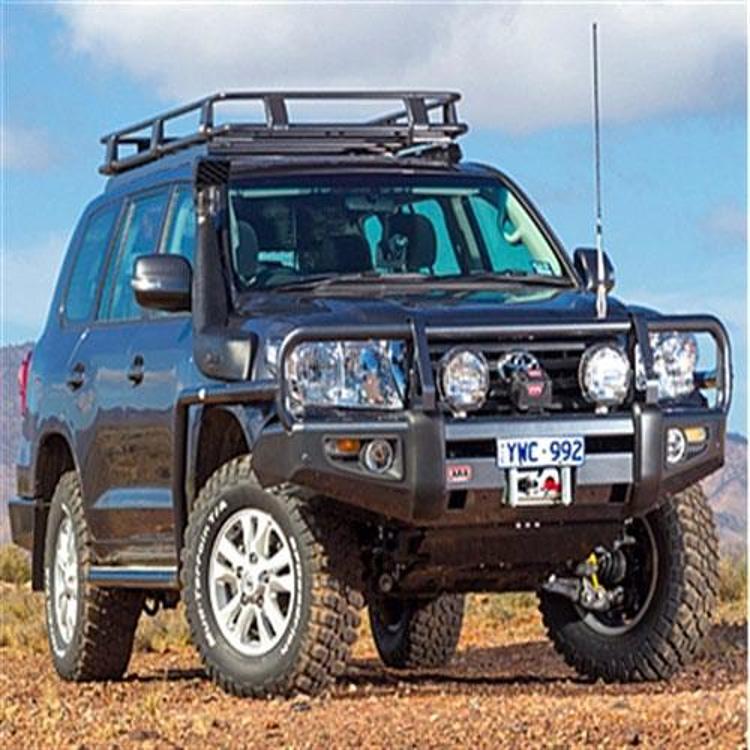

The ARB Deluxe Bull Bar Winch Mount Front Bumper, part number 3415150, is a black powder coated steel front bumper with a winch mount for the 2013 Toyota Land Cruiser. It is air bag approved and has recessed indicators and recessed fog lamps.
ARB says its bull bars use a fully engineered mounting system that completely replaces the factory bumper, and that the Deluxe selection is the most extensive it offers. This bar has tow points, light mounts and antenna mounts. The winch mount and a D-ring mount are included.
Key features
- Winch mount included
- Air bag approved
- Recessed indicators
- Recessed fog lamps
- Tow points
- Light mounts and antenna mounts
Lighting and recovery layout
The bar carries a winch mount, a D-ring mount, light mounts and antenna mounts, so it is a busy front end. Plan where each item sits before drilling anything. Keep the winch mount and fairlead centered, place antenna and light mounts clear of the winch cable path, and check that every cable has room to move as the suspension travels.
Recessed fog lamps add light without sticking out from the bar, but the wiring for them still needs care. Route it through a protected channel, use grommets where it passes through metal, and secure it away from heat sources. Regular inspection of connectors and grounds helps prevent flicker or failure on the trail.
- Plan mount positions before drilling
- Keep the winch cable path clear of antenna wiring
- Use grommets where wires pass through steel
- Inspect ground connections after each season
Specifications
| Brand | ARB 4×4 Accessories |
|---|---|
| Part number | 3415150 |
| UPC | 9332018018700 |
| Product type | Deluxe bull bar, winch mount front bumper |
| Position | Front |
| Width | Full |
| Material | Steel |
| Finish | Powder coat, black |
| Winch mount | Included |
| D-ring mount | Included |
| Light mounts | Included |
| Antenna mounts | Included |
| Air bag | Approved |
| Fitment type | Direct fit |
Vehicle fitment
The bar is made for the 2013 Toyota Land Cruiser (Base).
The bar is for 2013 only, so the 1990–1997 80 Series and the 1969–1985 trucks fall outside it. Match your year, model and trim to this bar before ordering.
What’s included
- Winch mount bull bar
- Light mounts
- Antenna mounts
- D-ring mount
Not included: The winch and the lights.
