AMI Antenna Adapter (Billet Aluminum) – 6205

AMI

Shop AMI CB Antennas Mounts on Amazon

Compare current versions and compatible options on Amazon, then check out with your Amazon account.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • AMI billet aluminum antenna adapter, part number 6205
  • 1/4-20 male to 6mm male threads
  • Universal, with a list of compatible antenna part numbers

Description

Overview

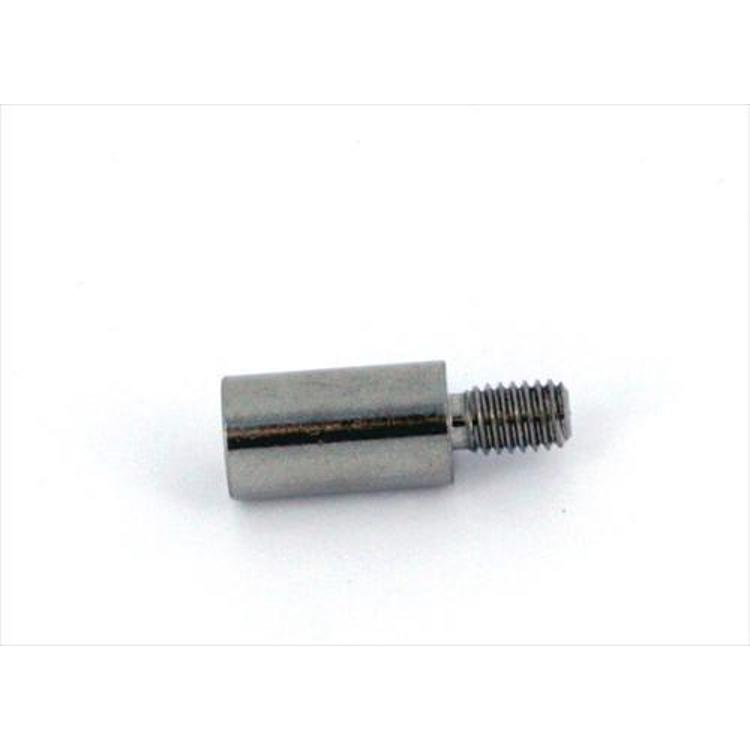

The AMI 6205 is a billet aluminum antenna adapter with a 1/4-20 male thread on one end and a 6mm male thread on the other. It is listed individually and does not include an antenna.

The adapter works with the antenna part numbers 8821F, 8215F, 8212F, 8209F, 8206F, 5221R, 5215R, 5212R, 5209R, 5206R, 7221R, 7215R, 7212R, 7209, 7206R, 6221P, 6215P, 6209P and 6206P. Match your antenna to one of them before ordering. It is universal and not vehicle-specific.

Key features

  • Billet aluminum construction
  • 1/4-20 male to 6mm male threads
  • Used with the antenna part numbers listed in the specifications

Thread matching and mounting

Billet aluminum adapters are machined from solid stock, which keeps the threads crisp and the body stiff. That rigidity helps when an antenna has some weight at the tip, since the joint carries the load at every bump. A solid fit still depends on clean threads at both ends.

When matching an antenna to this adapter, look at the thread size and the part number on the antenna itself. Antenna mounts can differ between body styles, so a part that fits one vehicle may not sit level on another. Test the fit on the bench before the vehicle is involved.

Keep spare thread caps or a small plug in the glovebox if the antenna is removed during car washes or trailer use. Dust in the threads makes the next install harder, so wipe them before refitting.

  • Match the antenna part number first
  • Keep threads clean and dry
  • Test fit before final tightening

Specifications

Brand AMI
Part number 6205
UPC 660936166166
Type Antenna adapter
Material Billet aluminum
Thread, one end 1/4-20 male
Thread, other end 6mm male
Compatible antenna part numbers 8821F, 8215F, 8212F, 8209F, 8206F, 5221R, 5215R, 5212R, 5209R, 5206R, 7221R, 7215R, 7212R, 7209, 7206R, 6221P, 6215P, 6209P, 6206P

Vehicle fitment

This is an accessory adapter, not a vehicle-specific part, so no vehicle years or models are named. Compatibility depends on the antenna’s part number.

Installation notes

Use the 6mm male end with an antenna that has 6mm female threads, and the 1/4-20 male end with a 1/4-20 female mount or fitting.

What’s included

The adapter is listed individually. The antenna is not included.

SKU: ASM6205 Category:

Specification

Shipping weight 0.02 lbs
Package dimensions 2.80 × 2.00 × 0.80 in
brands

Questions & Answers

What does the AMI 6205 adapter connect?

It has a 1/4-20 male thread on one end and a 6mm male thread on the other. It is made of billet aluminum and is listed individually, so the antenna itself is not included.

Which antennas work with the 6205 adapter?

The compatible antenna part numbers are 8821F, 8215F, 8212F, 8209F, 8206F, 5221R, 5215R, 5212R, 5209R, 5206R, 7221R, 7215R, 7212R, 7209, 7206R, 6221P, 6215P, 6209P and 6206P. Match your antenna to one of these numbers before ordering.

What are the part number and UPC?

The part number is 6205 and the UPC is 660936166166. Match the antenna's part number to one on the compatible list before ordering, since the adapter is universal and not vehicle-specific.

How should the threads be kept in good condition?

Keep both thread ends clean and dry, and wipe off grit before threading parts together. Start threads by hand to avoid cross-threading, and inspect for burrs or dents that could prevent a snug fit.
