Overview

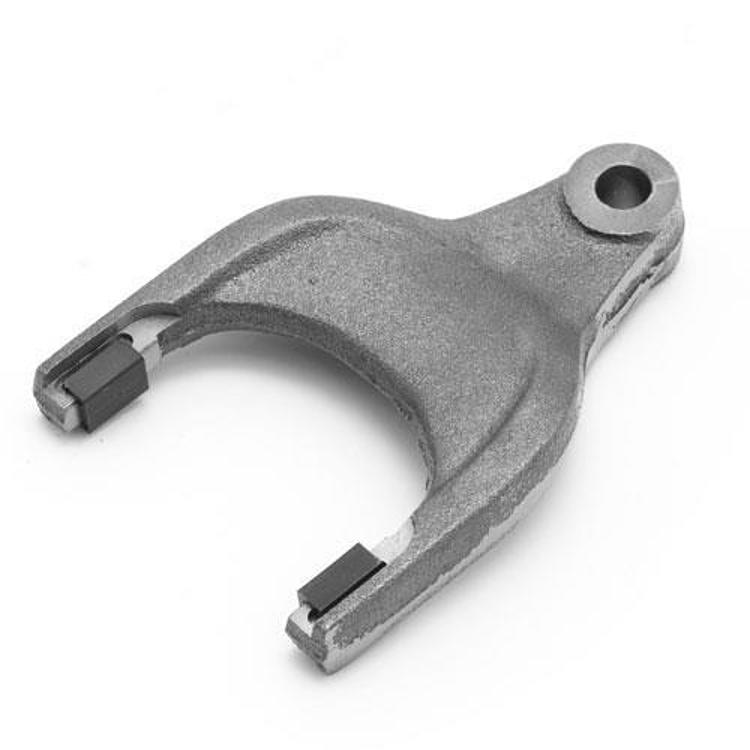

The Alloy USA Dana 30/44 Cast Iron Shift Fork, part 450100, is a replacement axle disconnect fork for all Dana 30 and 44 axles. It is meant to replace an old, worn aluminum fork and its pads with a cast iron unit that includes new pads.
It fits 1984–1991 Jeep Cherokee XJ and 1987–1995 Jeep Wrangler YJ models.
Key features
- Cast iron upgrade over the aluminum original
- Includes shift fork pads
- Works with all Dana 30 and Dana 44 axles
- Direct fit replacement
Before you install the fork
A disconnect shift fork moves the collar that engages the axle shaft, so wear in the fork or pads can make shifting hard or cause the collar to bind. Check the fork’s contact face and the pads for grooves or flat spots, and make sure the shift rod and the cable or actuator move freely. Replace the pads together with the fork, since worn pads are often the reason the fork wears quickly.
Cast iron forks hold up better than aluminum under repeated shifting, but they still need a clean, lightly lubricated contact area. Clean the shift rail and the collar before fitting the new pads. Shifting into and out of four-wheel drive should feel smooth once the new fork is in place. Keep the old fork until the new one is confirmed to move freely.
Specifications
| Brand | Alloy USA |
|---|---|
| Part number | 450100 |
| Manufacturer number | ALY450100 |
| UPC | 804314226367 |
| Material | Cast iron |
| Included | Shift fork pads |
| Axles | Dana 30 and Dana 44 |
| Fitment type | Direct fit |
Vehicle fitment
It fits the Cherokee and Wrangler YJ families: 1984–1991 Jeep Cherokee (XJ) and 1987–1995 Jeep Wrangler (YJ).
This fork is for the Cherokee and Wrangler YJ families. Confirm your vehicle’s year, model and trim before choosing this part, since other Dana 30 or 44 disconnects may use a different fork.
What’s included
One cast iron shift fork with pads.
