Overview
The Crown Automotive Axle Disconnect Fork Kit, part 5252599, is a complete set of parts for rebuilding the shift fork area of a Dana 30 disconnect. It fits the 1984–1992 Jeep Cherokee XJ and the 1987–1995 Jeep Wrangler YJ.

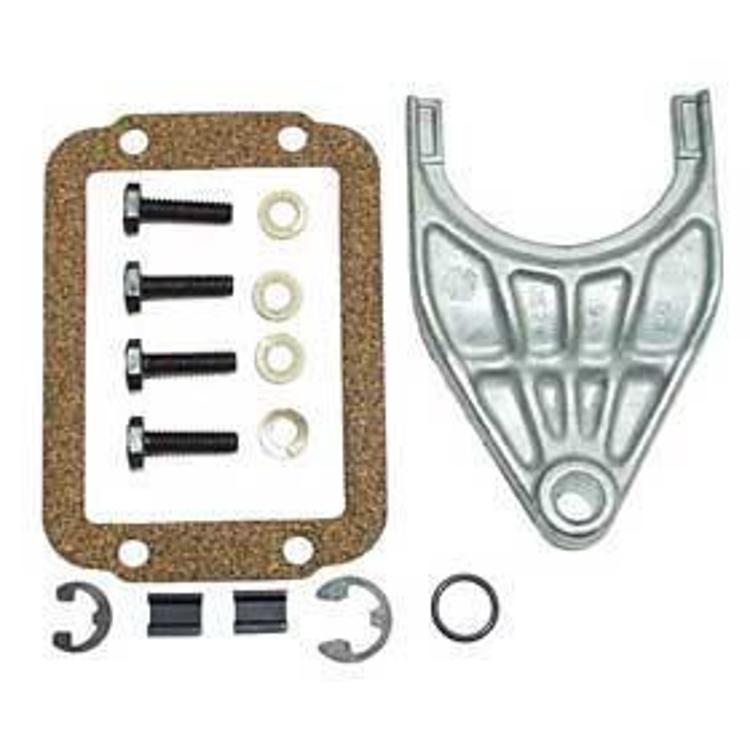

The kit includes the shift fork, inserts, snap rings, gasket and housing bolts, so the fork area parts come together in one kit.
Key features
- Complete kit with shift fork, inserts and snap rings
- Gasket and housing bolts included
- Made for Dana 30 disconnect models
- Fits the 1984–1992 Cherokee XJ and 1987–1995 Wrangler YJ.
Shift fork and disconnect wear
A disconnect lets the front wheels be uncoupled from the axle shafts, and the shift fork moves the sleeve that engages or releases the hub. When the fork or its inserts wear, the sleeve may not travel fully, leaving the hub partly engaged or hard to lock. Wear often builds slowly, so changes in engagement feel are worth noting before a rebuild becomes urgent.
During a rebuild, inspect the sleeve, the fork face and the inserts for wear and grooves, and confirm the snap rings sit fully in their grooves. Clean the housing thoroughly before fitting the gasket, and tighten the housing bolts evenly to the specified torque. Test the disconnect engagement before returning the vehicle to regular use.
- Hub that will not lock or release fully
- Grinding during shifts of the disconnect
- Fluid leaking from the housing
Specifications
| Brand | Crown Automotive |
|---|---|
| Part number | 5252599 |
| Manufacturer number | CRO5252599 |
| UPC | 848399010527 |
| Axle | Dana 30 disconnect |
| Included | Shift fork, inserts, snap rings, gasket, housing bolts |
| Fitment type | Direct fit |
Vehicle fitment
It fits the 1984–1992 Jeep Cherokee (XJ) and the 1987–1995 Jeep Wrangler (YJ).
Confirm your vehicle’s year, model and trim, and that it has a Dana 30 disconnect, before choosing this part.
Installation notes
A rebuild of this kind is more involved than a single-part swap. Use the included gasket and housing bolts as supplied, and work on a Dana 30 disconnect only.
What’s included
Shift fork, inserts, snap rings, gasket and housing bolts.
