Overview

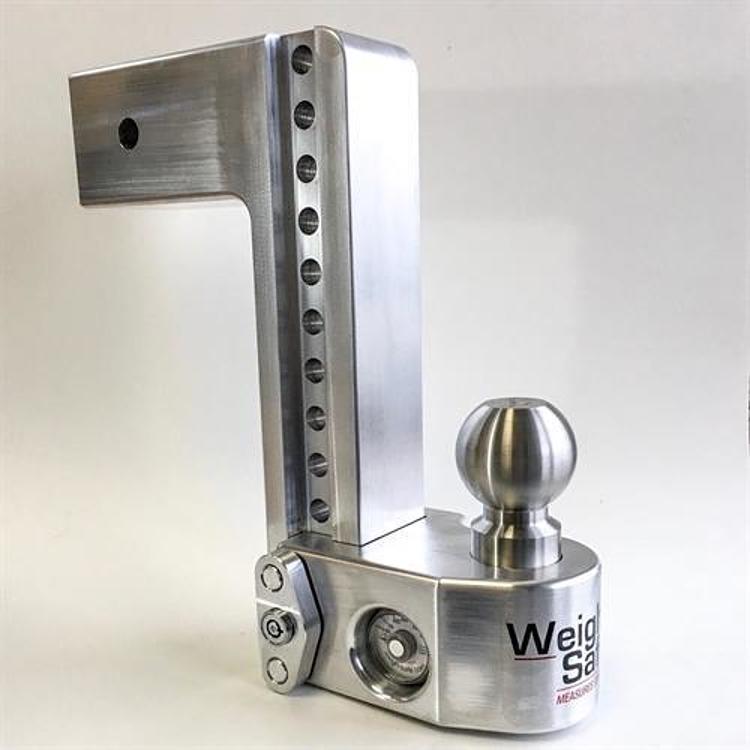

The Weigh Safe 10 inch adjustable ball mount, part number WS10-3, is a 3-inch shank hitch ball mount with a built-in scale for measuring tongue weight. It adjusts from an 11-inch rise to a 10-inch drop in 1-inch increments and is milled from solid billet 6061 T6 aluminum.
Weigh Safe, LLC is a family-owned and operated company based in Utah, and it is part of the family of companies that make up Leap Innovations. The mount includes both 2-inch and 2-5/16-inch stainless steel balls and carries a 21,000 LBS max gross trailer weight with the 2-5/16-inch ball.
Key features
- Built-in scale measures tongue weight
- Adjustable from an 11-inch rise to a 10-inch drop in 1-inch increments
- Milled from solid billet 6061 T6 aluminum
- Includes 2-inch and 2-5/16-inch stainless steel balls
- Rated 2,200 LBS max tongue weight; V5 and J684 certified
Setting the right drop
Drop and rise decide how level the trailer sits when it is hitched. A trailer that sits nose-down can push weight onto the rear axle of the tow vehicle and reduce steering control, while a nose-up trailer can lighten the front end. Adjusting the height in one-inch steps lets you fine-tune the setting for each combination of truck and trailer.
When setting the height, couple the trailer as it will tow and check the level from the side. Make small changes and recheck, since the trailer’s ride height can change once cargo is loaded. Hitch height also affects the scale reading, so measure after the trailer is level.
Inspect the mount before each tow for cracks, bent parts, loose bolts and wear on the ball. Pay attention to the shank and the adjustment area, and replace any damaged part before towing.
- Check the trailer is level after each height change
- Recheck the setting once cargo is loaded
- Inspect the ball and hardware before each tow
Specifications
| Brand | Weigh Safe Hitches |
|---|---|
| Part number | WS10-3 |
| UPC | 653863201994 |
| Shank size | 3 inches x 3 inches |
| Adjustment | 11-inch rise to 10-inch drop, 1-inch increments |
| Mount material | 6061 T6 aluminum, milled from solid billet |
| Finish | Polished |
| Balls | 2-inch and 2-5/16-inch stainless steel |
| Max gross trailer weight | 21,000 LBS with 2-5/16-inch ball |
| Max tongue weight | 2,200 LBS |
| Certification | V5 and J684 |
Vehicle fitment
Check your receiver against the 3-inch shank and confirm the tow vehicle ratings cover the trailer load before installing.
What’s included
The package includes both 2-inch and 2-5/16-inch stainless steel balls. Check the package contents against your installation before starting.
