Overview

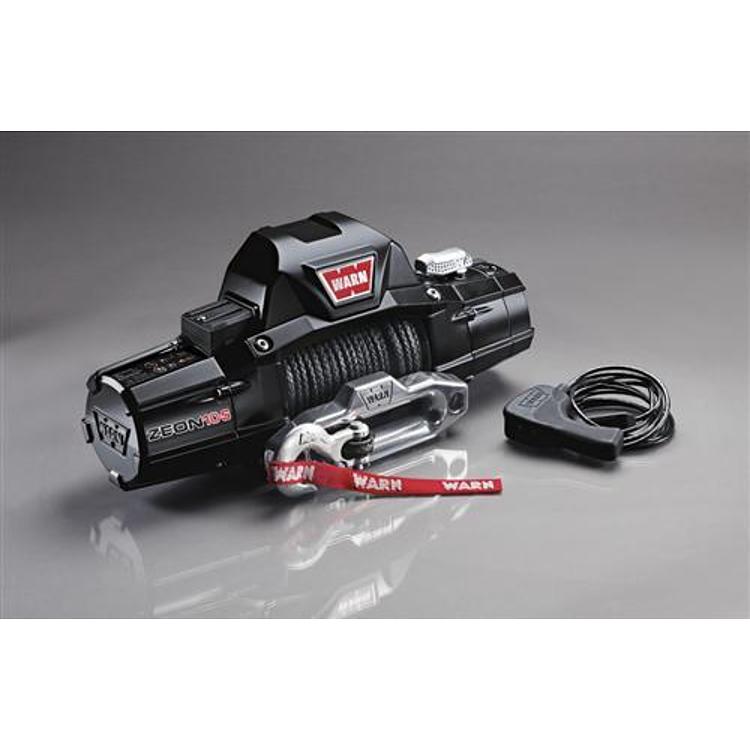

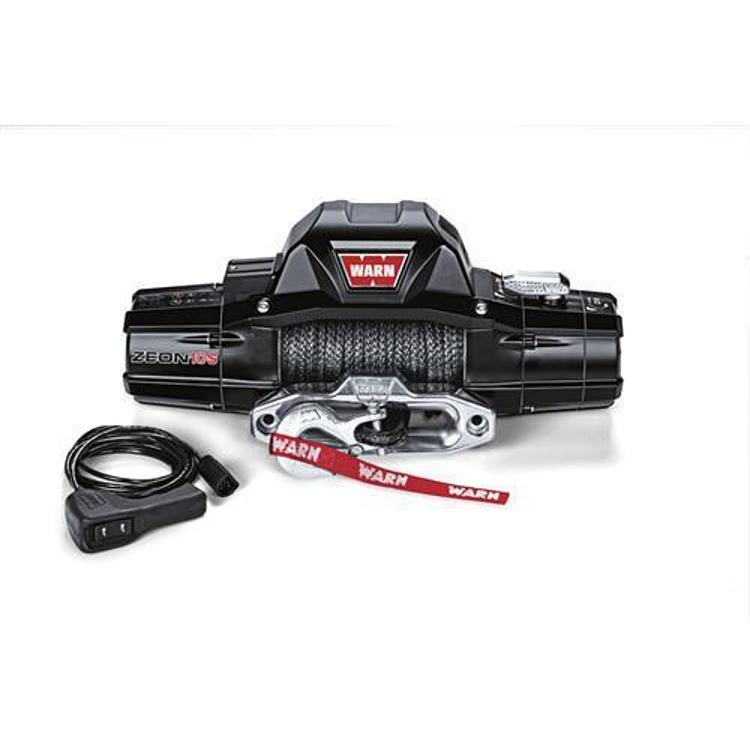

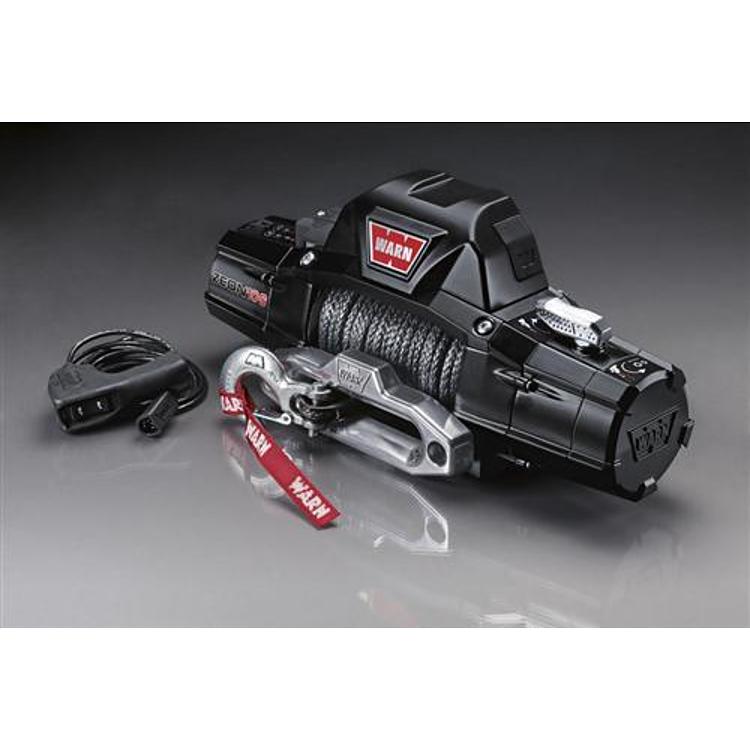

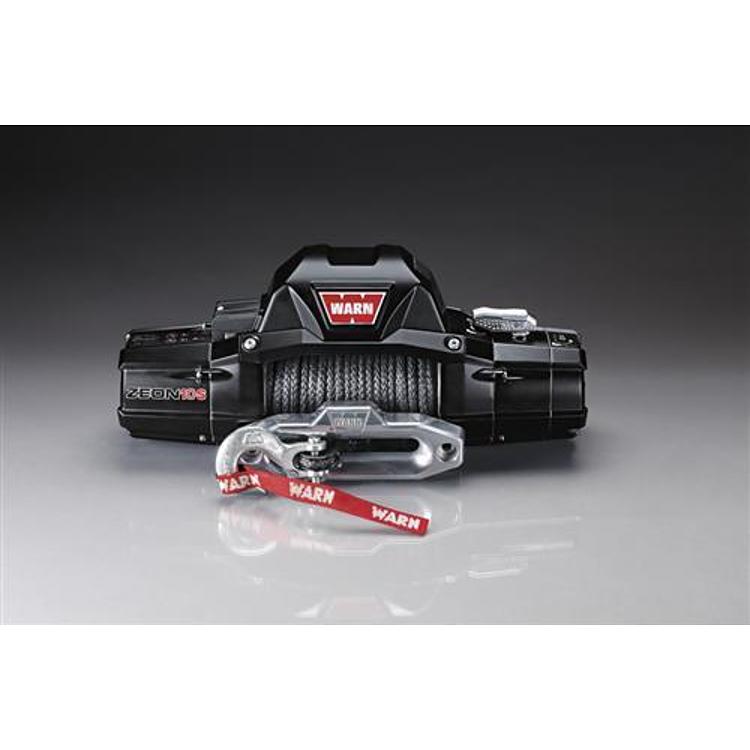

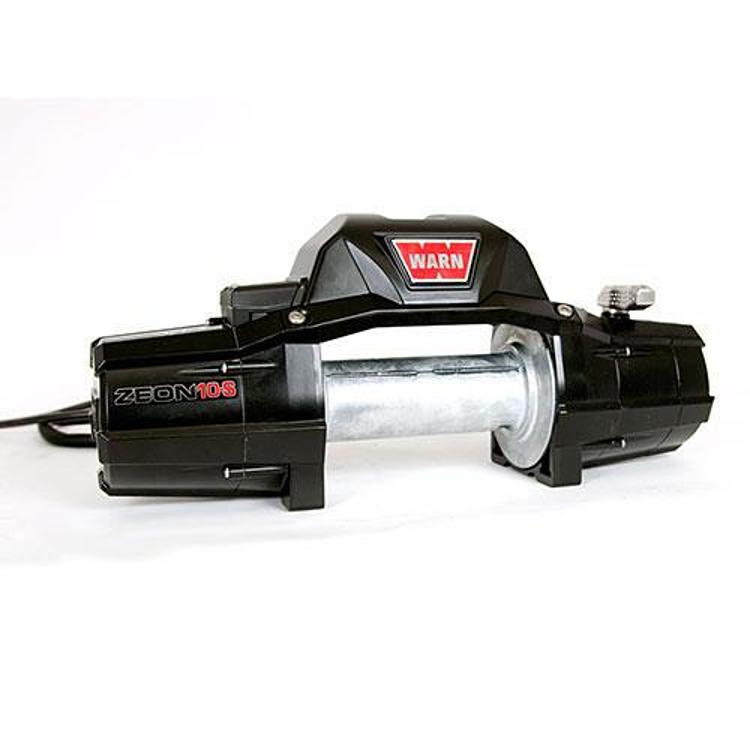

The Warn ZEON 10-S is a 10000 lb electric recovery winch, part number 89611, supplied with 100 ft of 3/8 Spydura synthetic rope and a remote switch with a 12 ft lead. It has a 12V series-wound motor and a 216:1 gear ratio. ZEON is Warn’s newer winch family, and Warn says its internal components, planetary geartrain and sealing were upgraded over earlier designs.
A recovery winch like this is mounted to the front of a vehicle and pulls it out of mud, sand or a ditch by reeling rope onto its drum. Match the 10000 lbs rated line pull to your vehicle’s weight and the load you expect, and confirm that 100 ft of rope reaches the anchor point you plan to use.
Key features
- Planetary geartrain with a series-wound motor, which Warn describes as fast, quiet and reliable pulling power

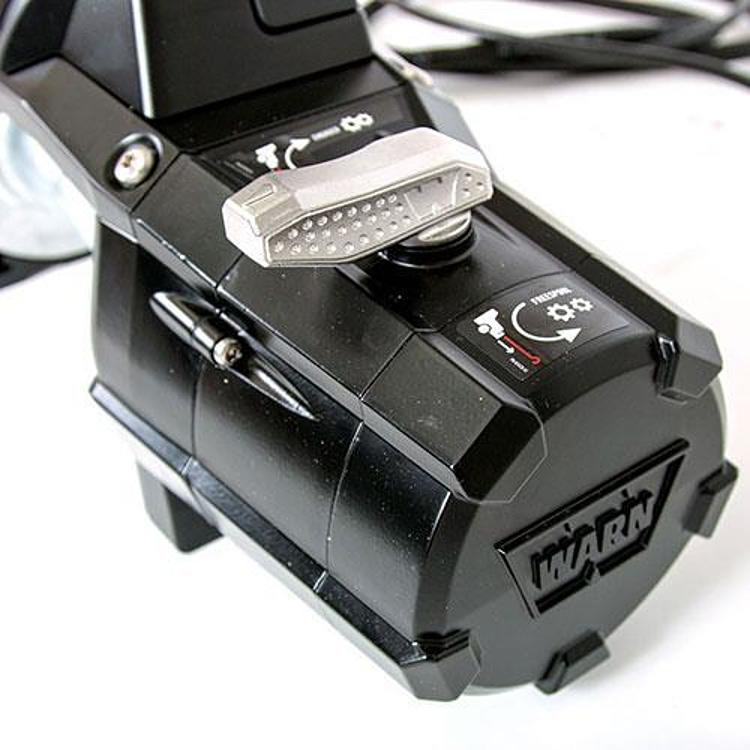

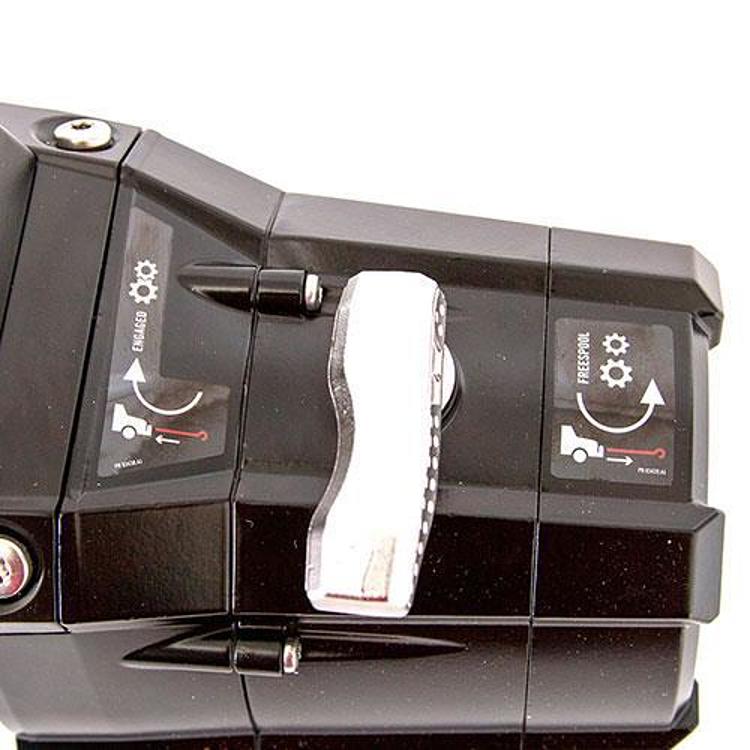

- Satin-black powder-coated finish with stainless steel fasteners and clutch lever

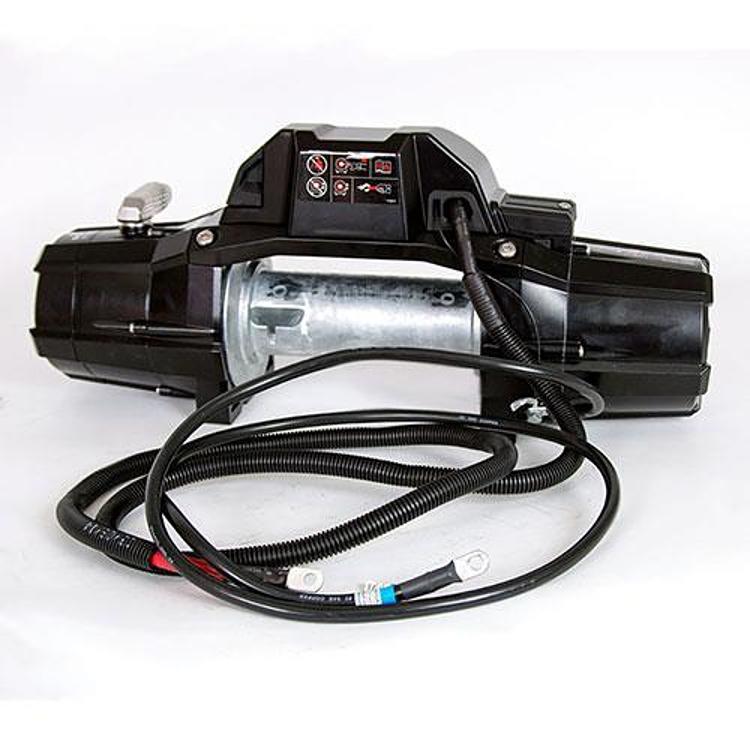

- Convertible control pack that can be attached to the winch or mounted remotely
- Large diameter aluminum drum that reduces rope wear and includes an integrated rope anchor
- IP68 rated sealing, which Warn says keeps the elements out

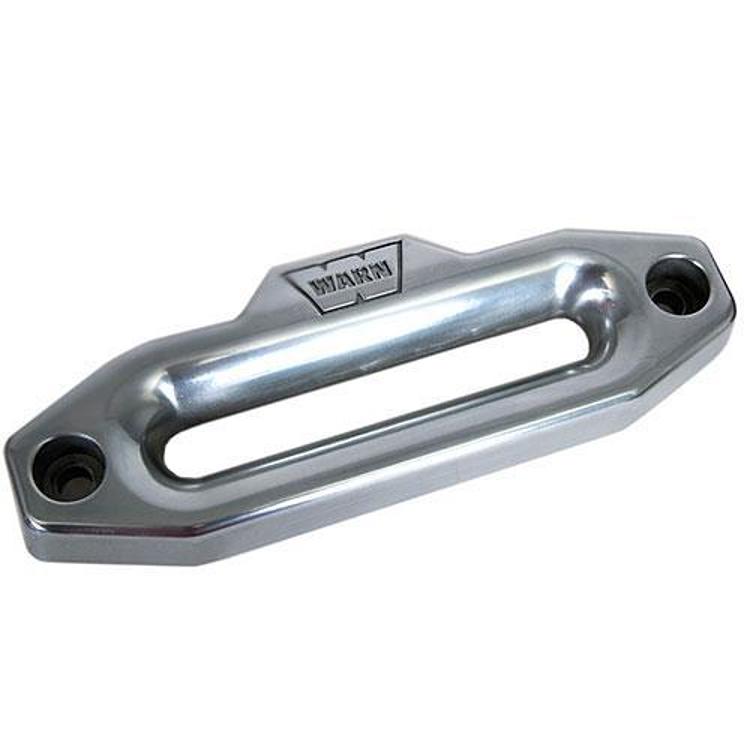

- Hawse fairlead
Choosing a mounting position
The mounting point matters as much as the winch itself. A bumper or winch plate has to carry the pulling load in line with the vehicle frame, so the mount should be rated for the winch and stay square to the drive direction. Measure the space behind the bumper and check clearance for the control pack before settling on a layout.
Thinking about the control pack early helps. A pack mounted on the winch keeps wiring short and simple. A remote pack can be placed where it is easier to reach while you stand clear of the rope, but it needs its own mounting spot and cable run. Keep the remote lead away from hot exhaust parts and moving suspension components, and route it so it cannot snag on brush during a recovery.
- Confirm the mount is rated for winching loads
- Keep hands and clothing clear of the rope and drum
- Route cables with fuses close to the battery
Specifications
| Brand | Warn |
|---|---|
| Model | ZEON 10-S |
| Part number | 89611 |
| UPC | 12748896111 |
| Rated line pull | 10000 lbs |
| Motor | 12V, series-wound |
| Gear ratio | 216:1 |
| Winch type | Electric |
| Size | 24.25 in x 7.15 in x 10.52 in |
| Weight | 75 lbs |

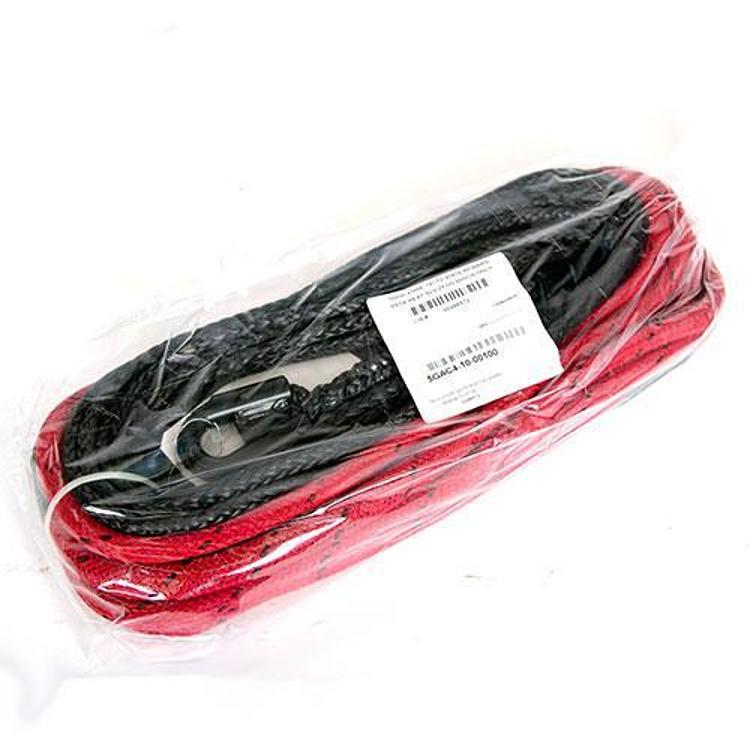

| Synthetic rope | 100 ft of 3/8 Spydura rope |
| Fairlead | Hawse |

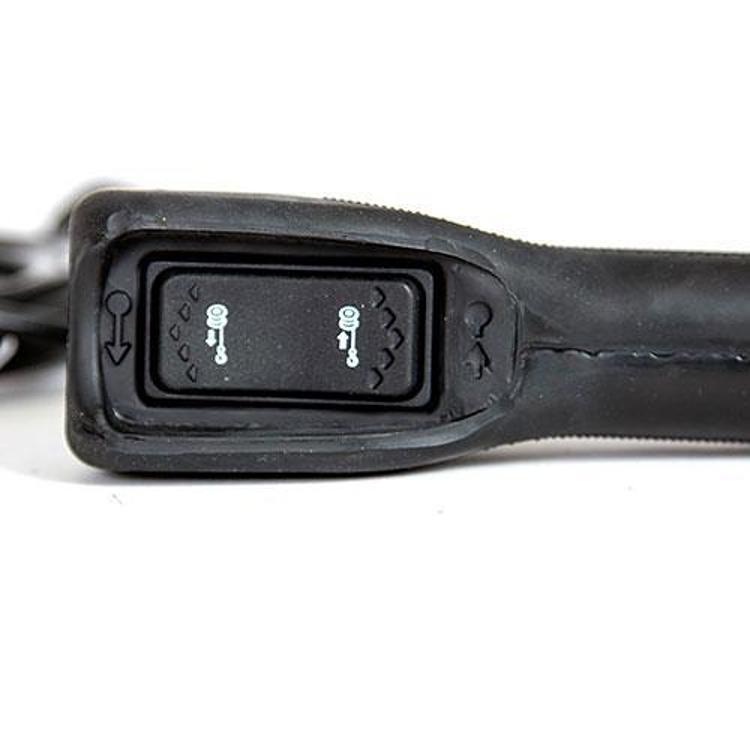

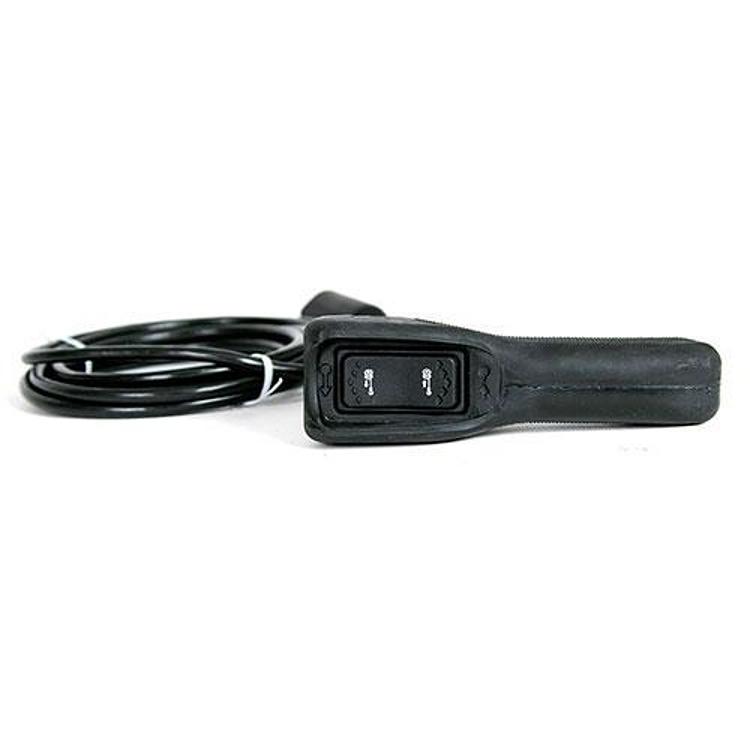

| Remote control | Remote switch, 12 ft lead |
| Finish | Satin-black powder coat |
| Sealing | IP68 |
| Warranty | WARN Limited Lifetime Warranty |
Vehicle fitment
No vehicle years or models are named for the ZEON 10-S. The manufacturer fitment field reads Universal Fit without naming a vehicle, so check the bumper or mount you plan to use against your vehicle before ordering.
Confirm your vehicle’s year, model and trim before ordering.
Installation notes
The control pack can be mounted to the winch or remotely, and remote mounting requires a relocation kit that is sold separately. Keep fingers and clothing away from the rope and drum whenever the winch is powered.

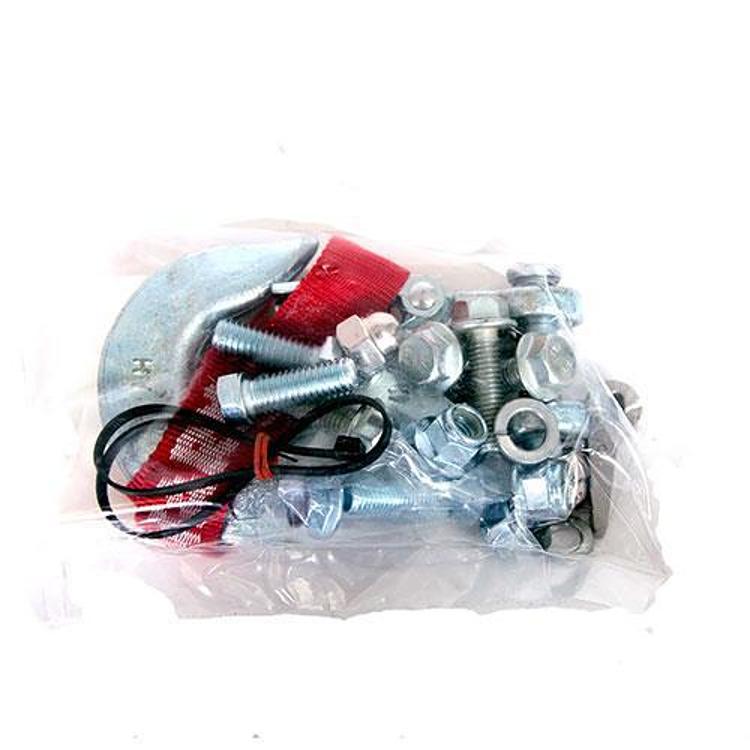

What’s included

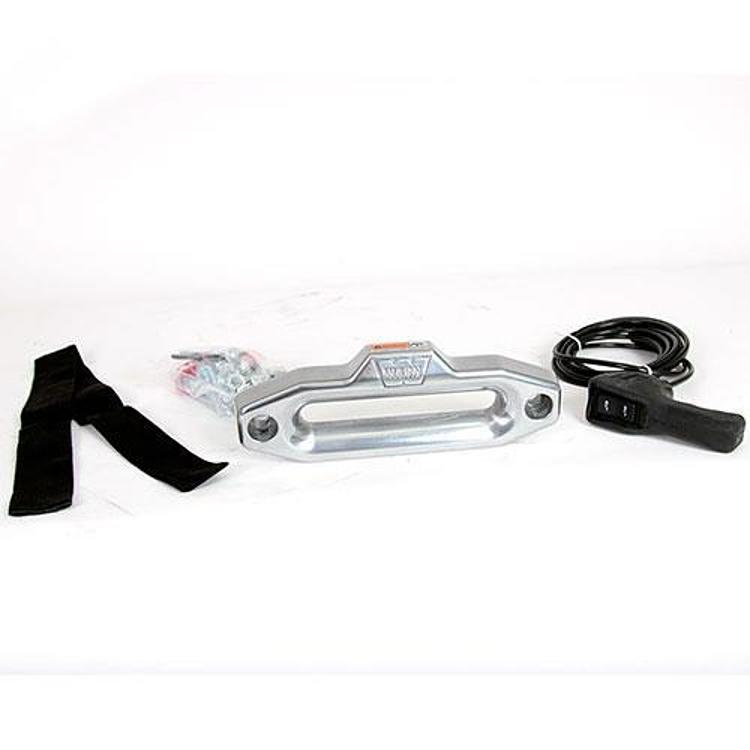

Included: the ZEON 10-S winch, 100 ft of 3/8 Spydura synthetic rope, a hawse fairlead and a remote switch with a 12 ft lead.
Not included: the relocation kit needed for remote mounting of the control pack, which is sold separately.
