Overview

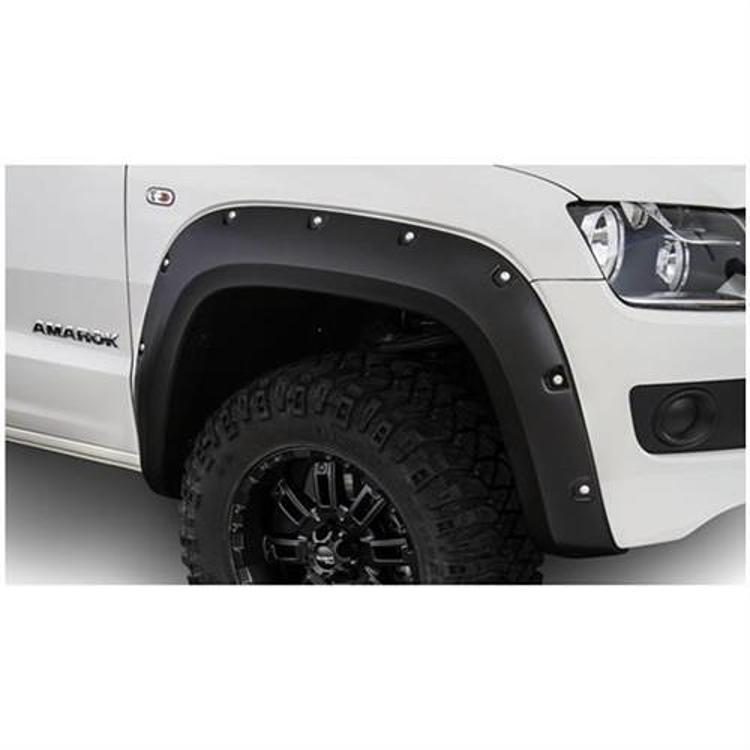

The Bushwacker Cut-Out Style fender flare set, part 171905-02, is a front and rear set of four flares for the Volkswagen Amarok. Each Cut-Out set is individually designed for the vehicle to maximize off-road wheel travel and maintain adequate tire coverage. Cut-Out flares need body sheet metal cut away for maximum articulation and coverage on oversized tires.
The Cut-Out design is meant to give a smoother appearance and greater strength than a bolt-on flare, and it is installed with rivets. The flares are made from thick, warp-proof Dura-Flex 2000, and the UV protection guards against chalking. The OEM matte black finish can be left as is or custom painted for a personal look.
Key features
- Cut-Out design for maximum wheel articulation
- Sheet metal removal maximizes wheel articulation and tire coverage
- Tough rivet installation
- 100% UV protected Dura-Flex 2000 that guards against chalking
- Warp-proof material engineered for severe conditions
- OEM matte black finish that is easy to paint
Cutting and clearance checks
Cut-out flares change the body, so the decision should come before any metal is removed. Mark the planned cut line with tape, test the tire at full steering and full suspension travel, and make sure the wheel does not hit anything hidden behind the panel. Once sheet metal is removed the change is permanent, so measure from fixed reference points such as the door jamb and wheel center.
Rivets make this installation different from bolt-on flares. Rivet holes must be placed accurately for the flare to sit flush, and a poorly aligned flare can rub or pull on the panel. A drill, a rivet tool and a way to deburr cut edges are the usual needs. Sealing bare metal after cutting helps slow rust at the cut.
- Mark the cut line and check it against the tire
- Deburr and seal bare metal edges
- Test clearance before final riveting
Specifications
| Brand | Bushwacker |
|---|---|
| Part number | 171905-02 |
| UPC | 90689120861 |
| Position | Front and rear |
| Quantity | Set of 4 |
| Material | Dura-Flex 2000 |
| Finish | OEM matte black, paintable |
| Installation | Riveted, with sheet metal removal |
| Origin | Made in the USA |
| Warranty | Limited lifetime |
Vehicle fitment
The set is designed for the Volkswagen Amarok. Confirm fit for your vehicle’s year, model and body style before cutting any sheet metal or installing.
Because the set has no listed years, the Cut-Out pieces should be checked against your specific truck before any sheet metal is cut. Confirm your vehicle’s year, model and trim before ordering.
Installation notes
Cut-Out flares require cutting body sheet metal, and the set is installed with rivets rather than bolts. Follow the installation guide for your model, and confirm the clearance at full suspension travel after mounting.
What’s included
A set of four Cut-Out flares, front and rear, in the OEM matte black finish.
