Overview

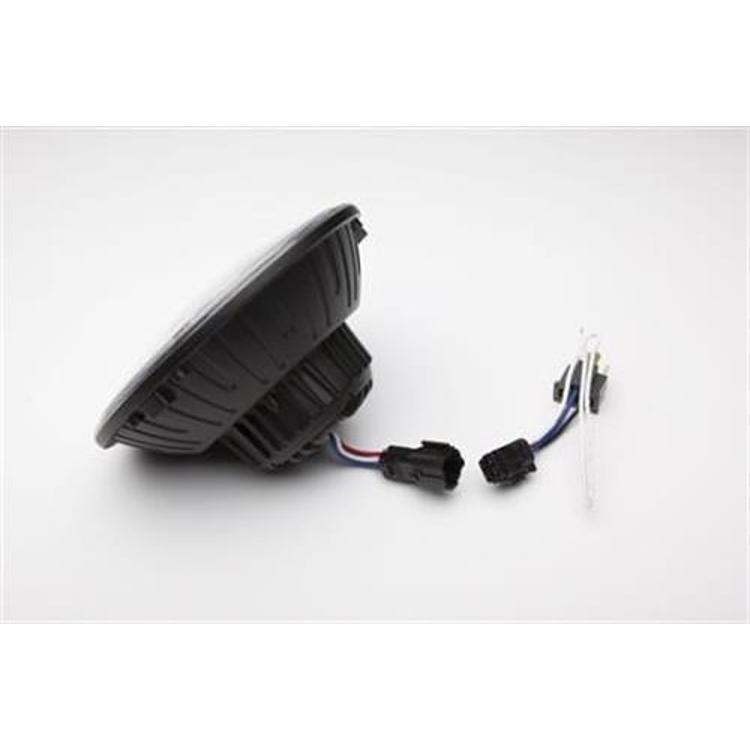

The Vision X Lighting 9891224 is a chrome 7-inch round LED headlamp with a halo kit, made to replace the factory headlight on the 2007–2014 Jeep Wrangler JK. It includes built-in JK Wrangler headlight adapters for a plug and play swap.
Each lamp uses super bright LEDs and carries a DOT approval statement. The halo ring is an accent ring that can serve as auxiliary lighting or be wired in as a daytime running light. The polycarbonate lens has an ice-phobic coating that Vision X says keeps ice and snow from building up on the LEDs at colder temperatures. The design also fills the dark zone about 5 feet in front of the Jeep, which Vision X describes as a gap in some other LED headlights.
Key features
- Built-in JK Wrangler headlight adapters
- Halo LED ring usable as a DRL or auxiliary light
- Polycarbonate lens with ice-phobic coating
- 1720 lumens from each light
- DOT approved, per the brand
- Fills the area directly in front of the Jeep
- Sold as a pair
Wiring a halo ring safely
Halo rings draw current continuously when they run as daytime lights, so the circuit needs a suitable fuse and relay rather than a tap into a low-current factory wire. Route the power lead away from moving suspension parts and heat sources, and secure it with clips so it cannot chafe through on rough trails. Label each circuit at the fuse box to make later service simpler.
Auxiliary lights used off-road face more dust and water than street-driven lamps. Water can reach the connectors on a Wrangler that sees trail use, so apply dielectric grease to the plugs and check them after deep water crossings. When a halo ring stops lighting, check the fuse and relay before suspecting the lamp, because a loose ground often causes the same symptom.
Specifications
| Brand | Vision X Lighting |
|---|---|
| Part number | 9891224 |
| UPC | 887009891224 |
| Color | Chrome |
| Diameter | 7 inch, round |
| Lighting | LED with halo ring |
| Output | 1720 lumens from each light |
| Lens | Polycarbonate with ice-phobic coating |
| Quantity | Pair |
| Adapters | Built-in JK Wrangler headlight adapters |
| Anti-flicker adapter | P-HLCBA, sold separately (most 2009 and newer models with Canbus systems) |
Vehicle fitment
It fits the 2007–2014 Jeep Wrangler (JK) in 70th Anniversary, Rubicon, Sahara, Sport, Unlimited 70th Anniversary, Unlimited Rubicon, Unlimited Sahara, Unlimited Sport, Unlimited X and X trims.
JK model years from 2015 onward, and TJ, LJ and JL Wranglers, fall outside this fitment. Match your Wrangler’s year and trim to the trims above before choosing these lamps.
Installation notes
The built-in JK adapters let the lamp take the place of the factory headlight with plug and play wiring. Most 2009 and newer models with Canbus electrical systems need anti-flicker adapters for LED lights, part P-HLCBA, which are sold separately. The halo ring can be wired as a daytime running light, but local road-use rules for daytime running lights and auxiliary lighting apply, so check them before wiring. Use a fused relay for any added halo or auxiliary circuit.
What’s included
The pair includes the 7-inch round LED headlamps with halo rings and the built-in JK Wrangler headlight adapters. Not included: the anti-flicker adapters, part P-HLCBA, which are sold separately for most 2009 and newer Canbus models.
