Overview
The Tuff Country 14990KN is a lift kit with SX8000 shocks for the 2001–2006 Chevrolet Silverado 3500 and GMC Sierra 3500 trucks, along with the 2007 Silverado 3500 Classic and Sierra 3500 Classic. The kit lifts the front 4 inches and the rear 2 inches, so the truck sits with a different front and rear height.
The kit uses differential relocation brackets, a lower subframe, torsion bar crossmember brackets and knuckles, with rear lift blocks and CV axle spacers. The shocks are included with the kit.
The lift height range is 3 to 4.99 inches, which is broader than the 4 inch front and 2 inch rear lift figures. Confirm the exact lift figures before ordering.
Key features
- SX8000 shocks included
- 4 inch front lift
- 2 inch rear lift
- Differential relocation brackets
- Lower subframe and torsion bar crossmember brackets
- Rear lift blocks
- CV axle spacers and knuckles
Front geometry and driveline
Knuckles, a lower subframe and torsion bar crossmember brackets change the front geometry, so caster, camber and toe are all affected by the new height. A differential relocation bracket shifts the rear axle position, which can change pinion angles and the driveline’s operating angles. Front alignment and driveline angles are commonly checked on the first day back on the road, and the work is simple with the right equipment.
CV axle spacers change the axle length, so the CV joint angles should be inspected for binding and for clicking on turns. Inspect the front tires for uneven wear, since a changed camber can show up quickly. Ball joints, tie rod ends and steering components should also be checked at the same time, and replacing worn parts during the lift keeps the new geometry predictable.
Specifications
| Brand | Tuff Country |
|---|---|
| Part number | 14990KN |
| UPC | 698815015403 |
| Front lift | 4 inch |
| Rear lift | 2 inch |
| Lift height range | 3 to 4.99 inches |
| Suspension type | Knuckle |
| Rear lift method | Lift blocks and U-bolts |
| Shocks | SX8000, included |
Vehicle fitment
It fits the 2001–2006 Chevrolet Silverado 3500 (Base, LS, LT and WT), the 2007 Chevrolet Silverado 3500 Classic, the 2001–2006 GMC Sierra 3500 and the 2007 GMC Sierra 3500 Classic.
Silverado and Sierra 3500 model years outside 2001–2007, and 1500 and 2500 trucks, fall outside this fit. Confirm your vehicle’s year, model and trim before ordering.
Installation notes
The knuckles and subframe parts change the front geometry, so the front alignment and the driveline angles need checking after installation. The CV axle spacers also change the axle length, so check the CV joint angles.

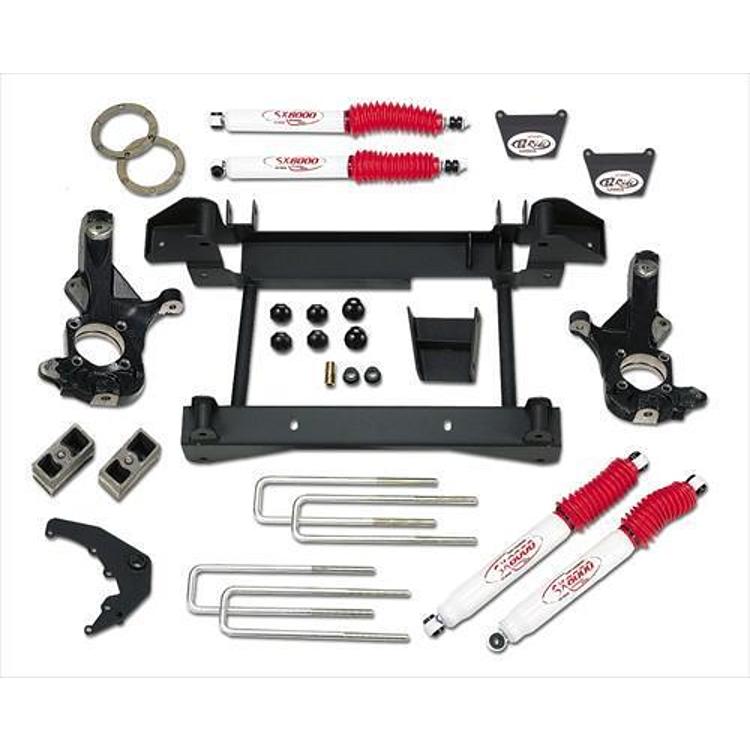

What’s included
The kit includes the SX8000 shocks, differential relocation brackets, a lower subframe, torsion bar crossmember brackets, rear lift blocks, CV axle spacers and knuckles.
