Overview
The Trail Gear 140250-1-KIT is a rear disc brake kit that adds GM-style loaded calipers and vented rotors and connects to OEM Toyota brake lines.
The kit uses a 3/8in. thick laser cut caliper bracket with grade 10.9 mounting bolts for a secure mounting system. The larger GM-style calipers ship fully loaded, and the vented rotors are made for this application. Full color install instructions are included.
About this part
The kit is built for rear conversions where the owner wants GM-style calipers.
Key features
- Two GM-style loaded calipers and two vented rotors
- 3/8in. thick laser cut caliper brackets
- Grade 10.9 mounting bolts
- DOT approved stainless steel braided brake lines
- Brake lines fit the GM calipers on one end and OEM Toyota brake lines on the other, so no new fittings are required
- Full color install instructions included
Choosing a rear brake upgrade
Upgrading the rear brakes changes the balance between front and rear braking, so review the front setup before installing a larger rear system. Heavier calipers and vented rotors can improve heat handling on long descents, but the master cylinder and proportioning must match the new load. Check pedal feel after the first bed-in and make slow test stops before heading onto the trail.
Braided lines hold their shape better than rubber under pressure, but they still need inspection for chafing, kinks and leaks at each fitting. Brake fluid should be fresh, and the bleeding order should follow the procedure for your vehicle. Pads should be bedded in before hard use, and rotor surfaces checked for scoring or heat cracks during routine service.
Specifications
| Brand | Trail Gear |
|---|---|
| Part number | 140250-1-KIT |
| UPC | 70000625358 |
| Product type | Rear disc brake kit |
| Caliper type | OEM-style (GM-style loaded calipers) |
| Rotor type | Standard, GM-style vented |
| Brake position | Rear |
| Caliper bracket | 3/8in. thick, laser cut |
| Mounting bolts | Grade 10.9 |
| Brake lines | DOT approved, stainless steel braided |
| Color | Natural |
| Fitment type | Direct fit |
| Master cylinder requirement | 2 lb. residual valve, or a 1in. bore master cylinder |
Vehicle fitment
No vehicle is confirmed for this kit. The kit connects to OEM Toyota brake lines, so the Toyota model and year should be checked before ordering.
Confirm your vehicle’s year, model and trim before ordering, and check the supported Toyota models and years against your truck.
Installation notes
The kit needs either a 2 lb. residual valve or a 1in. bore master cylinder, which many pickups and 4Runners already have after an upgrade. The brake lines attach to OEM Toyota brake lines without new fittings.
What’s included

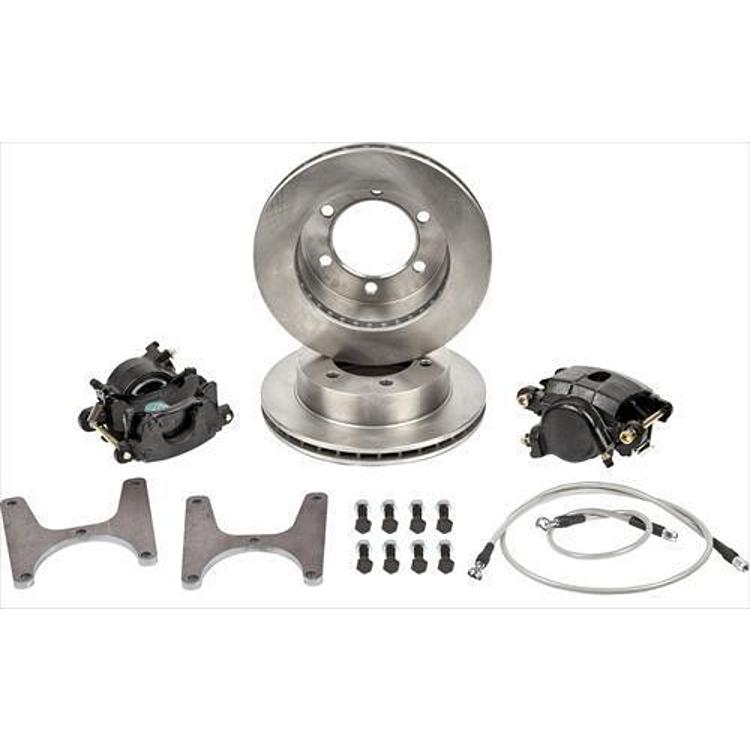

Two brake rotors, two loaded brake calipers, two stainless steel braided brake lines, two brake caliper brackets, installation hardware and installation instructions.
Not included: The 2 lb. residual valve or 1in. bore master cylinder that the kit requires is not part of the kit.
