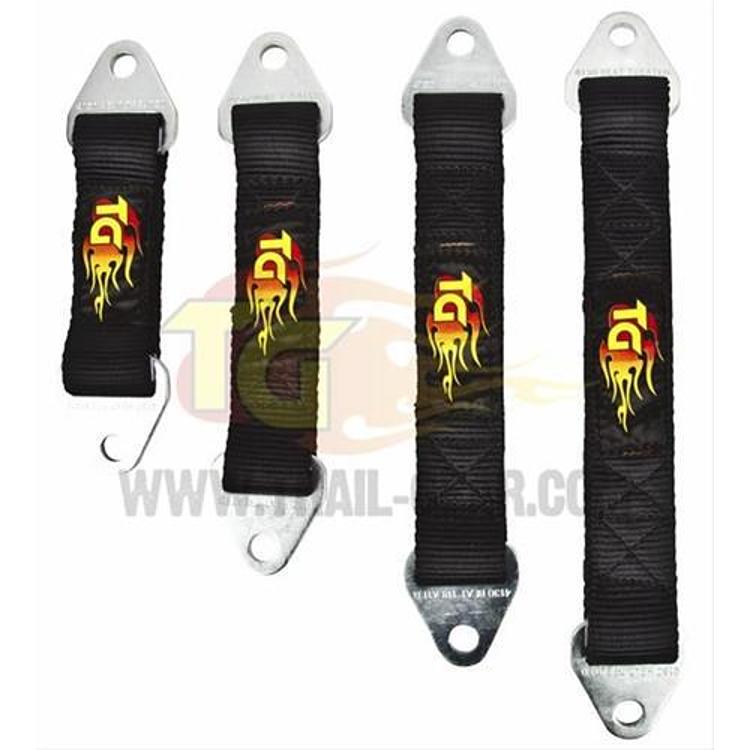

Trail Gear 14 Inch Rock Assault Axle Limit Strap – 111277-KIT

Trail Gear

Shop Trail Gear Limiting Straps on Amazon

Compare current versions and compatible options on Amazon, then check out with your Amazon account.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • Trail Gear 14 in Rock Assault axle limit strap with 6-ply nylon webbing
  • Part number 111277-KIT; 4130 Chromoly Steel buckles, zinc-plated
  • Rated 9,000 lb test; minimal stretch to limit shock extension
  • Universal fit, sold individually

Description

Overview

The Trail Gear 111277-KIT is a 14 in Rock Assault axle limit strap built from six layers of nylon webbing. Its job is to keep a shock from reaching full extension, which can break the shock on rough, uneven terrain. It suits builders who want a strap that resists stretching under load.

The strap is universal fit, so it is not tied to one vehicle, and it is sold individually. Its six-layer nylon webbing is designed to resist stretching under load.

The buckles are heat-treated 4130 Chromoly Steel, and the anti-abrasion clips inside each buckle are designed to slow wear. The specification table gives the rating, buckle finish and length.

Key features

  • Six layers of nylon webbing with minimal stretch to limit shock extension.
  • 4130 heat-treated Chromoly Steel buckles, zinc-plated against corrosion.
  • Anti-abrasion clips inside each buckle to slow wear.
  • Nylon strap material with a 9,000 lb test rating.
  • 14 in length, measured from the center of the mounting holes.

Why limit extension matters

An axle limit strap stops a shock from reaching the end of its travel. When an axle drops hard into a hole, a fully extended shock can hit its end stop with force, which can crack the body or tear the mounts. A limit strap takes that load through its webbing so the shock does not carry it alone.

Setup choices work together. A strap that is too long does little, while one that is too short can pull on the shock and mounts when the suspension is at rest. Check the strap length with the axle at both ends of its travel, and look at how the strap sits against brake lines and driveline parts.

  • Inspect webbing for fraying and cuts
  • Check buckles for corrosion after trail use
  • Confirm the shock still moves freely at ride height
  • Replace a strap with damaged webbing

Specifications

Brand Trail Gear
Part number 111277-KIT
UPC 70000640908
Length 14 in
Webbing Six-layer nylon
Test rating 9,000 lb test
Buckle material 4130 heat-treated Chromoly Steel
Buckle finish Zinc-plated
Fit type Universal fit
Sold Individually

Vehicle fitment

Trail Gear marks this strap as universal fit, so it is not assigned to a specific year, make or model. Choose the length by the shock it protects, not by a vehicle name.

Installation notes

Trail Gear suggests a strap somewhat shorter than the shock, so the shock cannot reach full extension and break. Set the length with the shock in mind before you mount it.

What’s included

The 14 in limit strap is sold individually.

Not included: Mounting hardware and a shock are not part of this kit.

SKU: TGI111277-KIT Category:

Specification

Shipping weight 0.90 lbs
Package dimensions 7.50 × 7.50 × 3.50 in
brands

Questions & Answers

Does the Trail Gear 111277-KIT fit my Jeep or truck?

It is universal fit, so it is not tied to a specific year, make or model. Pick the strap length based on the shock it will limit, keeping it somewhat shorter than the shock.

How long is this 14 in Rock Assault limit strap?

The strap is 14 in long, measured from the center of the mounting holes. Keep that measurement in mind when choosing a strap length for the shock it limits.

What are the webbing and buckles made of?

The webbing is six-layer nylon with a 9,000 lb test rating and minimal stretch. The buckles are 4130 heat-treated Chromoly Steel with zinc plating for corrosion resistance.

Is mounting hardware included with this strap?

No. Mounting hardware is not part of this kit, so have suitable hardware ready. The strap is sold individually under UPC 70000640908.

How should a limit strap be inspected?

Look along the webbing for fraying, cuts, heat damage and stiff spots, and check each buckle for corrosion or cracking. Replace a strap that shows any damage, since the webbing carries the load that keeps the shock from fully extending.

Can a limit strap replace a worn shock?

No. A limit strap restricts how far a shock extends, but it does not control damping or ride quality. A worn shock still needs replacing, and the strap should be kept as a protective part alongside it.
