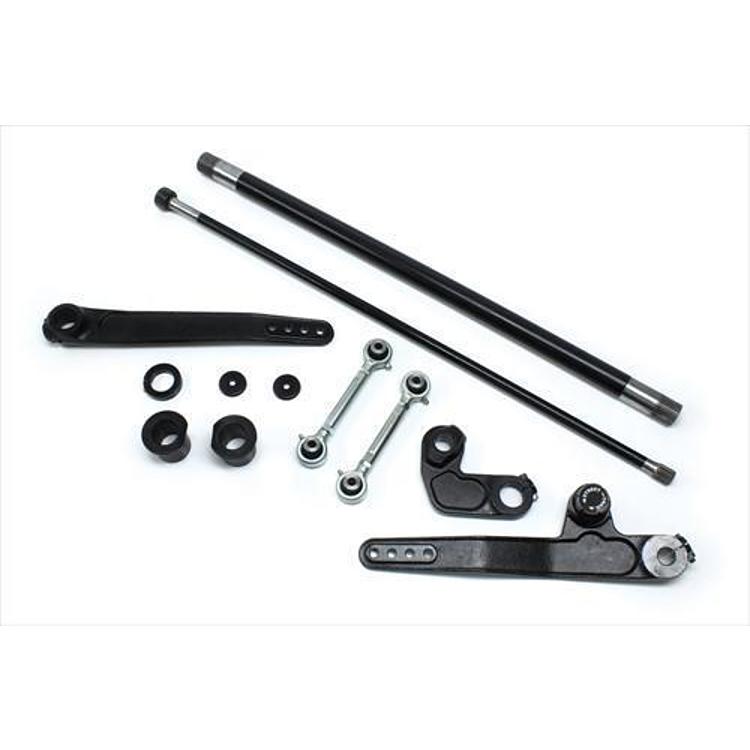

TeraFlex Dual Rate S/T Swaybar Kit – 1743625

TeraFlex

Shop on Amazon

Compare current versions and compatible options on Amazon, then check out with your Amazon account.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • Fits 1997–2006 Wrangler (TJ) and 2004–2006 Wrangler (LJ)
  • Front dual rate swaybar with knob-operated disconnect
  • For 4–6 inch lift
  • Includes sway bar links and hardware

Description

Overview

The TeraFlex 1743625 is a front Dual Rate S/T Swaybar kit for the 1997–2006 Jeep Wrangler (TJ) and 2004–2006 Jeep Wrangler (LJ) with 4–6 inches of lift.

A swaybar, also called a stabilizer bar, limits body roll on the road. The S/T Swaybar System uses an easy engagement knob that lets the driver switch from street to trail.

Engaged, the system provides stable highway driving. Disconnected, it allows the vehicle to articulate so the tires keep contact over terrain. Unlike conventional disconnects, the S/T bar does not require pulling, prying or tugging on removable links.

Check the kit’s weight and swaybar diameter against your lift setup before ordering.

Key features

  • Front dual rate swaybar with disconnect
  • Easy engagement knob for switching from street to trail
  • Stable highway handling when engaged
  • Allows more articulation when disconnected
  • No removable links to pull, pry or tug
  • Includes swaybar links and hardware
  • For vehicles with 4–6 inches of lift

Choosing the right setup

A swaybar controls how much the body leans in corners, and it also shapes how the axle moves over uneven ground. A dual rate bar has a softer and firmer setting, so its feel changes with the disconnect. Lift height changes the angle of the links, so link length and clearance should be checked after any lift.

Swaybar links and bushings take most of the load and often wear first. When the bar is disconnected, the links move freely and can rattle if they are worn. Check the knob and disconnect mechanism for smooth engagement, and inspect the frame mounts after a few trail trips.

  • Inspect sway bar bushings and end links every service
  • Check the disconnect knob moves freely
  • Confirm the bar clears brake lines and driveshaft at full droop
  • Tighten link and bracket bolts after the first drives

Specifications

Brand TeraFlex
Part number 1743625
UPC 843885023159
Product type Swaybar disconnect kit
Mounting location Front
Spring rate Dual rate
Type Automatic
Lift range 4-6 inch lift
Includes Sway bar links and hardware
Fitment type Direct fit

Vehicle fitment

The manufacturer fitment list for the TeraFlex 1743625 swaybar kit covers these Jeep vehicles:

  • 2004–2006 Jeep Wrangler (LJ) (Unlimited, Unlimited Rubicon)
  • 1997–2006 Jeep Wrangler (TJ) (65th Anniversary Edition, Rubicon, SE, Sahara, Sport, X)

The list does not include the Wrangler YJ, JK or JL. Confirm your vehicle’s year, model and trim before ordering.

Installation notes

  • Swaybar work is easier with the vehicle level and supported on jack stands, with the axle at normal ride height.
  • Re-check the link and bracket bolts after the first few drives.
  • Confirm the sway bar and links clear the brake lines, exhaust and driveshaft through full axle travel.
  • Check swaybar link length and clearance against your lift height, which should fall in the 4–6 inch range.

What’s included

  • Front dual rate S/T swaybar
  • Sway bar links
  • Hardware
SKU: TER1743625 Category:

Specification

Shipping weight 30.00 lbs
Package dimensions 40.00 × 8.00 × 8.00 in
brands

Fitment

VehicleYearsTrims
Jeep Wrangler (LJ)2004–2006Unlimited, Unlimited Rubicon
Jeep Wrangler (TJ)1997–200665th Anniversary Edition, Rubicon, SE, Sahara, Sport, X

Use “Select your vehicle” at the top of the page to check this part against your vehicle.

Questions & Answers

Will the TeraFlex 1743625 fit a Jeep Wrangler TJ?

Yes. The manufacturer fitment list for the 1743625 includes the 1997–2006 Jeep Wrangler (TJ) and the 2004–2006 Wrangler (LJ), with a lift of 4–6 inches.

Is the TeraFlex 1743625 front or rear?

It is a front swaybar kit. It has a dual rate spring, a mounting location at the front, and a lift range of 4–6 inches.

Does the TeraFlex 1743625 include swaybar links?

Yes. The kit includes the front dual rate S/T swaybar, sway bar links and the hardware needed to mount them. Check the parts against your installation before starting.

How does the TeraFlex S/T swaybar disconnect?

An easy engagement knob switches the bar between street and trail modes. The disconnect does not need removable links pulled, pried or tugged, so the switch is quick to make.

How do I know swaybar links need replacing?

Look for torn boots, bent links, cracked bushings, loose nuts and a knocking noise over bumps. Worn links change how the bar loads the suspension and can make the disconnect harder to operate. Inspect them whenever the suspension is serviced.
