Overview

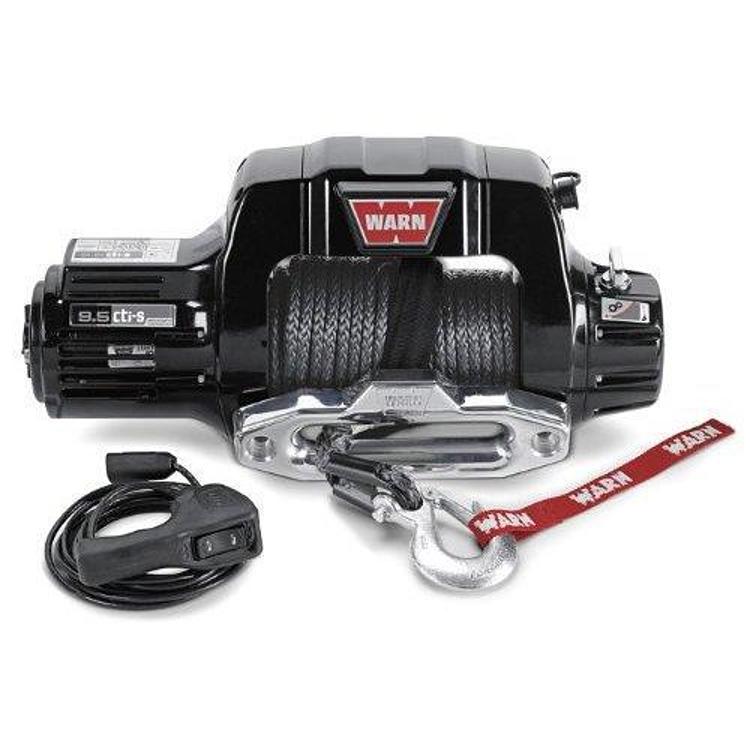

The Warn 9.5cti-s 97600 is a self-recovery electric winch with a single-line rated pull of 9,500 lb (4310 kg). It runs on a 12V DC series wound motor with a 156:1 gear ratio and is aimed at owners of trucks and SUVs who need reliable off-road recovery support.
The mounting bolt pattern is 10.0 in x 4.5 in, and the winch measures 23.1 in long, 6.3 in deep and 10.4 in high. Compare those figures with your mount before choosing a location, and check fit against your vehicle’s year, model and trim before ordering.
Key features
- All-new contactor with cadmium-plated copper contacts for heat resistance and duty cycle
- Motor-mounted thermometric sensor with an indicator lamp on the remote
- Redesigned pistol-grip remote with a 12 ft lead and LED indicator
- Cast aluminum-alloy housing and a massive integrated control box
- Extreme-duty sealing and new levels of weather sealing
- Automatic direct drive cone brake and sliding ring gear freespool clutch
Battery and wiring basics
A winch this size draws heavy current, so the battery, cable and fuse all work together. A weak or undersized battery makes the motor slow and can cause the contactor to chatter. Keep the battery terminals clean and tight, and check the state of charge before a trip where a recovery is likely.
Route the power cable with a fuse close to the battery and keep it away from sharp edges and heat sources. Use the remote only with the motor cable connected as intended, and let the winch rest between long pulls so the motor and contactor can cool.
- Check battery condition before every trip
- Keep fuses within easy reach of the battery
- Inspect cable insulation at the bumper pass-through
Specifications
| Brand | Warn |
|---|---|
| Part number | 97600 |
| UPC | 12748976004 |
| Rated line pull | 9,500 lbs (4310 kg) single-line |
| Motor | 12V DC, series wound |
| Electrical controls | Contactor |
| Remote control | Remote switch, LED indicator, 12 ft lead |
| Geartrain | 3-stage planetary |
| Gear ratio | 156:1 |
| Clutch (freespooling) | Sliding ring gear |
| Brake | Automatic direct drive cone |
| Drum diameter and length | 2.5 in / 9.0 in |
| Mounting bolt pattern | 10.0 in x 4.5 in |
| Dimensions | 23.1 in L x 6.3 in D x 10.4 in H |
| Weight | 89 lbs |
| Synthetic rope | 100 of 3/8 in diameter |
| Fairlead | Hawse |
| Finish | High-gloss black powder coat |
| Housing | Cast aluminum-alloy |
Vehicle fitment
No make, model or year is named for the 9.5cti-s 97600. It is aimed at trucks and SUVs in general, so compare the 10.0 in x 4.5 in bolt pattern and dimensions with your vehicle’s mount before ordering.
Confirm your vehicle’s year, model and trim before ordering.
Installation notes
Match the 10.0 in x 4.5 in mounting bolt pattern and the 23.1 in length to your bumper or mount before you settle on a location. Route the power cable through fuses, since the winch draws heavy current.

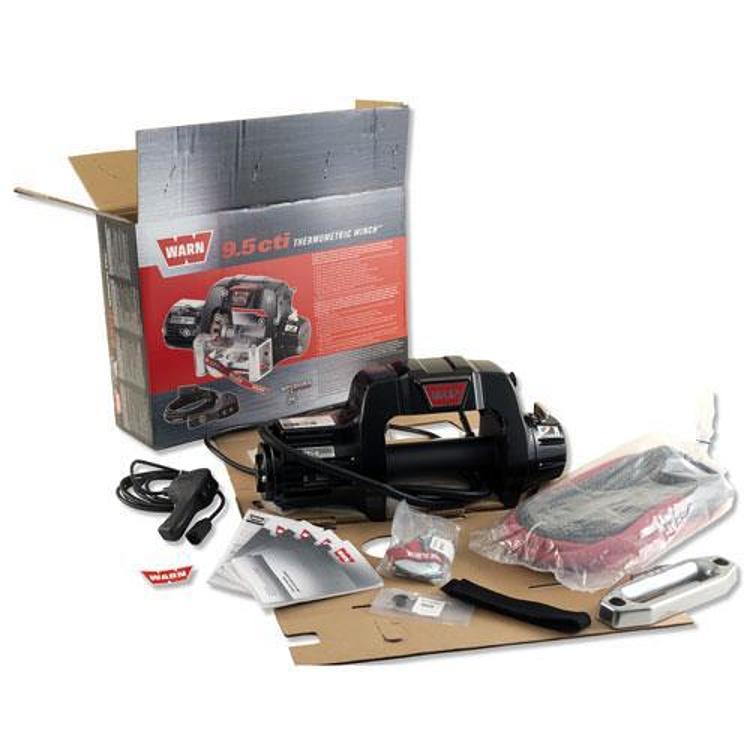

What’s included
The winch with 100 of 3/8 in diameter synthetic rope, a hook and a hawse fairlead.
