Overview

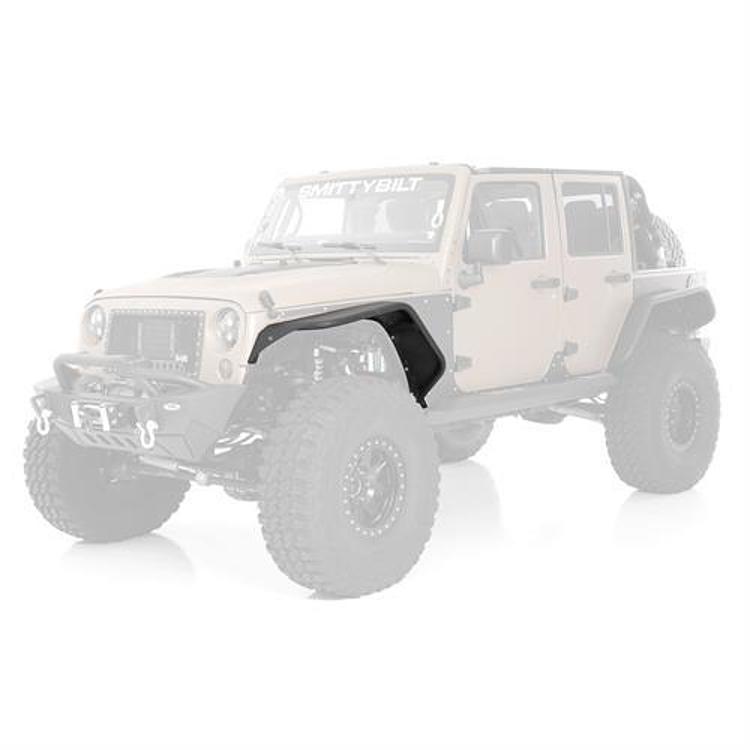

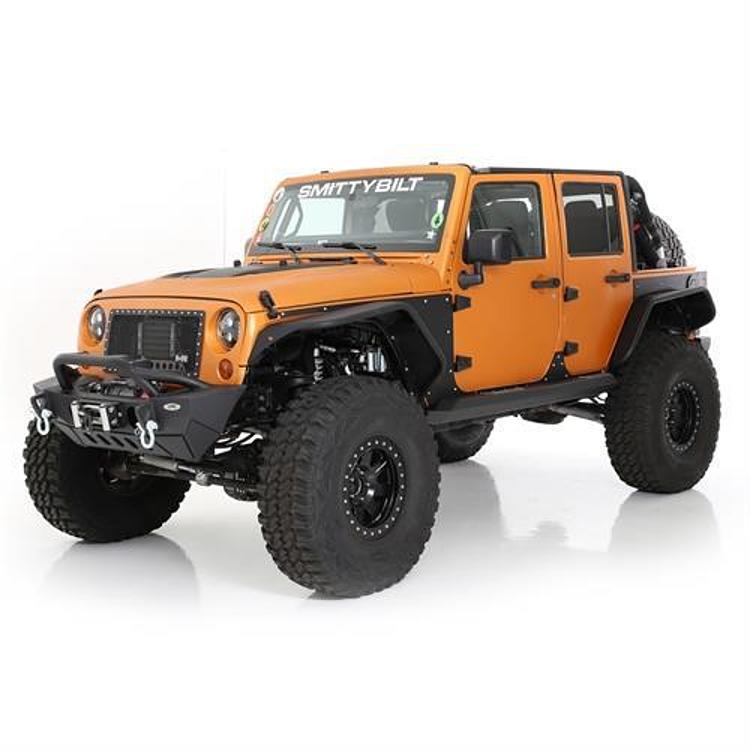

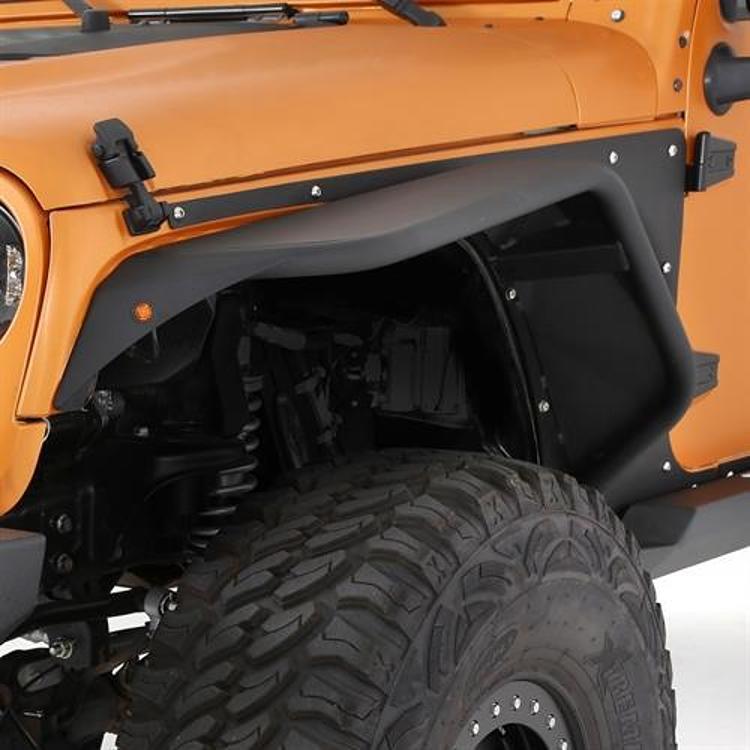

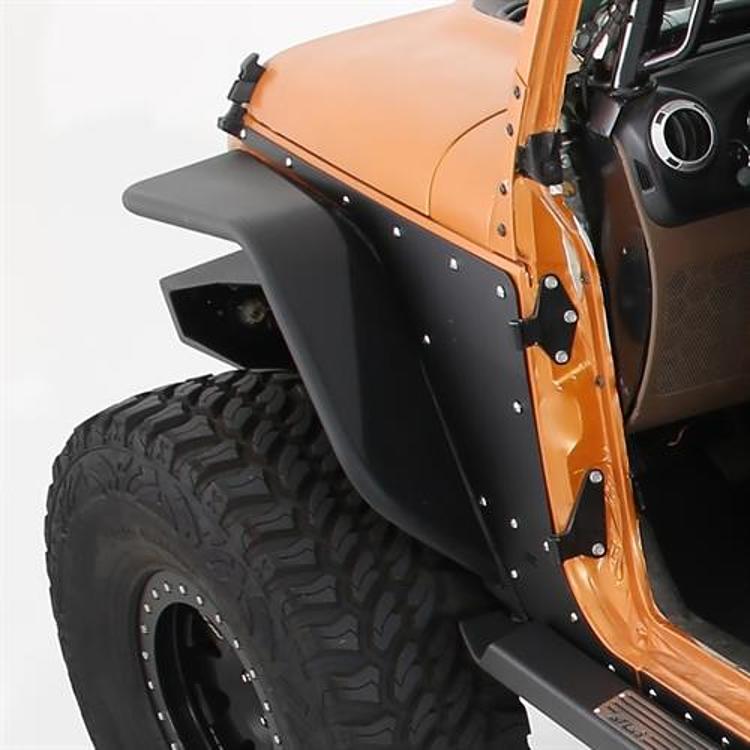

The Smittybilt 76838 is a pair of XRC Flux front fender flares built as double-articulated tube fenders. Smittybilt says they provide extra outer tire clearance for larger tires under full suspension articulation.

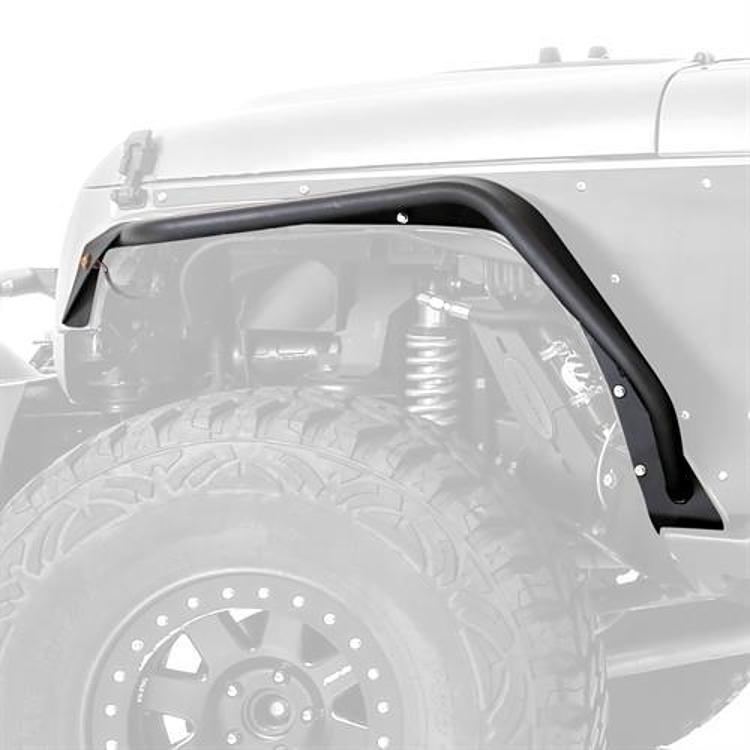

The tubes are CNC bent 1.5-inch diameter steel, covered with 1/8-inch laser cut cold rolled sheet metal. The 6-inch wide fenders add 3 inches of suspension travel and preserve the factory inner liner.
Key features
- Double-articulated 6-inch wide tube fenders
- Extra 3 inches of suspension travel
- Extra outer tire clearance under full articulation

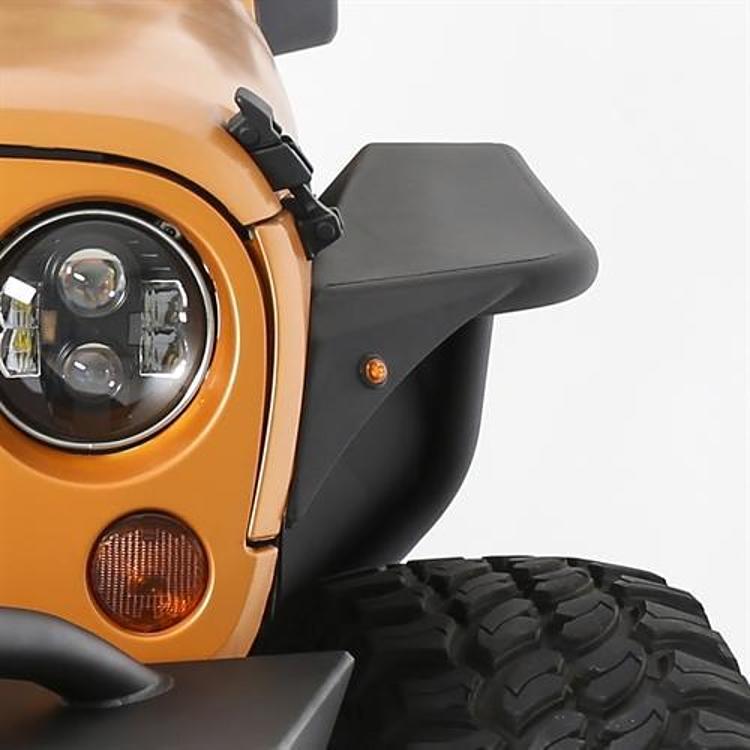

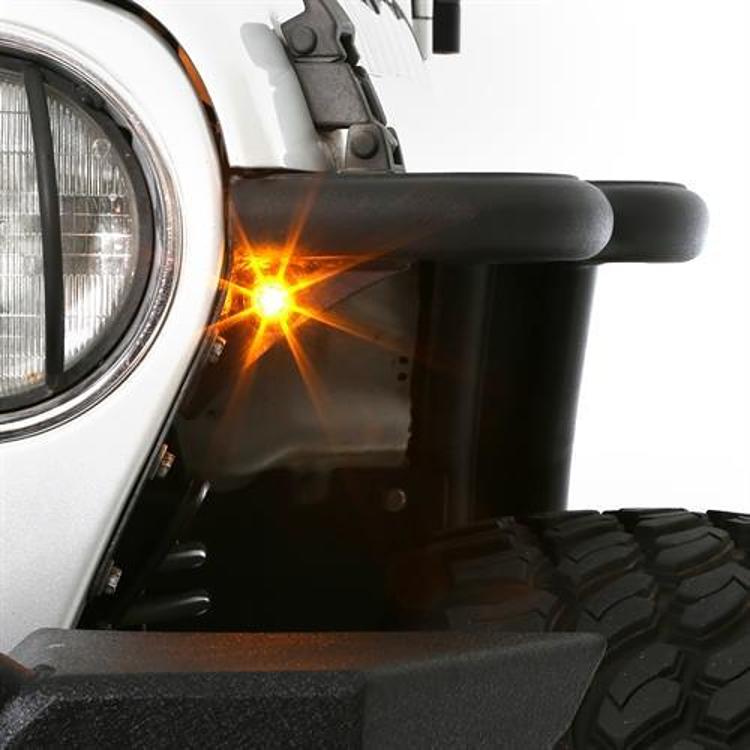

- 3/4-inch LED turn signal lights included
- Bolts to the factory mounting points
- Spacers and brackets included for added strength
- Preserves the factory inner liner
Tire clearance and articulation

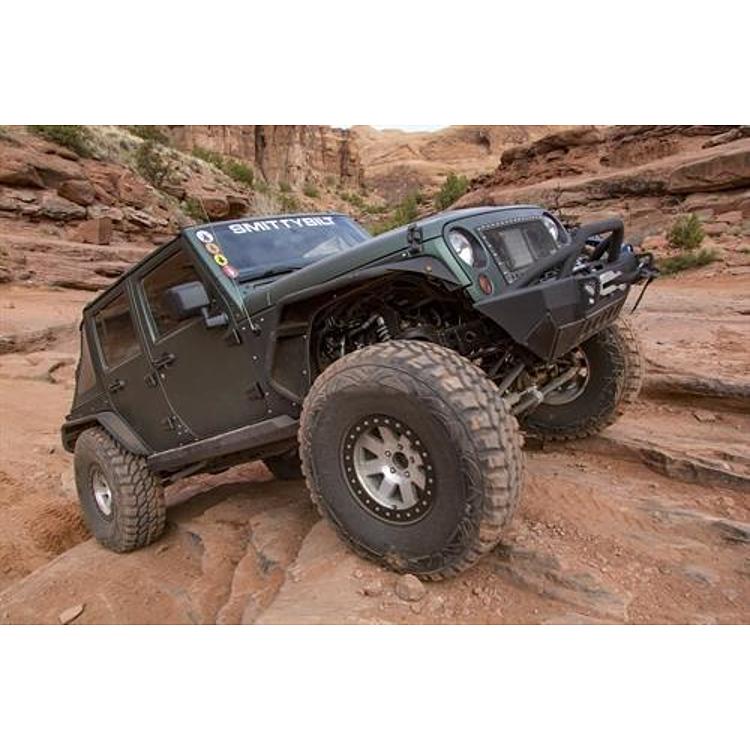

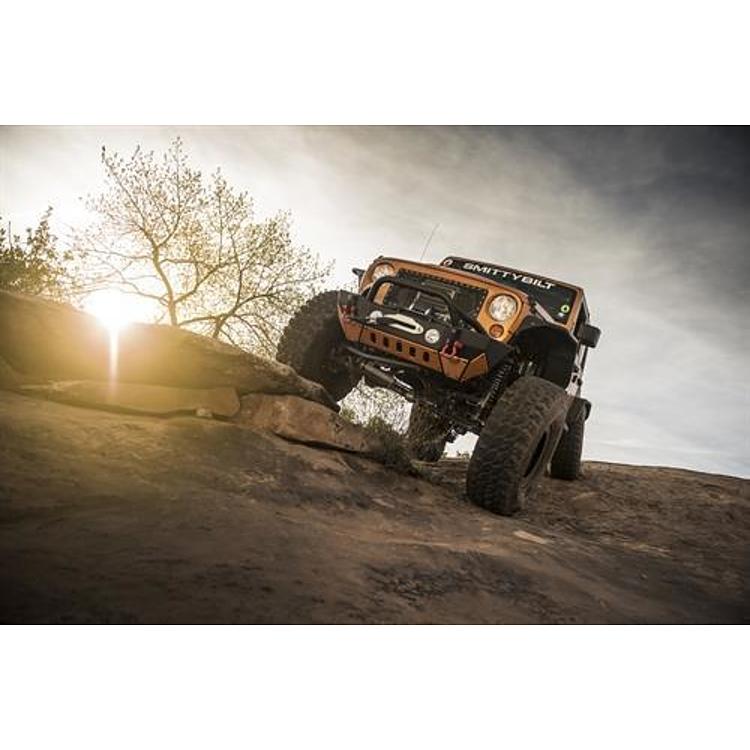

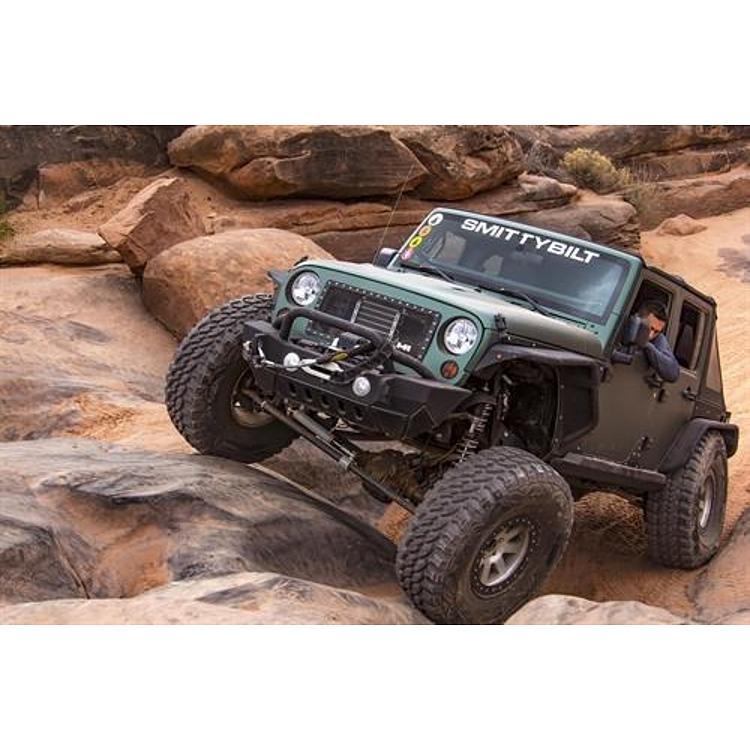

Front flares matter most when a truck flexes on uneven ground, because the tire moves up and out at the front corner and the body edge can catch. Double-articulated tube fenders are built to give extra outer tire clearance, which helps when you run larger tires or a lift. Plan the tire size first, then check how much room the flare leaves at full lock and at full compression.
Once the flares are on, look for rub marks on the inner liner, the flare edge and the tire sidewall after a steep or rough outing. Check the spacers and brackets for wear and re-tighten the bolts after the first few drives. Keep the turn signal wiring away from moving parts and secure it with clips so it stays clear of the tire.
Specifications
| Brand | Smittybilt |
|---|---|
| Part number | 76838 |
| UPC | 631410125979 |
| Position | Front |
| Tube diameter | 1.5 inches, CNC bent |
| Sheet metal | 1/8-inch laser cut cold rolled |
| Flare width | 6 inches |
| Added suspension travel | 3 inches |
| Turn signals | 3/4-inch LED, included |
| Quantity | Pair |
| Finish | Paintable |
| Fitment | Direct fit |
Vehicle fitment
The flares are sold as a front pair for 2-door and 4-door vehicles. Confirm fit for your vehicle’s year, model and trim before ordering.
Confirm your vehicle’s year, model and trim before ordering.
Installation notes
The flares bolt to the factory mounting points, and spacers and brackets are included for extra strength. The installation involves minimal modification.
What’s included
A pair of front flares with 3/4-inch LED turn signal lights, spacers and brackets.
