Overview

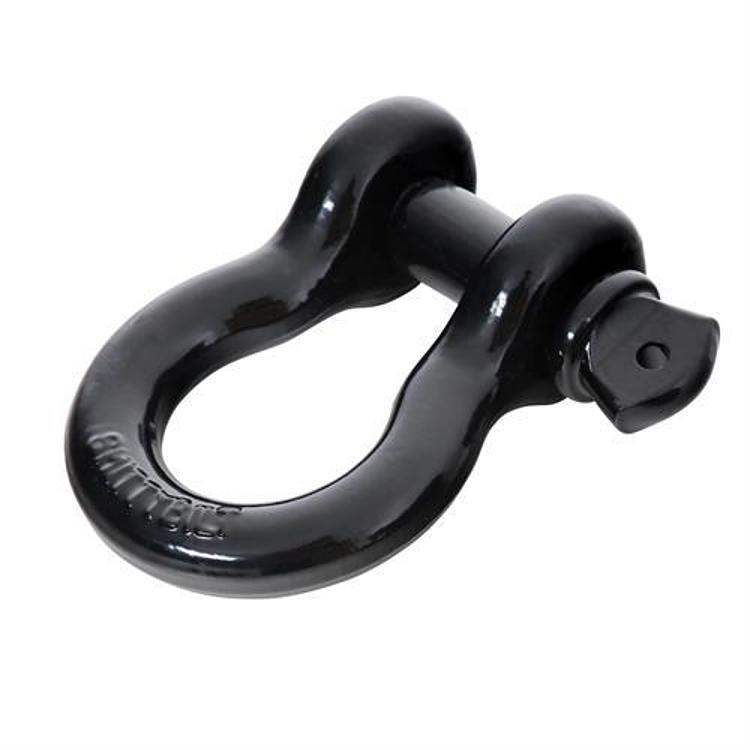

The Smittybilt 7/8 inch D-ring shackle in gloss black is a forged steel recovery shackle rated at 6.5 tons. It is a rigging point for attaching recovery straps and lines, and it is finished in gloss black.
It is designed to work with the XRC and SRC Series bumpers as well as other off-road bumpers. It is also offered in a zinc finish, so gloss black is one finish option in this size.
Key features
- 7/8 inch shackle
- 6.5 ton weight rating
- Gloss black finish
- Heavy duty forged steel construction
- Corrosion resistant
- Easy, no-drill installation
Using a shackle on a pull
A shackle is the connection point that takes the pull from the strap, so it should be the same rating or higher than the rest of the rigging. Attach the shackle through the recovery point on the vehicle, then run the strap through the bow without twisting it. Keep the pin fully seated and, where possible, point the bow in the direction of the pull so the load sits along its strongest axis. A loose or half-seated pin can slip under tension, so check it before every pull.
Heavy forged steel handles repeated loads well, but it still wears. Check the bow for flat spots or bending, look at the eye for cracks, and run a finger over the pin threads to feel for burrs. Clean grit from the threads and apply a light lubricant so the pin turns smoothly. Replace the shackle if it has been overloaded, bent, or shows cracks, rather than trying to straighten it.
Specifications
| Brand | Smittybilt |
|---|---|
| UPC | 631410092295 |
| Product type | D-ring shackle |
| Size | 7/8 inch |
| Weight rating | 6.5 ton |
| Finish | Gloss black |
| Construction | Heavy duty forged steel |
| Installation | No drill |
Vehicle fitment
This shackle is not tied to a specific vehicle. Match its 6.5 ton rating and 7/8 inch size to your recovery straps and rigging.
Confirm the rating against your recovery setup before ordering.
What’s included
One 7/8 inch D-ring shackle in gloss black.
