Overview

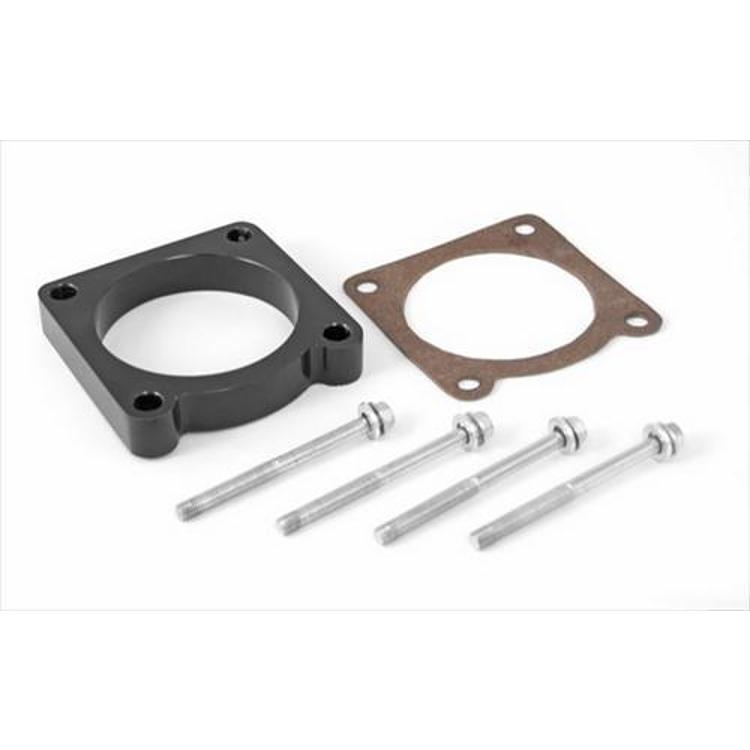

The Rugged Ridge 17755.02 is a throttle body spacer that raises the throttle body 1/2 inch above the intake manifold. It is designed to help optimize power and performance by drawing in colder, denser air, and its large bore allows a larger volume of air to flow through.
The 17755.02 is made for 3.8L engines and is intended for racing or non-highway use only. Confirm fit for your 3.8L vehicle’s year, model and trim before ordering.
Key features
- Raises the throttle body 1/2 inch above the intake manifold
- Large bore design for a larger volume of air
- Solid aluminum construction with a black anodized finish
- Bolt-on application for 3.8L engines
- Intended for racing or non-highway use only
Choosing the right height
Throttle body spacer height is a trade-off between clearance and how far the throttle body moves away from the intake manifold. A spacer that raises the throttle body changes the position of the throttle linkage, the cable bracket and any hose routing nearby. Before buying, measure the space under the hood and make sure the spacer will not put strain on the linkage at full travel.
Solid aluminum holds its shape under heat, but it adds weight to the intake area and can change how the air filter box and tubes fit. Black anodized finish helps resist scratches in the engine bay. Because the part is intended for racing or non-highway use, plan the upgrade with the rest of your build in mind, such as exhaust and cooling changes. Keep the linkage clear of the hood latch and nearby hoses.
- Check throttle linkage travel at full throttle
- Confirm hose and cable routing after install
- Recheck bolts after the first drives
Specifications
| Brand | Rugged Ridge |
|---|---|
| Part number | 17755.02 |
| UPC | 804314228743 |
| Material | Solid aluminum |
| Finish | Black anodized |
| Bore | Smooth |
| Spacer height | 1/2 inch |
| Engine | 3.8L |
| Fit type | Direct fit |
| Use | Racing or non-highway only |
| Emissions note | Not legal for use in California or other CARB-standard states |
Vehicle fitment
Rugged Ridge names only 3.8L engines for the 17755.02, with no make, model or years. Compare your engine and vehicle details before installing.
Confirm your vehicle’s year, model and trim before ordering.
Installation notes
Because the spacer raises the throttle body 1/2 inch, check throttle linkage and any cable or hose routing after the bolt-on install.
What’s included
Sort the hardware and parts before you begin the install.
