Overview

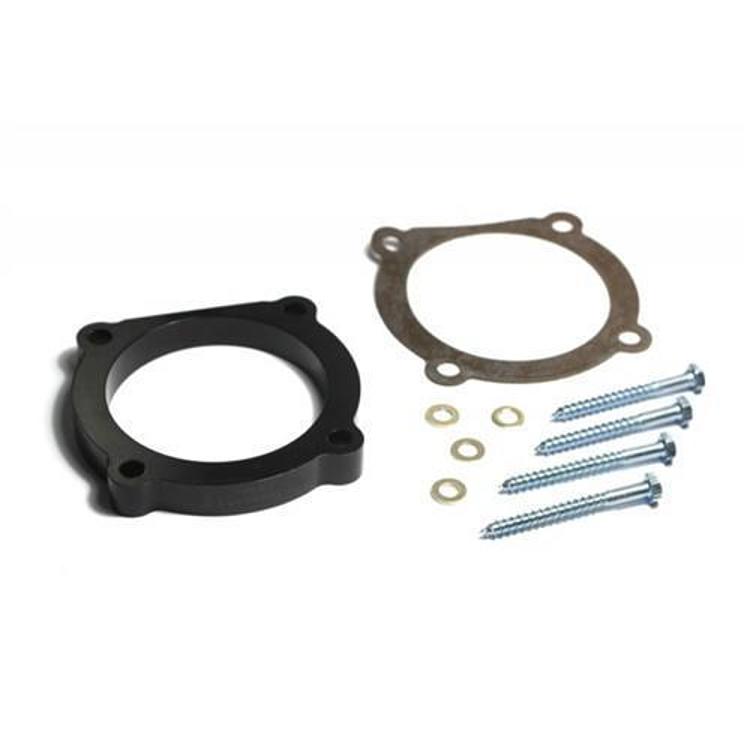

The Rugged Ridge Throttle Body Spacer (Anodized), part number 17755.03, is a solid aluminum spacer for the 3.6L V6 engine in the 2012-2018 Jeep Wrangler (JK).
The spacer raises the throttle body 1 inch above the intake manifold. The extra space draws in colder, denser air, and the large bore design lets the engine take in a larger volume of air. It is a bolt-on part for 3.6L engines.
The part is not legal for use in California or other states adopting CARB standards and is for racing or non-highway use only.
Key features
- Raises the throttle body 1 inch above the intake manifold
- Solid aluminum construction
- Anodized finish
- Smooth bore, large bore design
- Bolt-on performance for 3.6L V6 engines
- Direct fit for 2 and 4 door Wrangler models
- Racing or non-highway use only
Before you install
A throttle body spacer changes the distance between the throttle body and the intake manifold, so it affects more than the top of the engine. Check the intake hoses, sensor wiring and clamps after installation, since they may need to reach a new position. Anything connected to the throttle body should move freely without strain.
Spacers are usually installed with a few related parts. Replace gaskets and seals rather than reusing old ones, and re-check the fasteners after the first heat cycle. Watch for vacuum leaks, rough idle or warning lights after installation, since those can point to a loose connection or a seal that did not seat properly. Keep the intake clean, and inspect the spacer for cracks or corrosion during routine maintenance.
- Inspect intake clamps for cracks
- Check sensor connectors after installation
- Note any changes in idle during the first drives
Specifications
| Brand | Rugged Ridge |
|---|---|
| Part number | 17755.03 |
| UPC | 804314243555 |
| Product type | Throttle body spacer |
| Engine | 3.6L V6 |
| Height added | 1 inch |
| Material | Aluminum |
| Finish | Anodized |
| Bore | Smooth |
| Fit type | Direct fit |
| Use | Racing or non-highway use only; not legal in California or other CARB states |
Vehicle fitment
It fits the 2012-2018 Jeep Wrangler (JK) in 75th Anniversary, Rubicon, Sahara, Sport, Sport S, Unlimited 75th Anniversary, Unlimited Rubicon, Unlimited Sahara and Unlimited Sport trims.
It is made for the Wrangler JK with the 3.6L V6 engine. Before ordering, confirm the fit against your vehicle’s year, model, trim and engine.
Installation notes
Work on a cool engine with the battery disconnected, and tighten fasteners to the torque values in your vehicle’s service manual.
- Replace gaskets and seals as the manufacturer directs, and keep ignition sources away from fuel system components.
- Check for leaks and loose connections after the first start and again after the first miles of driving.
- Follow local emissions regulations for any engine or exhaust related part.
