Overview

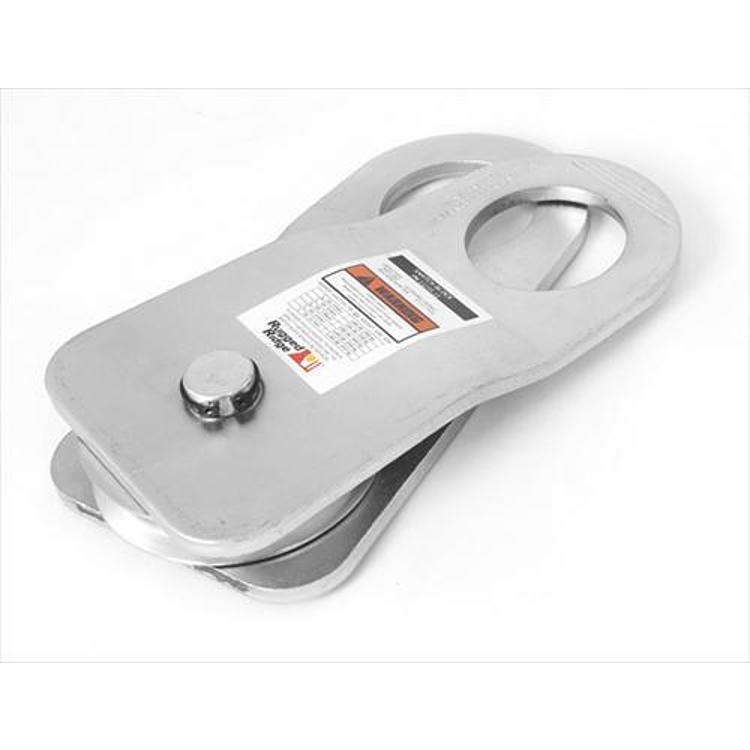

The Rugged Ridge 11235.11 is a snatch block pulley, a 9 inch long pulley built from 1/4 cold rolled steel that doubles winch capacity and changes the pull angle. It is rated for use up to 30,000 lbs with winch cables up to 1/2 inch diameter.
The pulley can double winch capacity or reduce strain on the winch motor and electrical system. It changes the angle of a pull when a straight line is not workable in recovery work. It is universal fit and attaches to rigging rather than a specific vehicle.
Key features
- Doubles winch capacity when rigged as a snatch block
- Changes the angle of the pull in recovery work
- Can reduce strain on the winch motor and electrical system
- 9 inch long pulley
- Built from 1/4 cold rolled steel
- Rated for use up to 30,000 lbs with winch cables up to 1/2 inch
Rigging a snatch block safely
A snatch block is a rigging tool, so its strength depends on the anchor, the shackle and the line running through it. Use an anchor point that is rated for the pull and attach the pulley with a shackle that matches its eye. Keep the line running straight through the sheave where possible, since a sharp bend in the line adds load and wear.
Before each recovery, check that the sheave turns freely and the cable or line runs without binding. Look for cracks, bends or deformation in the body. A pulley that has been overloaded should be retired, even if it looks intact, because internal stress may not show on the surface.
- Use rated shackles and anchor points
- Keep the line straight through the sheave
- Inspect the sheave before each use
Specifications
| Brand | Rugged Ridge |
|---|---|
| Part number | 11235.11 |
| UPC | 804314221386 |
| Length | 9 in |
| Material | 1/4 cold rolled steel |
| Rating | Up to 30,000 lbs |
| Maximum winch cable | 1/2 inch diameter |
| Fitment | Universal fit |
Vehicle fitment
This pulley is not vehicle-specific. Match its 30,000 lbs rating and 1/2 inch cable limit to the winch it is rigged with.
Confirm your vehicle’s year, model and trim before ordering.
What’s included
Only the pulley is included. No hardware or extra parts come with it.
