Overview

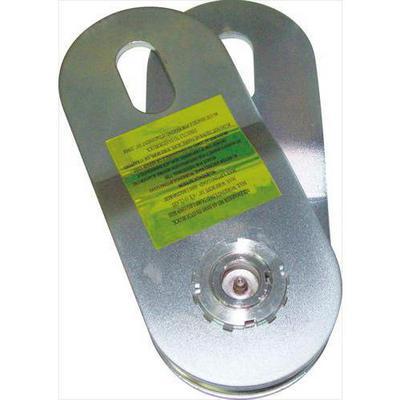

The Mile Marker snatch block, part number MIL60-50105 (model 60-50105), is an ATV snatch block rated at 8,000 pounds (3629 kgs). A snatch block lets a winch pull loads that are double its capacity by halving the load on the winch.
The block also supports winching from varying angles, which helps when a straight-line pull is not practical. It is universal fit, so it is not tied to one vehicle model.
Key features
- Rated at 8,000 pounds (3629 kgs)
- Lets a winch handle loads double its capacity by halving the load on the winch
- Supports winching from varying angles
- ATV snatch block
Choosing a recovery line
A snatch block works best when the recovery line runs cleanly through the sheave. Set the block so the line feeds straight in, and avoid letting it bind against the housing. Angled pulls put side loads on the block and its shackle, so keep the anchor point and the line aligned as much as the terrain allows.
Before buying a line to pair with a snatch block, consider its diameter and rated strength against the block itself. The weakest link in the rig sets the safe limit, so every shackle, strap and anchor should be rated at or above the load you plan to move.
- Match the line diameter to the sheave groove
- Use rated shackles at every connection
- Keep the pull path clear of people and debris
Specifications
| Brand | Mile Marker |
|---|---|
| Part number | MIL60-50105 |
| Model | 60-50105 |
| Rating | 8,000 pounds (3629 kgs) |
| Type | ATV snatch block |
| Fitment | Universal Fit |
Vehicle fitment
This snatch block is universal fit, so it is not tied to a single vehicle model. It names no particular winch, line or vehicle, so match the 8,000-pound rating to your own winch and recovery setup.
Confirm your vehicle’s year, model and trim before ordering.
Installation notes
Keep any rigging within the block’s 8,000-pound rating, including the recovery line and anchor point you use.
What’s included
Check the hooks, straps and mounting hardware you need against your own setup before rigging.
