Overview

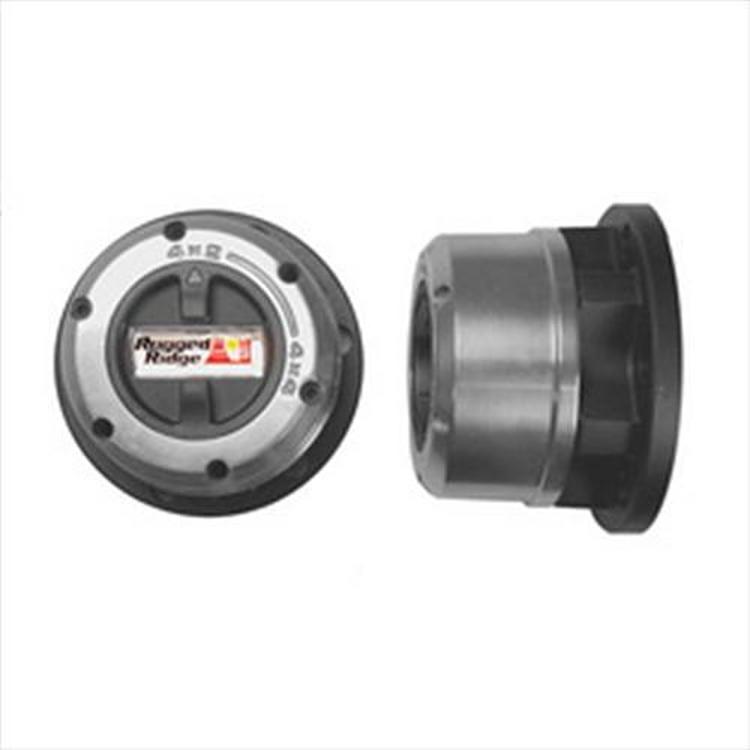

The Rugged Ridge 15001.13 is a pair of manual locking hubs with 26 splines and a polished aluminum finish, made for the 1986–1995 Toyota 4Runner, the 1993–1998 Toyota T100 and the 1995–2000 Toyota Tacoma.
Rugged Ridge says locking hubs take a lot of wear off-road and that this pair is made from impact resistant nodular iron, with a corrosion resistant die cast aluminum cap. The knob is nylon. Rugged Ridge also calls its manual locking hubs the world’s toughest, which is the company’s own claim.
The Toyota list spans three truck lines, which share the 26 spline outer axle size used by this pair. Rugged Ridge builds the hubs from nodular iron with a die cast aluminum cap so that the body takes impact while the cap resists corrosion.
Key features
- Pair of manual locking hubs
- 26 splines
- Impact resistant nodular iron
- Corrosion resistant die cast aluminum cap
- Nylon knob
- Polished aluminum finish
- Fits 4Runner, T100 and Tacoma
Engaging and maintaining the hubs
Locking hubs connect the front wheels to the axle only when they are turned to the locked position, so the front axle stays free for two-wheel driving. Before a trail run, lock both hubs with the vehicle stopped, and if the drivetrain feels stiff, roll the truck a short distance and try again. Keep the knobs and caps free of mud and grit, since debris around the lock mechanism can make them hard to turn.
Spline count matters more than the hub body when you replace a set. Confirm that the new pair matches your axle before removing the old hubs, and keep both hubs as a matched pair so engagement feels the same on each wheel. Most hubs are replaced together with their gaskets and seals, so have those ready when you open the axle end.
- Lock both hubs before engaging four-wheel drive
- Clean grit from the knob and cap regularly
- Replace gaskets when the hubs come off
- Inspect the axle splines for wear when fitting new hubs
Specifications
| Brand | Rugged Ridge |
|---|---|
| Part number | 15001.13 |
| UPC | 804314221546 |
| Part type | Manual locking hubs, pair |
| Spline count | 26 splines |
| Body material | Nodular iron |
| Cap | Die cast aluminum |
| Knob material | Nylon |
| Finish | Polished aluminum |
| Fitment type | Direct fit |
Vehicle fitment
The 15001.13 hubs fit these Toyota models:
- 1986–1995 Toyota 4Runner (DLX, SR5)
- 1993–1998 Toyota T100 (Base, DLX, DX, SR5)
- 1993, 1995 Toyota T100 One-Ton (DLX)
- 1995–2000 Toyota Tacoma (Base, Limited, Pre Runner, SR5)
The fit covers the 1986–1995 4Runner, the 1993–1998 T100 and the 1995–2000 Tacoma. Earlier Toyota trucks and the 2001 and newer Tacoma fall outside this range. Confirm fit for your vehicle’s year, model and trim before ordering.
Installation notes
Manual hubs have to be locked by hand before four-wheel drive works, so plan to step out of the vehicle to engage them. Check that your axle uses 26 splines first.
