Overview

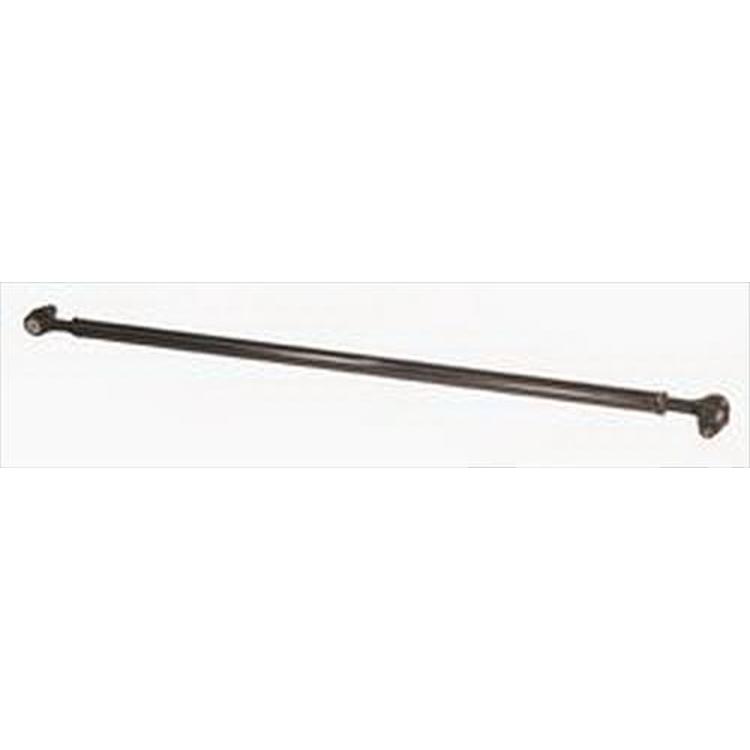

The Rugged Ridge 18050.54 is a heavy-duty tie rod set for narrow track axles, fitting Jeep CJ5, CJ6 and CJ7 models and the 1981 Jeep Scrambler. It is a bolt-on upgrade that helps prevent bent tie rods when larger tires are fitted.
The tubes are 1-1/4 inch ID steel, cold rolled, pierced and drawn through dies to a 1/4 in. wall. They are true DOM with no seams or welds, and the 7/8 inch rod ends are designed for one ton strength without modifying the steering knuckles.
Key features
- Bolt-on tie rod upgrade for narrow track axles
- True DOM steel tubing with no seams or welds
- 1-1/4 inch ID tubes with a 1/4 in. wall
- 7/8 inch heavy duty rod ends with standard tapered ends
- Fits stock steering knuckles without modification
- Includes 2 tie rod ends
Before you install
Tie rods on a narrow track axle carry the steering load from the drag link to the knuckles, so their strength matters most when larger tires add force to the linkage. Upgrading the tubes helps resist bending, but it does not change the rest of the steering setup. Look at tire size, steering box play and track width together before deciding how far the upgrade needs to go.
Tie rods are often replaced together with ends, sleeves and the drag link, since worn ends can throw off the toe setting just as quickly as a bent tube. Expect the toe setting to change after fitting, and have it checked once the vehicle is back on the road. Fresh boots and grease in the ends help the parts last longer.
- Check the drag link and ball joints at the same time
- Inspect rod end boots for cracks or leaks
- Recheck bolts after the first few trail runs
Specifications
| Brand | Rugged Ridge |
|---|---|
| Part number | 18050.54 |
| UPC | 804314123710 |
| Position | Outer |
| Tube size | 1-1/4 inch ID |
| Tube wall | 1/4 in. |
| Tube construction | Cold rolled, pierced and drawn steel, true DOM |
| Rod end size | 7/8 inch |
| Included | 2 tie rod ends |
| Fitment | Direct fit |
Vehicle fitment
It fits these Jeep models: 1972–1983 CJ5 (Base, Golden Eagle, Laredo, Limited and Renegade); 1972–1975 CJ6 (Base); 1976–1981 CJ7 (Base, Golden Eagle, Golden Hawk, Laredo and Renegade); and 1981 Scrambler (Base).
Wrangler and Cherokee models are not on this list. Confirm your vehicle’s year, model and trim before ordering.
Installation notes
This is a bolt-on part that needs no steering knuckle modification. Because it is steering linkage, have the toe setting checked by an alignment shop after installation.
What’s included
- Heavy-duty tie rod tubes
- 2 tie rod ends with standard tapered ends
