Overview

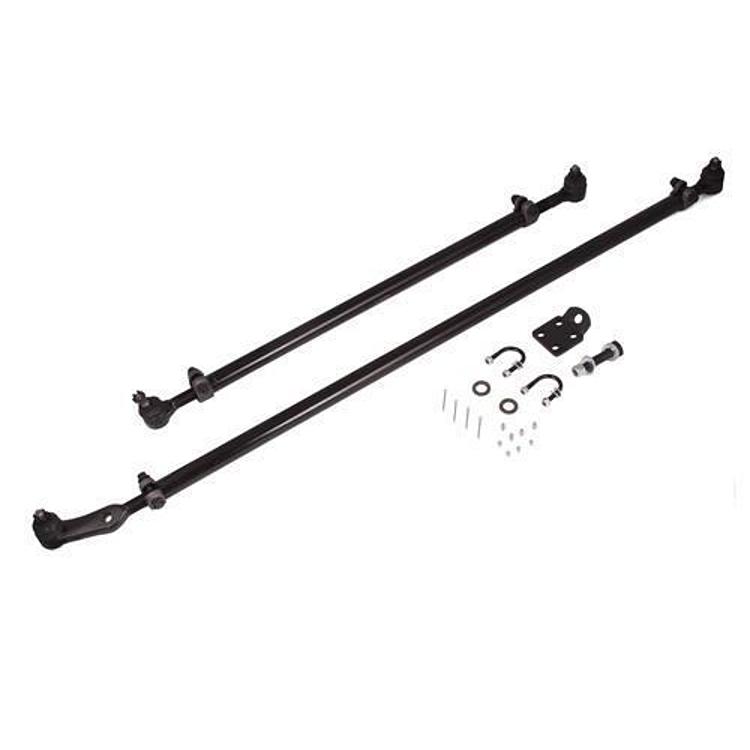

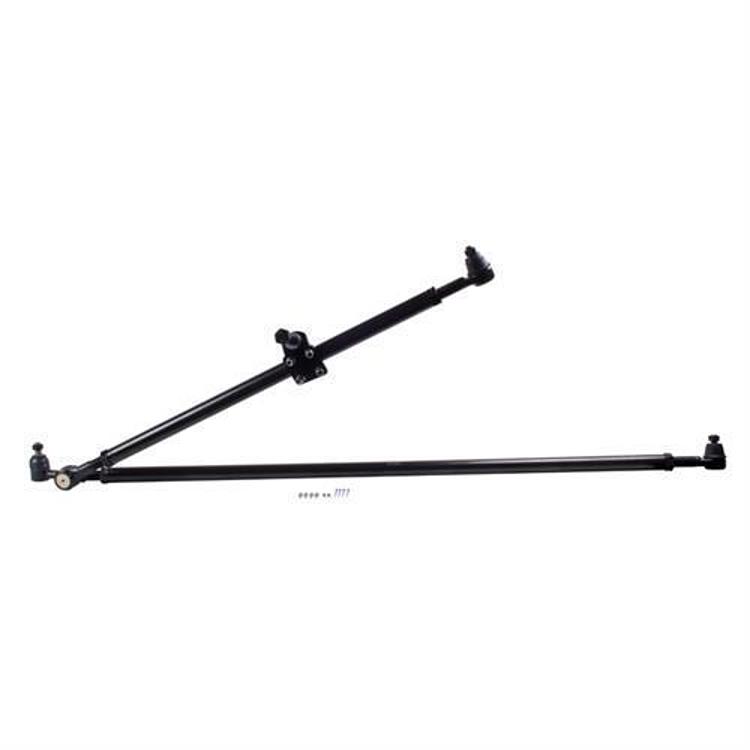

The Rugged Ridge 18050.82 is a heavy-duty tie rod and drag link kit for Jeep Cherokee (XJ), Grand Cherokee (ZJ), Wrangler Unlimited (LJ) and Wrangler (TJ) vehicles, set up for the outer position. It includes four tie rod ends, two rods and a steering damper bracket, and it is a bolt-on option for bent tie rods when running larger tires.

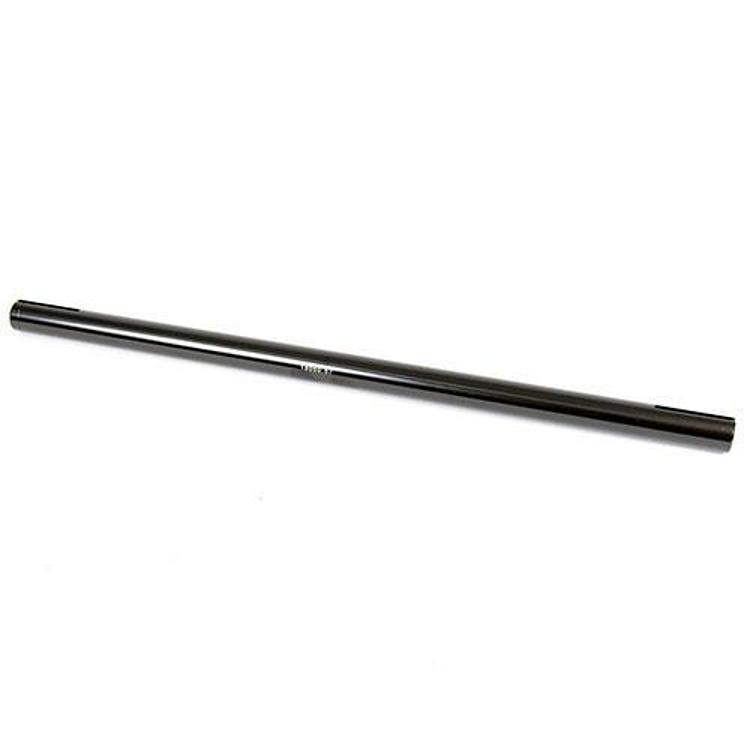

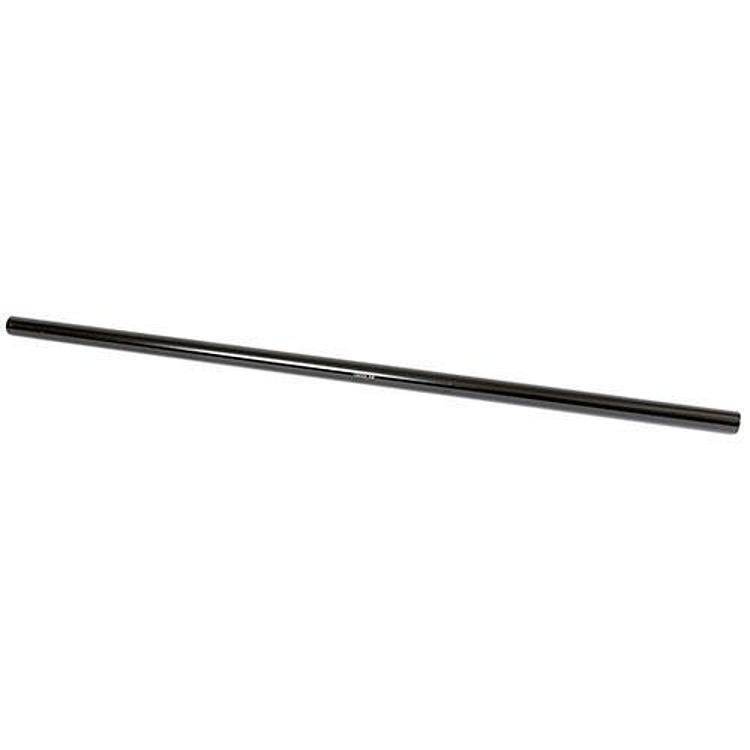

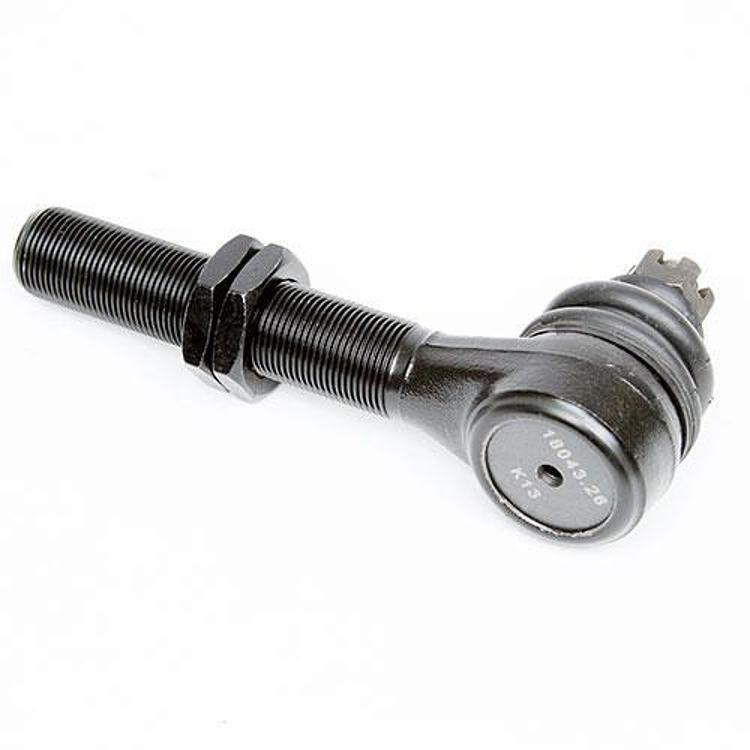

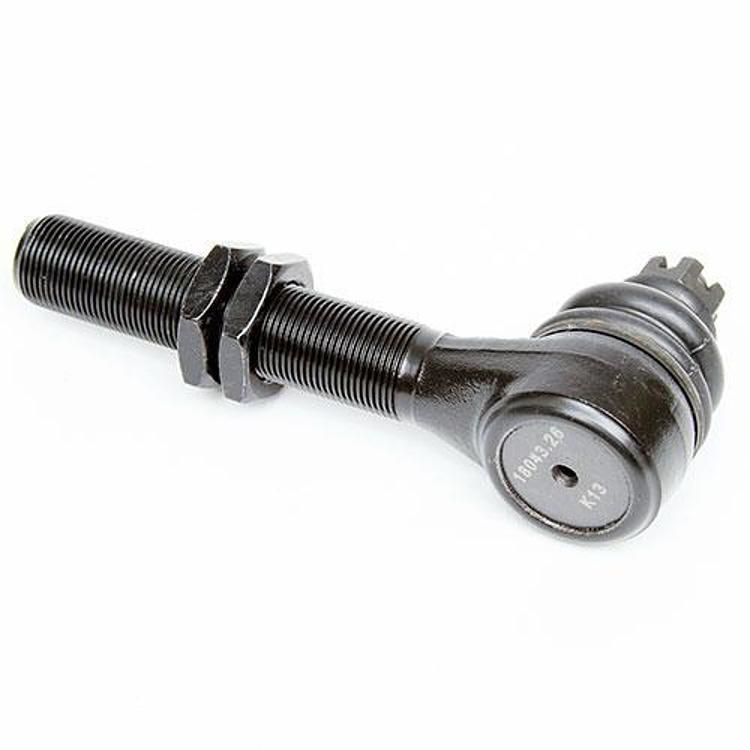

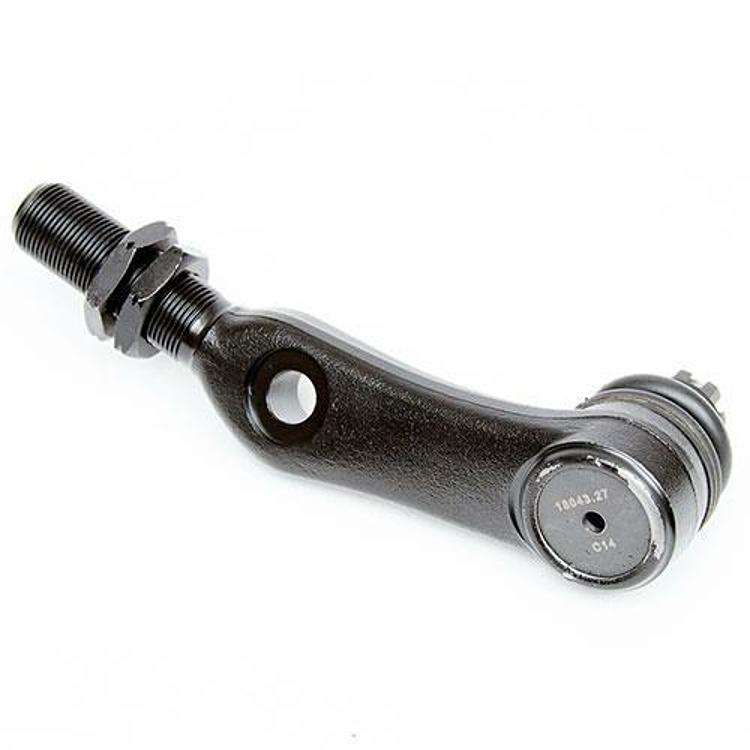

The rods are 1.25 inch OD steel tubing with a 1/4 inch wall, drawn over mandrel (DOM) with no seams or welds. The 7/8 inch rod ends have standard tapered ends for stock knuckles and are rated at one ton strength. Setups the kit will not suit are covered in the installation notes below.
Key features
- Four tie rod ends, two rods and a steering damper bracket
- Bolt-on design
- 1.25 inch OD SAE steel tubing with 1/4 inch wall
- DOM tubing with no seams or welds, per the manufacturer

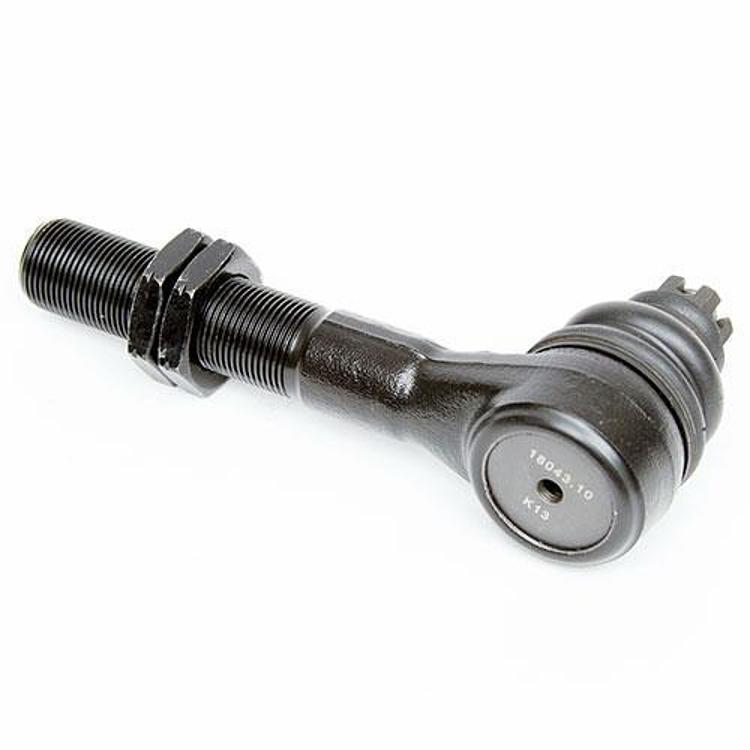

- 7/8 inch heavy-duty rod ends with standard tapered ends
- Complete kit
Steering geometry and wheel clearance
Larger tires put more leverage on the steering, so tie rods and drag links can take more force during turns and bumps. Wheel clearance also matters, because a tire can rub the frame or suspension when the steering turns to full lock. Check clearance with the steering at both stops before driving, and keep an eye on the tires afterward.

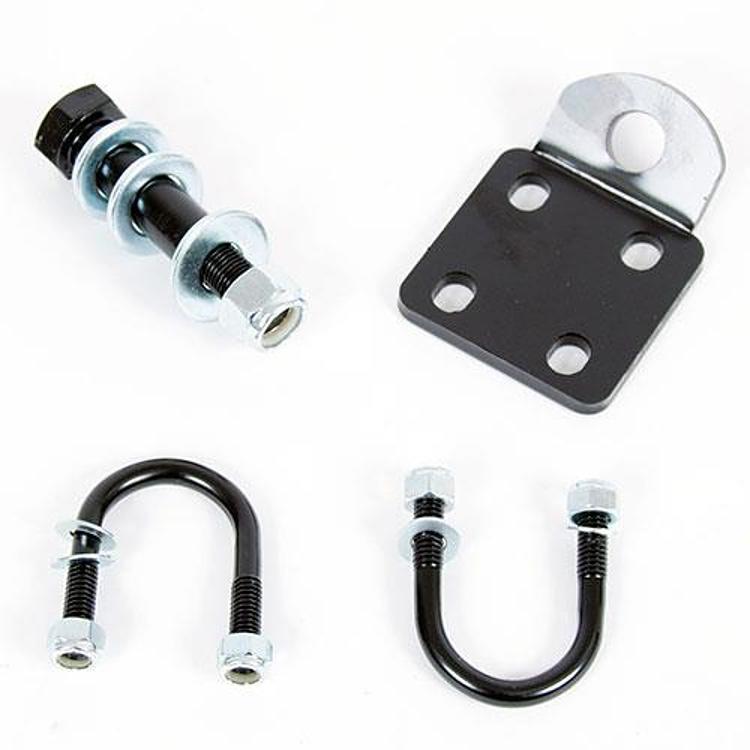

A steering damper helps control kickback on rough ground, and its bracket should be checked for cracks or loose mounts after installation. Lift height changes the angles at the steering links, which is why the lift range matters. Once the kit is in, have the front alignment checked and recheck the tie rod ends after the first few trail runs.
Specifications
| Brand | Rugged Ridge |
|---|---|
| Part number | 18050.82 |
| UPC | 804314123789 |
| Tubing | 1.25 inch OD SAE steel, 1/4 inch wall |
| Rod ends | 7/8 inch heavy-duty, standard tapered |
| Included | 4 tie rod ends, 2 rods, steering damper bracket |
| Position | Outer |
| Engine noted | 4.0L 6 cylinder |
Vehicle fitment
It fits 1984 to 2001 Jeep Cherokee (XJ) models, 1993 to 1998 Grand Cherokee (ZJ) models, 2004 to 2006 Wrangler Unlimited (LJ) models, and 1997 to 2006 Wrangler (TJ) models. Trims include Base, Laredo and Limited on the Grand Cherokee, Unlimited and Unlimited Rubicon on the LJ, and Rubicon, Sahara and Sport on the TJ.
Wrangler JK and JL models, and Wrangler LJ models other than the Unlimited, are not on the list. Confirm your vehicle’s year, model and trim before ordering.
Installation notes
The kit does not work with right hand drive vehicles or with factory Rubicon wheels. It is not recommended for lifts over 4 inches or under 2 inches. Check your steering configuration, wheels and lift height before fitting, then align the front end.
What’s included

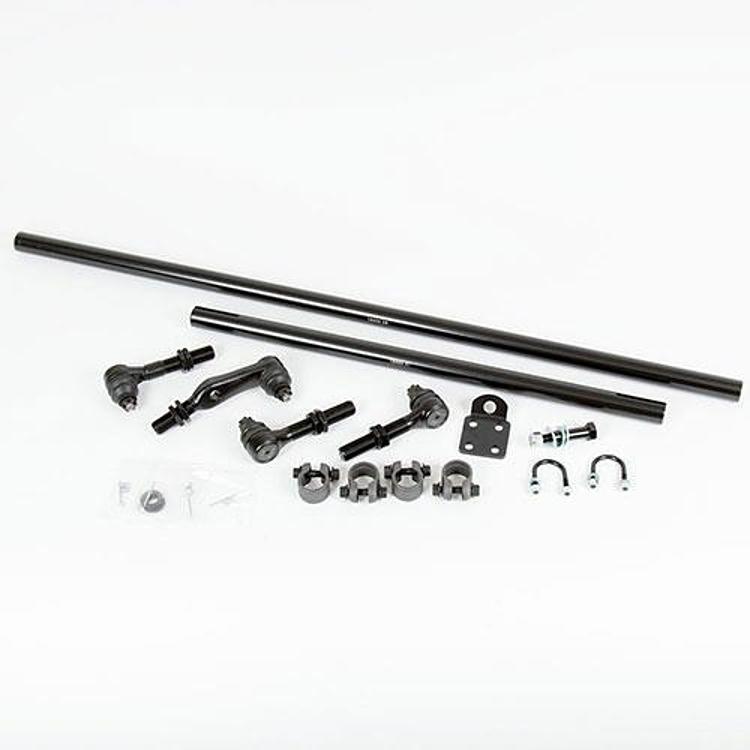

Four tie rod ends, two rods and a steering damper bracket make up the complete kit.
