Rubicon Express TJ Rear Passenger Side Sway Bar Bracket – RE9977

Rubicon Express

Shop on Amazon

Compare current versions and compatible options on Amazon, then check out with your Amazon account.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • Rear passenger side sway bar bracket for a custom axle in a TJ Wrangler
  • Bare steel, welding required
  • Laser cut from 3/16 inch cold rolled steel and CNC formed

Description

Overview

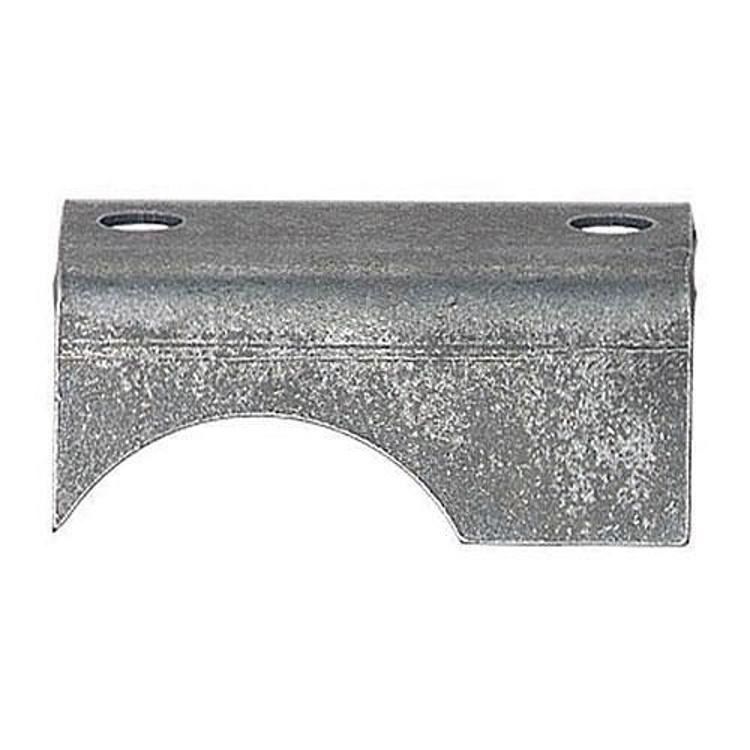

The Rubicon Express RE9977 is a rear passenger side sway bar bracket for a custom axle in the TJ Wrangler. The TJ is the 1997-2006 Wrangler. It is the passenger side counterpart of the driver side bracket and is used to mount a custom axle cleanly in a TJ.

Each bracket is laser cut from 3/16 inch cold rolled steel and then CNC formed. It arrives as bare steel and must be welded in place. It is rear-mounted and matches the TJ rear passenger side application.

Key features

  • Rear sway bar bracket
  • Passenger side
  • Laser cut from 3/16 inch cold rolled steel
  • CNC formed for precision
  • Bare steel, welding required

Matching the two sides

A passenger side bracket is only useful when it is level with its partner, because uneven brackets load the sway bar on one side more than the other. Start by setting the axle, then position the bracket against the tube and mark its location before any heat is applied. Recheck the mark after tacking so the bracket has not drifted.

Plan the job so both brackets are set in the same session when possible. Measure from a fixed reference such as the axle centerline to each bracket, then compare the readings. Once welded, inspect both joints for cracks and check that the sway bar moves freely through its range. Replace any worn bar bushings at the same time, since they are easier to reach with the bracket out of the way.

Specifications

Brand Rubicon Express
UPC 614901442427
Position Rear, passenger side
Material 3/16 inch cold rolled steel
Finish Bare steel
Installation Welding required

Vehicle fitment

Check your year, model and trim against the TJ application before you order. The bracket is for the 1997-2006 Jeep Wrangler (TJ) rear passenger side application.

Other Wrangler generations are not covered by this bracket. Confirm your vehicle’s year, model and trim before ordering.

Installation notes

Weld the bracket to the custom axle on the passenger side, and match it with the driver side bracket so both sides sit at the same height. Check the sway bar clearance at full travel after the install.

What’s included

One rear passenger side sway bar bracket in bare steel. Welding is required, so plan the welding and mounting hardware before starting.

SKU: R/ERE9977 Category:

Specification

Shipping weight 0.85 lbs
Package dimensions 3.90 × 2.30 × 2.00 in
brands

Fitment

VehicleYearsTrims
Jeep Wrangler (TJ) likely fits1997–2006All

Vehicles marked "likely fits" are inferred from the product description rather than a manufacturer fitment list. Please confirm fitment with the manufacturer before ordering.

Use “Select your vehicle” at the top of the page to check this part against your vehicle.

Questions & Answers

Which side is the RE9977 for?

It is the rear passenger side sway bar bracket. The driver side version is a separate part, the RE9975, so order it alongside this one for a matched pair.

Does the RE9977 need welding?

Yes. The bracket is bare steel and welding is required to mount it on a custom axle. Dry fit it and check the height against the driver side before welding.

Does the RE9977 fit a 2000 Jeep Wrangler TJ?

Yes, the TJ rear passenger side application is the 1997-2006 Wrangler, which includes 2000. Confirm your year, model and trim before ordering, and confirm the bracket suits your custom axle.

How do I check the bracket is level with the other side?

Measure from a fixed point such as the axle centerline or the frame to each bracket with the axle level and the bar in place. Matching measurements mean the sway bar loads both sides evenly, so adjust before the final weld.
