Overview

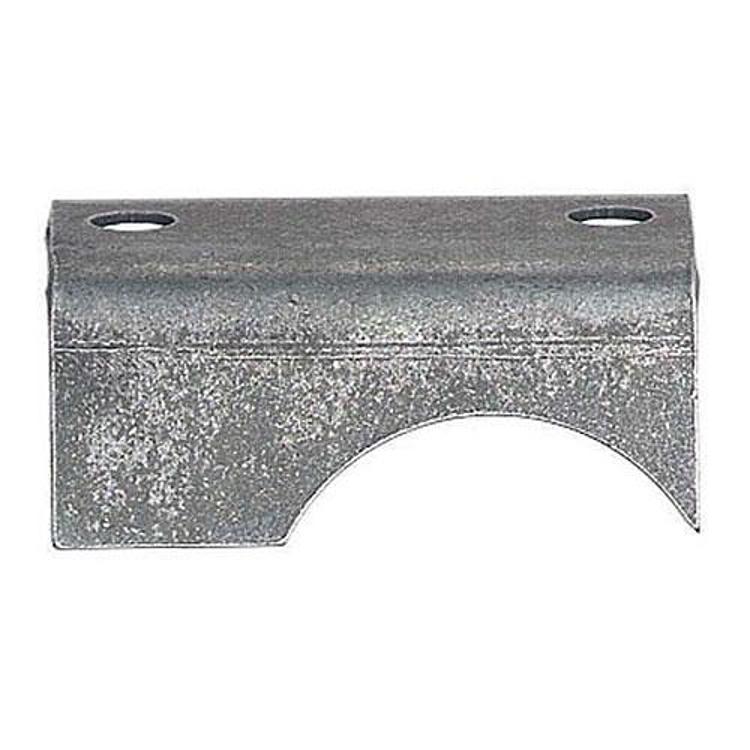

The Rubicon Express RE9975 is a rear driver side sway bar bracket for a custom axle in a TJ Wrangler. The TJ is the 1997-2006 Wrangler, and the bracket is designed to mount a custom axle cleanly. It is laser cut from 3/16 inch cold rolled steel and then CNC formed.
The bracket arrives as bare steel and must be welded in place. It is a rear location bracket with a universal fit, sized for the TJ rear axle application.
Key features
- Rear sway bar bracket
- Driver side
- Laser cut from 3/16 inch cold rolled steel
- CNC formed
- Bare steel, welding required
Welding and fitting
A custom bracket is only as good as the weld and the surfaces it sits on. Clean the mounting area to bare metal, fit the bracket in place, and tack it before final welding so the sway bar can be checked for height and alignment. Weld on both sides of the joint where access allows, and let the steel cool before the bar is loaded.
After welding, the bar’s movement should be checked through the full range of suspension travel. Confirm the axle does not contact the bracket or the body, and look for clearance around the brake lines and fuel lines near the mounting point. Sway bar end links and bushings are often replaced alongside a new bracket, since worn parts can change how the bar sits.
- Grind the mounting surfaces clean before fitting
- Tack weld and check alignment before final welds
- Check clearance at full suspension travel
- Inspect end links and bushings during the same job
Specifications
| Brand | Rubicon Express |
|---|---|
| UPC | 614901442403 |
| Position | Rear, driver side |
| Material | 3/16 inch cold rolled steel |
| Finish | Bare steel |
| Installation | Welding required |
Vehicle fitment
The bracket is for the 1997-2006 Jeep Wrangler (TJ) rear driver side application. The axle location is rear, with a universal fit.
The bracket is for the TJ rear axle application, so other Wrangler generations are not covered. Confirm your vehicle’s year, model and trim before ordering.
Installation notes
The bracket must be welded, so the install needs a welder and clean mounting surfaces. Check the sway bar height and the axle clearance at full suspension travel after the bracket is set.
What’s included
One rear driver side sway bar bracket in bare steel. Welding is required, and no welding hardware is included.
