Overview

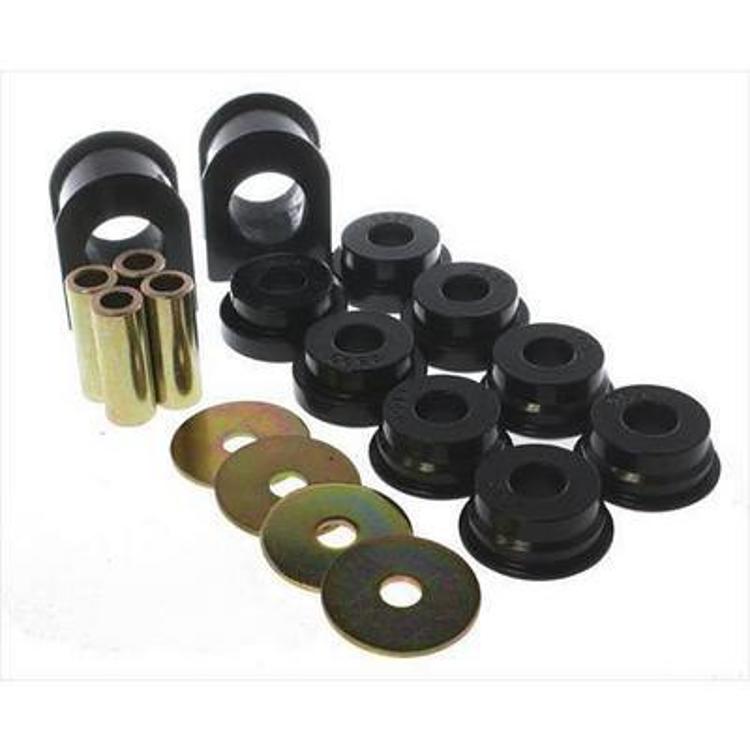

The Energy Suspension 4.5186G is a front sway bar bushing set in black polyurethane, with a 32mm bar size and sway bar end link bushings included. Energy Suspension positions the polyurethane as a replacement for original rubber, which it describes as short lived. The greaseable bushings take zerk fittings, so the set can be lubricated over time.
This is a direct fit design, and no make, model or year is named. Confirm the application before ordering.
Key features
- Front sway bar bushing set
- Includes sway bar end link bushings
- Greaseable bushings with zerk type fittings
- Channels carry lube to where it is needed.
- Black polyurethane construction
Greasing and maintenance
Zerk-fitted bushings let you push fresh grease into the bushing body, which pushes out dirt and water that would otherwise accelerate wear. Grease is most useful on surfaces that rotate or slide, so the bushing works more smoothly over time. Polyurethane does not rust, but it can still crack or harden if neglected.
Set a regular greasing routine, for example at each oil change or after wet and off-road use. Wipe the zerk fittings clean before attaching the grease gun so dirt does not enter the bushing. Stop when fresh grease appears at the bushing edge, which shows that old grease has been pushed out.
A bushing that squeaks, clunks or feels loose after greasing may be worn. Inspect the end link bushings at the same time, since they are often replaced in the same set.
- Grease at a regular service interval
- Clean fittings before attaching the gun
- Watch for squeaks or clunks
- Inspect end link bushings with the bar
Specifications
| Brand | Energy Suspension |
|---|---|
| Part number | 4.5186G |
| UPC | 703639060628 |
| Color | Black |
| Bar size | 32mm |
| Position | Front |
| Material | Polyurethane |
| Greaseable | Yes, zerk type fittings |
Vehicle fitment
Only a direct fit design is shown, with no make, model or year.
Verify your vehicle’s year, model and trim, then compare the front bar’s size with the 32mm bushing set before buying.
Installation notes
The bushings have zerk type fittings for periodic greasing. Use a standard grease gun on the fittings after installation.
What’s included
The set includes the sway bar bushings and the end link bushings. Check the package contents for hardware and brackets before starting.
