Rubicon Express .75 Inch Rear Coil Spring Spacer Lift Kit – RE1321

Rubicon Express

Shop Rubicon Express Coil Spring Spacers on Amazon

Compare current versions and compatible options on Amazon, then check out with your Amazon account.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • Rubicon Express three-quarter-inch rear coil spring spacer, part number RE1321
  • Rear position, sold as a pair
  • Covers 2-door and 4-door models
  • UPC 614901437737

Description

Overview

The Rubicon Express three-quarter inch Rear Coil Spring Spacer Lift Kit, part number RE1321, is a pair of rear coil spring spacers. The title and short text give a three-quarter-inch lift, while the specification table lists 1 inch, so confirm the lift height with Rubicon Express before ordering.

Coil spring spacers add lift to the rear coil springs and keep their performance intact. They also help with extra rear weight.

Key features

  • Rear position
  • Sold as a pair
  • Fits 2-door and 4-door models
  • Spacers stay in place off road

Rear spacers and driveline

Rear coil spacers raise the axle and shift the driveshaft angle, so the rear end changes as well as the ride height. They suit a vehicle that sits low at the back, especially one carrying extra weight over the rear axle. The coil keeps its original rate because only the seat moves, which is why spacers are a simple rear option.

Think about the shocks and brake lines before choosing a rear height. Shock length should match the new travel, and brake hoses may need a look once the axle has moved. Bump stops and rear sway links are also worth inspecting. Check the spacer seats during routine service, since loose or worn seats can let the spring shift and change the height on one side.

  • Check driveshaft angle after installation
  • Inspect rear brake hoses for stretch
  • Look at bump stop clearance

Specifications

Brand Rubicon Express
Part number RE1321
UPC 614901437737
Lift height
Position Rear
Fitment Direct fit
Sold as Pair

Vehicle fitment

No years or models are named for this rear spacer, so the fit should be confirmed before ordering.

Confirm your vehicle’s year, model and trim before ordering, and confirm the lift height, since the title and the specification table differ.

Installation notes

The rear spacers sit between the coil spring and its seat, so support the rear axle safely while the springs are changed. Check the rear shocks and brake lines after the lift.

What’s included

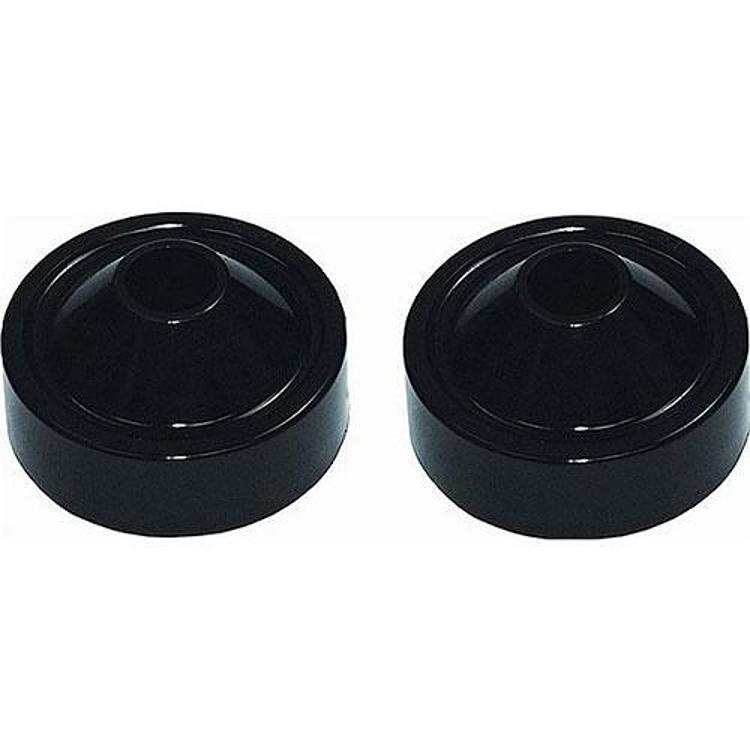

A pair of rear coil spring spacers.

SKU: R/ERE1321 Category:

Specification

Shipping weight 1.95 lbs
Package dimensions 10.00 × 5.30 × 4.40 in
brands

Questions & Answers

How much lift does the RE1321 rear spacer give?

The title and short text give three-quarter inch, while the specification table lists 1 inch. Confirm the figure with Rubicon Express before ordering, since the two differ.

Is the RE1321 a front spacer?

No. It is a rear spacer, and the front spacer is part number RE1320. The kit is sold as a pair.

Does the RE1321 fit 4-door Jeeps?

Yes, it suits 2-door and 4-door models. Before ordering, match the year, model and trim to your vehicle, and confirm the lift height first.

Are rear spacers a good choice for towing?

Rear spacers can help level a vehicle carrying extra rear weight, but they do not add load capacity. Check the rear springs and shocks against the load you carry, since the spacer only changes the height.
