Rigid Industries Truck-Lite 5 Inch x 7 Inch LED Headlight (Chrome) – 55003

Rigid Industries

Shop on Amazon

Compare current versions and compatible options on Amazon, then check out with your Amazon account.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • Rigid Industries Truck-Lite 5 x 7 inch chrome LED headlight, part number 55003
  • Supplied as a kit covering both headlights
  • Die cast aluminum housing with hard coated polycarbonate lens
  • Bulb-free LED design with encapsulated circuitry
  • Comes with a 3-year limited warranty

Description

Overview

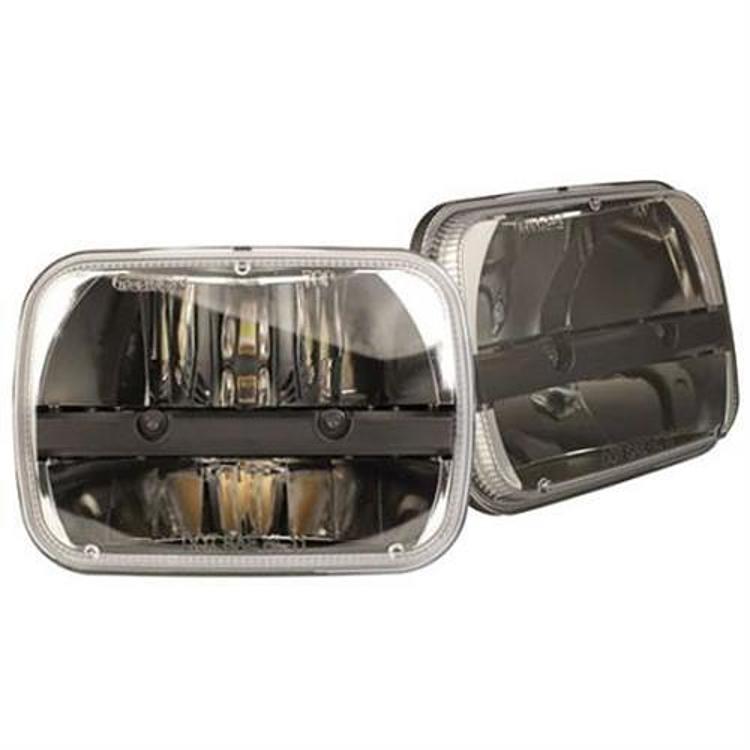

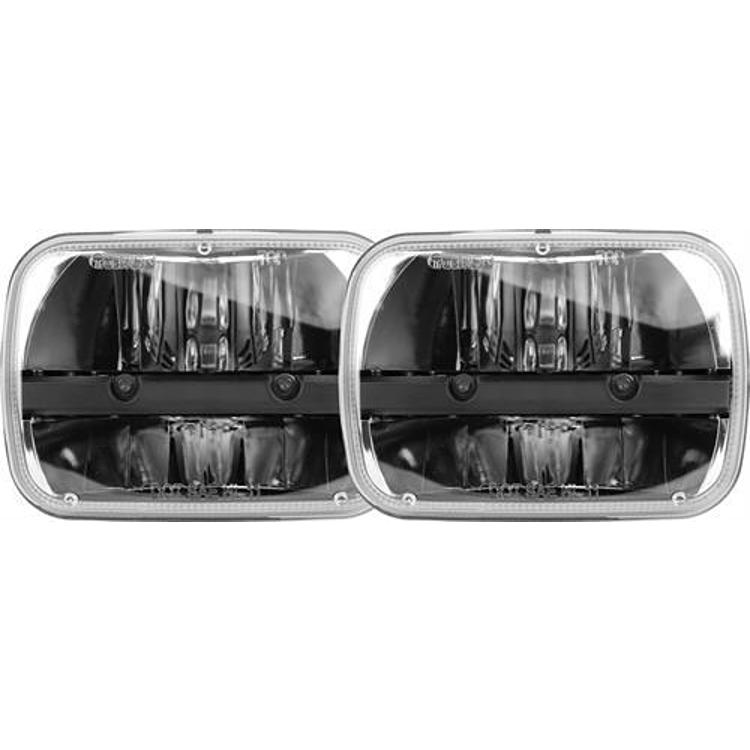

The Rigid Industries Truck-Lite 5 Inch x 7 Inch LED Headlight in chrome, part number 55003, is a rectangular LED replacement headlight for light, medium and heavy-duty trucks, off-road vehicles, classic cars and motorcycles. Rigid Industries supplies it as a kit covering both headlights, so one package provides the pair.

The design is bulb-free and solid state, with metalized reflector optics and parabolic reflector technology for an even pattern across the driving surface. The LEDs give a brighter, whiter light closer to daylight color temperature, which improves projection distance and overall visibility. The housing is die cast aluminum and the lens is hard coated polycarbonate. The 5 x 7 inch rectangular format is not the common round size, so measure your existing headlight opening before choosing a match.

Key features

  • Bulb-free LED design with solid state components
  • Encapsulated circuitry sealed inside the housing
  • Parabolic reflector technology with metalized reflector optics
  • Die cast aluminum housing with a chrome finish
  • Hard coated polycarbonate lens
  • Built to hold up against shock and vibration.
  • Made in the USA, with a 3-year limited warranty

Fitting a rectangular headlight

Rectangular headlights sit in a different opening than the common round format, so mounting is the first thing to settle. Compare the lamp’s outline, bracket points and depth against your bucket before you commit. Many rectangular units need an adapter bracket or a slightly modified bezel, so a test fit with the lamp in position is the safest check.

LED lamps have no filament to replace, so the sealed housing is the main part to look after. The housing should sit square and the bezel should clear the hood and grille. Once the lamp is fixed in place, check beam height and side-to-side aim on a flat, level surface.

  • Measure the bucket depth and bezel opening
  • Confirm the bracket points line up
  • Check hood and grille clearance with the lamp fitted
  • Keep the lens clean and free of road grime

Specifications

Brand Rigid Industries
Part number 55003
UPC 849774001758
Size 5 Inch x 7 Inch
Finish Chrome
Housing Die cast aluminum
Lens Hard coated polycarbonate
Light source LED, solid state
Reflector Metalized, parabolic
Quantity Kit for both headlights
Warranty 3-year limited
Origin Made in the USA

Vehicle fitment

This headlight is sold as universal fit, but it is not built for one specific vehicle. Because the housing is a 5 x 7 inch rectangle rather than the common 7 inch round, check the bucket and bezel dimensions against your current lamp.

No year, make, model or chassis is named for this part. Confirm your vehicle’s year, model and trim before ordering.

Installation notes

Rectangular housings often need a bucket or bracket check rather than a direct swap, so test-fit the headlight before trimming or drilling anything. The circuitry is encapsulated, which means the electronics are sealed inside the housing.

What’s included

The package covers both headlights as a kit.

Not included: Mounting brackets and a wiring harness are not included.

SKU: RIG55003 Category:

Specification

Shipping weight 6.35 lbs
Package dimensions 13.10 × 7.10 × 6.90 in
brands

Questions & Answers

Is the Rigid Industries 55003 headlight a universal fit?

Not necessarily. The 5 x 7 inch rectangular housing differs from the common 7 inch round, so measure your existing bucket and bezel, and confirm your vehicle's year, model and trim before ordering.

What is the part number and UPC for this Rigid Industries headlight?

The Rigid Industries Truck-Lite 5 x 7 inch chrome LED headlight is part number 55003, with UPC 849774001758. It is sold as a kit covering both headlights, with a 3-year limited warranty.

What is the housing and lens made of?

The housing is die cast aluminum and the lens is hard coated polycarbonate. Rigid Industries also describes encapsulated circuitry and a bulb-free solid state LED design with metalized reflector optics.

Can a rectangular LED headlight go into a round bucket?

Usually not directly. A rectangular lamp needs a bucket or bracket that matches its outline, so an adapter or a modified mount may be required. Test-fit before cutting or drilling, and confirm the bezel clears the hood and grille.
