Overview

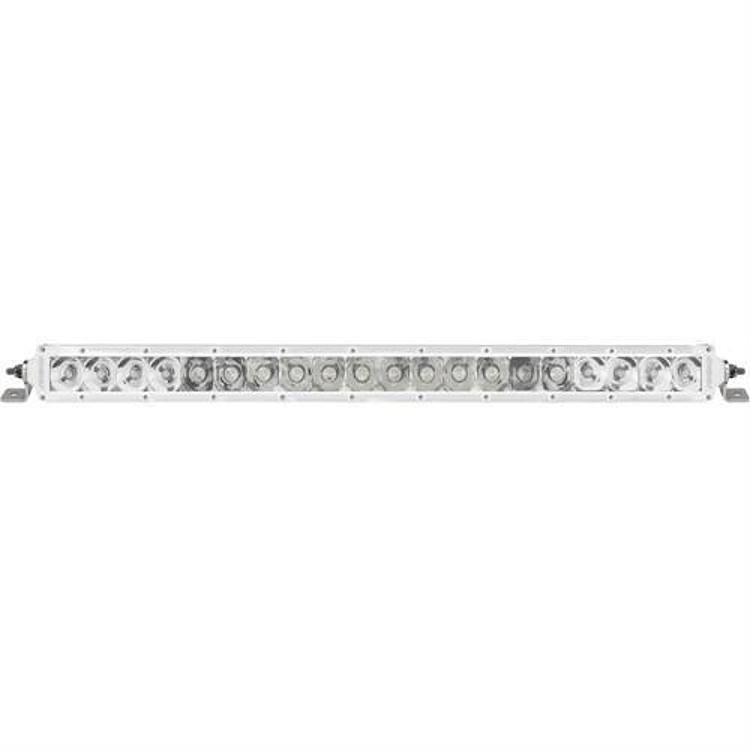

The Rigid Industries SR-Series Pro 20 Inch Light Bar, part number 320314, is a 20-inch LED bar with a Flood/Spot beam type, offered as a single bar. It is universal fit, so it is not built for one vehicle. Its slim single-row design fits spaces where clearance is limited, from off-road vehicles to industrial, agricultural and marine use.
The SR-Series PRO places its LEDs in one row and offers Hybrid or Specter optics across a range of beam patterns. RIGID says its updated LEDs deliver up to 111% more raw lumens. The housing is extruded aluminum finished in powder coat, available in black or white, and the bar is designed to project light at extreme distances while drawing little power.
Key features
- 20-inch single-row LED bar.
- Flood/Spot beam type.
- Hybrid or Specter optics available across beam patterns.
- Up to 111% more raw lumens.
- Extruded aluminum housing with a powder coat finish.
- Blacked-out circuit boards and refreshed branding.
- Low profile, under 2 inches tall.
Flood/Spot balance on a 20-inch bar
A 20-inch bar sits between short pods and full-width light bars, so its beam mix matters. A flood/spot setup gives a useful middle ground, with spread for close work and enough reach for the trail ahead. The bar length also sets how far the light reaches across a windshield or hood, so consider the width of the area you need to cover before choosing its mounting position.
Good results depend on mounting and maintenance. Keep the clear lens clean, since dirt on the front reduces what is thrown onto the surface. Recheck the brackets and wiring after rough trail use, and aim the bar so it lights the surface you need without shining into oncoming eyes. Chipped powder coat should be touched up to keep the aluminum housing protected.
- Clean the lens after mud runs
- Aim away from oncoming traffic
- Touch up chipped powder coat promptly
Specifications
| Brand | Rigid Industries |
|---|---|
| Part number | 320314 |
| UPC | 849774031588 |
| Type | Flood/Spot |
| Lens color | Clear |
| Bulb type | LED |
| Size | 20 Inch |
| Optics | Hybrid or Specter |
| Raw lumen increase | Up to 111% |
| Housing | Extruded aluminum |
| Finish | Black or white powder coat |
| Configuration | Single |
| Fitment | Universal Fit |
Vehicle fitment
The bar is universal fit, so no year, make or model applies. Its 20-inch length and mounting position decide whether it suits a particular spot, so measure the mounting area first.
Universal fit only. Confirm the 20-inch bar length against the space on your own vehicle or equipment.
Installation notes
Because this is a 20-inch unit, mount it on a flat, solid surface with clearance in front of the lens. Wire it through a fused relay and switch, and check local rules on auxiliary lighting before using it on public roads.
What’s included
Sold as a single bar. Check the package contents for brackets and hardware before installing.
Not included: Plan for wiring, a switch and a relay separately.
